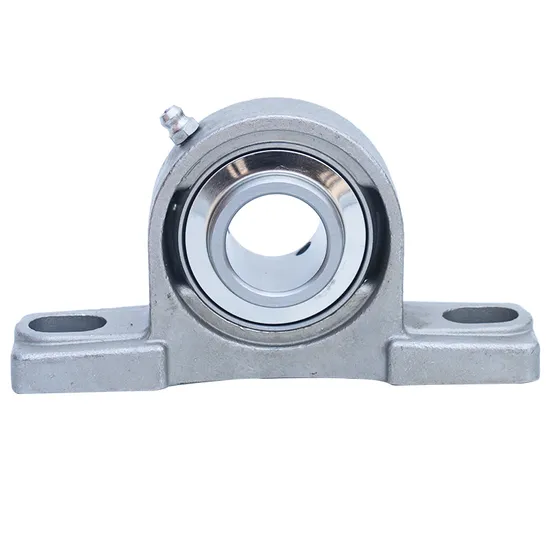

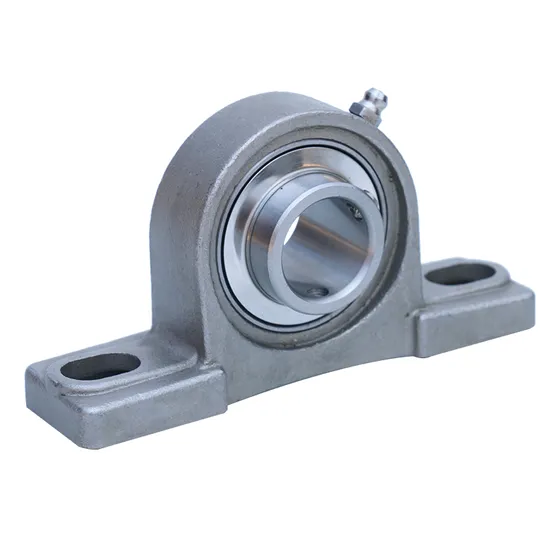

UC203 Spherical Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Failures Begin with Incorrect Bearing Selection — And How the SKF UC203 Solves It

Industrial maintenance teams report that 35% of early-stage pillow block failures stem from mismatched internal geometry, insufficient static load capacity, or inadequate sealing for ambient contamination — not material fatigue. A single unplanned stoppage in wind turbine yaw systems costs $22,000/hour in lost generation; in mining conveyors, it triggers cascading downtime across multiple shift cycles. Most suppliers provide catalog numbers without validating alignment tolerance, thermal expansion margins, or dynamic moment load distribution — and official channels require 8–12 weeks for modified UC203 housings with custom base plate drilling or extended grease nipples.

Engineered for Your Operating Conditions

The UC203 pillow block bearing is not selected — it is specified. As an official SKF engineering partner, our 15+ certified engineers perform full application analysis before quoting: calculating equivalent radial and moment loads per ISO 15242-2, modeling thermal growth at operating temperature, specifying optimal interference fit (H7/j6 or H7/k6 per ISO 286-1), and recommending relubrication intervals based on grease life per SKF TP 3000. Every solution complies with ISO 9001 and IATF 16949 quality controls — no exceptions.

Operating Environment and Performance Demands

In wind power yaw drives, the UC203 endures bidirectional moment loads up to 120 N·m, low-speed oscillation (0.1–2 rpm), and wide ambient temperature swings (–25°C to +55°C) while remaining inaccessible for 18 months. In mining vibrating feeders, it absorbs high-frequency shock pulses (≥50 g peak acceleration) and resists ingress of abrasive silica dust (particle size <10 μm) under continuous 24/7 operation. Steel plant applications demand resistance to condensation-induced corrosion and stable performance at surface temperatures up to 80°C. These are not generic requirements — they define the dimensional tolerances, seal lip geometry, and grease base oil viscosity required in each UC203 configuration.

Inside the Engineering: What Makes This Bearing Perform

The UC203’s 17 mm bore and spherical inner ring geometry allow ±2° misalignment compensation — critical where foundation settlement or thermal distortion exceeds 0.3 mm/m. Its pressed steel cage maintains ball guidance under moment loading where polymer cages deform above 80°C. The double-lip contact seal uses nitrile rubber (NBR) with a spring-energized secondary lip, achieving IP65-rated protection without increasing torque beyond 0.15 N·m — essential for low-power yaw motors. Standard C0 radial internal clearance is retained for normal temperature rise; C3 clearance is specified when ambient exceeds 60°C or housing material differs significantly from bearing steel. Precision grade P5 reduces vibration amplitude below 2.5 μm RMS at 1,500 r/min — verified per ISO 10816-3 Class A limits for gearbox-mounted equipment.

The True Cost of Bearing Failure

A counterfeit or incorrectly specified UC203 may deliver only 28% of rated L10 life (per ISO 281), leading to premature raceway spalling and catastrophic housing fracture under moment load. Non-planar mounting — common without proper housing flatness verification — increases edge stress by 3.7×, accelerating wear. Each hour of unplanned downtime in steel rolling averages $47,000 in direct loss plus contractual penalties. Total Cost of Ownership (TCO) calculations show that paying 12% more for a precision P5 UC203 with verified grease compatibility and engineered housing fit reduces 5-year maintenance cost by 39% — primarily through elimination of secondary damage to shafts and housings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC203 shipment includes an SKF Certificate of Conformity referencing original factory lot number, a Material Test Report (EN 10204 3.1), and a Dimensional Inspection Report (±0.01 mm tolerance verification). Original SKF packaging features holographic anti-counterfeiting labels with scannable QR codes linked to SKF’s global authenticity database. For orders ≥500 units, SKP-approved third-party inspection at SKF Gothenburg or Shanghai facility can be arranged prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your UC203 specification starts with data — not assumptions. Send us your actual operating parameters: applied radial and moment loads, oscillation angle and frequency, ambient and surface temperatures, housing material and machining tolerances, and required service interval. Within 48 hours, our engineering team delivers a validated selection report including calculated L10 and Lnm life, recommended fit class, seal type, grease type and relubrication interval, and optional housing modifications. For orders over $50,000, we supply fully tested samples — no upfront cost. Because correct bearing performance begins with precise engineering insight, not product catalogs.
