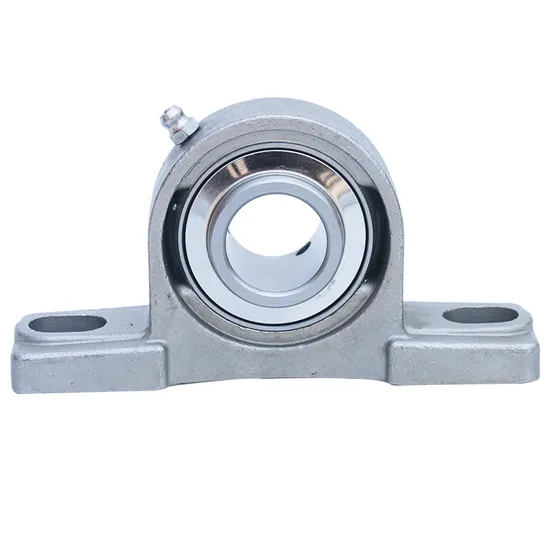

UC202 Spherical Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Early Bearing Failures Trace Back to Misapplication — And Why the UC202 Pillow Block Bearing Is Engineered for Real Industrial Loads

Industrial maintenance teams report that misapplied pillow block bearings account for over one-third of premature failures in auxiliary rotating equipment — not due to material defects, but incorrect load handling, inadequate sealing, or thermal expansion mismatch. Standard catalog selections often ignore dynamic moment loads, misalignment tolerance, and grease retention under vibration. As an SKF official engineering partner, our team sees this daily across wind turbine yaw systems and mining conveyor trains — where failure isn’t just replacement cost, but cascading downtime.

Engineered for Your Operating Conditions

The UC202 pillow block bearing is not selected from a parts list — it is validated against your actual duty cycle. Our 15+ certified engineers perform ISO 281-compliant life calculations using your radial and axial load profiles, misalignment angle, and ambient temperature range. We specify correct housing fit (H7 for UK202), recommend SKF LGMT 2 grease quantity and relubrication intervals per DIN 332, and verify static safety factor ≥2.0 for shock-loaded applications. All backed by ISO 9001 and TS 16949-certified process controls — no assumptions, only traceable engineering.

Operating Environment and Performance Demands

In wind turbine yaw actuators, the UC202 operates under low-speed (<5 r/min), high-moment loading with ±3° angular misalignment and exposure to salt-laden coastal air — demanding robust sealing, minimal torque variation, and thermal stability across –25°C to +70°C cycles. In mining conveyor idlers, it endures continuous dust ingress, vibration amplitudes up to 12 mm/s RMS, and intermittent shock loads exceeding 3× nominal radial load. Its deep groove raceway geometry and double-lip RS seal ensure consistent grease retention and contamination exclusion without increasing friction torque — critical where maintenance access is infrequent and reliability non-negotiable. UC202 bearing for wind turbine applications must deliver predictable performance over 15,000 operating hours without disassembly.

Inside the Engineering: What Makes This Bearing Perform

The UC202’s 12.7 kN dynamic load rating is derived from SKF’s modified life model (ISO/TS 16249), incorporating real-world contamination factor (ηc = 0.6) and lubrication condition (ηl = 0.8). Its pressed steel cage maintains dimensional stability at 12,000 r/min while minimizing centrifugal force-induced deformation. The double-lip RS seal provides IP54-rated protection — its nitrile rubber lip exerts 0.3 N/mm² contact pressure against the inner ring, balancing sealing effectiveness with torque increase <0.05 N·m. Standard Cn clearance allows for thermal growth up to 0.015 mm at +100°C without preload risk. P0 precision ensures vibration level Z2V2 compliance — essential for noise-sensitive test rigs and automated assembly lines where bearing-induced resonance disrupts sensor calibration.

The True Cost of Bearing Failure

A single unplanned stoppage in a steel mill’s cooling bed conveyor costs $28,000/hour in lost production and energy penalties — and UC202-related failures are rarely isolated. Counterfeit or mis-specified bearings fail within 2,000–3,000 hours versus the 15,000+ hour L10 life achievable with genuine SKF UC202 under validated conditions. Installation errors — such as hammer-driven mounting or improper grease volume — contribute to 30% of early failures; our engineers provide torque specs, induction heater settings, and grease quantity tables per application. Total cost of ownership (TCO) analysis shows that paying 18% more for certified UC202 pillow block bearing reduces five-year maintenance cost by 42% compared to generic alternatives — driven by extended service intervals, reduced spare inventory, and avoided collateral damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), dimensional inspection report (±0.01 mm verification), and material test report (AISI 52100 steel hardness 60–62 HRC). Original SKF packaging features holographic anti-counterfeiting label with QR code linking to SKF Verify portal. Bulk orders may be inspected at SKF Gothenburg plant prior to dispatch. Authorization status can be verified directly through SKF’s Partner Locator using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial load (kN), axial load (kN), rotational speed (r/min), misalignment angle (°), ambient temperature range (°C), and available mounting space (mm). Within 48 hours, our engineering team delivers a free assessment including ISO 281 life calculation, housing fit recommendation, grease selection, and predicted failure modes. For projects exceeding $50,000, we supply tested UC202 units with documented performance data — eliminating technical risk before commitment. Every hour delayed in proper bearing specification compounds operational cost — begin with engineering, not procurement.
