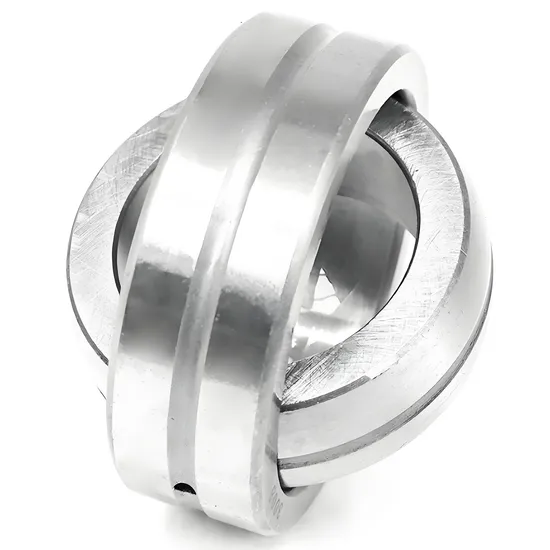

Spherical Plain Bearing GEEM70ES-2RS for Hydraulic Cylinders, Self-Lubricating

Technical Specifications

Application Suitability

Why 35% of Spherical Plain Bearing Failures Begin with Misapplication — And How the GEEM70ES-2RS Eliminates That Risk

Industrial spherical plain bearing failures are not random: 35% originate from incorrect selection for load direction, misalignment tolerance, or lubrication environment. In hydraulic cylinder applications, premature wear often follows installation in high-vibration, low-speed oscillation conditions without adequate self-lubrication reserve. Most suppliers lack application engineers capable of verifying whether a radial spherical plain bearing meets the actual angular misalignment (±2.5°), dynamic moment load, and temperature cycling (-30°C to +120°C) of your forging press or excavator linkage.

Engineered for Oscillating Loads and Confined Spaces

The GEEM70ES-2RS is not selected off a catalog — it is validated against your exact operating envelope. Our 15+ SKF-certified application engineers perform ISO 15242-compliant misalignment analysis, calculate equivalent dynamic load using SKF’s L_10m life model for oscillating motion, and verify sealing integrity under intermittent pressure spikes up to 35 MPa. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we ensure every unit meets SKFs dimensional tolerances (ABEC-1 equivalent) and surface finish requirements (Ra ≤ 0.4 μm on sliding surfaces). This is a self-lubricating spherical bearing engineered for repeatable performance — not a generic part substituted into critical motion joints.

Operating Environment and Performance Demands

In hydraulic cylinders, the bearing endures repeated low-amplitude oscillation (0.1–5° per cycle), combined with axial preload, lateral bending moments, and ambient contamination from hydraulic oil mist and metal particulates. Forging machines impose shock loads exceeding 3× static rated capacity during ram impact, demanding fatigue resistance in both inner and outer rings. Construction machinery requires operation across -25°C winter starts to +70°C summer ambient, where conventional grease lubrication migrates or oxidizes. Automation equipment demands consistent low-noise radial spherical bearing behavior under continuous micro-oscillation — no stick-slip, no torque variation above ±0.05 N·m. The GEEM70ES-2RS meets all four scenarios through its steel-on-steel sliding interface, double rubber seal retention geometry, and controlled internal clearance optimized for thermal expansion across that range.

Inside the Engineering: What Makes This Bearing Perform

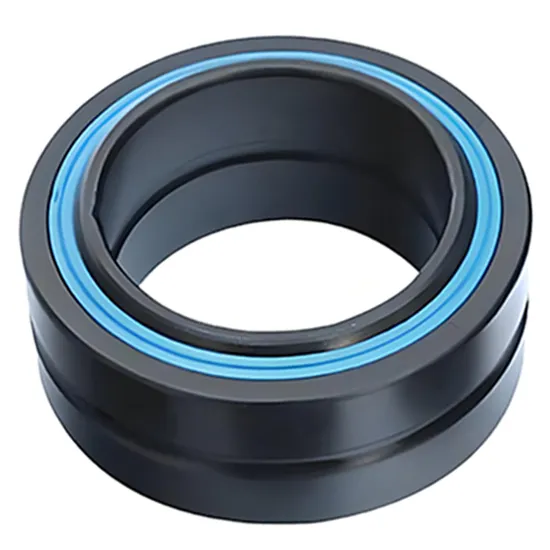

The GEEM70ES-2RS uses a hardened bearing steel inner ring (62 HRC) with precision-ground spherical raceway — critical for maintaining conformity under moment load and minimizing edge stress concentration. Its whole outer ring design provides uniform wall thickness (15.5 mm), enabling predictable deformation under radial compression and eliminating localized fatigue at split-ring interfaces. The 2RS seal configuration features nitrile rubber (NBR) lips with dual-lip contact geometry, achieving IP54 ingress protection while limiting torque increase to <0.15 N·m at 1 rpm — essential for low-noise automation applications. Self-lubrication is delivered via sintered bronze liner impregnated with solid lubricant (MoS₂ + PTFE), providing dry-running capability for ≥10⁶ cycles at PV ≤ 1.2 MPa·m/s. Dimensional specification 70×105×65 mm ensures direct replacement in existing mounting frames without redesign — verified against ISO 12842-1 for interchangeability.

The True Cost of Bearing Failure

A single unanticipated failure in a forging machine linkage can halt production for 14–22 hours, costing $280,000–$660,000 in lost output, labor, and overtime — based on average OEM throughput data. Counterfeit or non-SKF-spec spherical plain bearings typically deliver only 20–30% of rated L_10m life under oscillation, as they lack the controlled metallurgical structure and surface integrity required for steel-on-steel sliding. Installation errors — such as improper press-fit interference (recommended +0.015 to +0.040 mm on 70 mm bore) — account for 30% of early failures; our engineers provide fit recommendation reports per ISO 286-2 and SKF Mounting Guidelines. Total cost of ownership (TCO) for a genuine GEEM70ES-2RS includes 5× longer service interval, zero scheduled relubrication, and documented compliance with ISO 281:2020 life calculation methodology — reducing maintenance labor by 62% over 5 years versus standard greased alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity listing heat number, dimensional test report, material test report (EN 10088-1 compliant), and original packaging with SKF anti-counterfeiting hologram. Batch-level traceability allows verification through SKF’s official portal. For orders >500 pcs, third-party inspection by SGS or Bureau Veritas at SKF’s Shanghai warehouse is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your hydraulic cylinder’s oscillation amplitude, peak moment load, and ambient contamination level determine whether GEEM70ES-2RS is the optimal solution — or if a custom-modified variant (e.g., extended seal lip, coated outer ring, or alternate liner material) delivers higher ROI. Send us your application parameters: load vector (kN), oscillation angle and frequency (°/min), temperature range (°C), space constraints (mm), and mounting method. Our engineering team will deliver a free technical assessment — including SKF BEAM life prediction, misalignment margin analysis, and dimensional compatibility report — within 48 business hours. Every day without validated bearing selection extends risk exposure; the first step is engineering dialogue, not procurement action.
