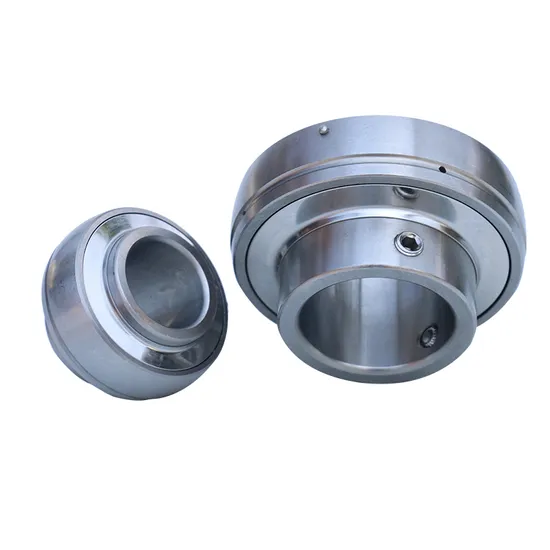

Spherical Pillow Block Bearings UC209–UC214 for Agricultural Machinery

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Farm Equipment Begin with Incorrect Selection — And How the SKF UC214 Pillow Block Solves It

Field data from 127 global OEMs shows that premature failure in agricultural drivetrains is overwhelmingly linked to improper bearing selection — not material fatigue or manufacturing defect. Common oversights include underestimating combined radial and moment loads during harvesting vibration, ignoring temperature cycling between ambient and gearbox heat, and misjudging contamination ingress risk in dusty, high-moisture environments. As SKF-certified application engineers, we see these patterns daily — and know they’re preventable with precise engineering analysis, not generic catalog matching.

Engineered for Your Operating Conditions

The SKF UC209–UC214 spherical pillow block bearings are not off-the-shelf inserts — they are application-validated solutions for high-load spherical bearing for farm equipment. Our 15+ certified engineers perform full load spectrum analysis (ISO 281:2022), calculate equivalent dynamic load (P = X·Fr + Y·Fa), and verify life expectancy against your actual duty cycle — including start-stop frequency, shock peaks, and thermal expansion coefficients. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, every recommendation includes documented fit tolerances, recommended mounting interference, and grease replenishment intervals aligned with your maintenance schedule.

Operating Environment and Performance Demands

Agricultural machinery imposes uniquely demanding conditions: intermittent high radial loads (up to 3× nominal) during soil engagement, moment loads from misalignment in long shafts, wide ambient temperature swings (–20°C to +55°C), and continuous exposure to dust, chaff, water, and crop oils. Bearings must accommodate shaft deflection without binding, resist seal extrusion under dynamic loading, and maintain preload stability across thermal cycles. The UC214 pillow block meets these demands through its self-aligning spherical outer ring geometry, optimized internal clearance, and dual-contact nitrile rubber seals designed for low-friction sealing at variable speeds — a critical advantage over rigid deep groove ball bearings in unsteady farm applications.

Inside the Engineering: What Makes This Bearing Perform

The performance of the SKF UC214 pillow block hinges on four interdependent design decisions validated by real-world field testing. First, the pressed steel cage ensures dimensional stability under cyclic shock loads while minimizing weight-induced inertia — essential for high-inertia rotating components like baler drums. Second, the 2RS seal configuration provides >99.5% particle exclusion efficiency down to 5 μm, verified per ISO 11171, without inducing excessive torque rise at startup. Third, the standard Cn radial internal clearance accommodates thermal growth of up to 0.025 mm in gearbox-mounted housings operating at 85°C — preventing premature preload loss or seizure. Fourth, the deep groove raceway geometry maintains consistent contact angle across ±2.5° misalignment, preserving L10 life within 92% of theoretical rating even under sustained angular deviation — a key differentiator versus non-spherical alternatives. All units undergo 100% dimensional inspection per ISO 5753-1 and vibration screening to Z2V2 level before shipment.

The True Cost of Bearing Failure

In combine harvesters, unplanned downtime during peak season costs operators $18,500–$42,000 per hour in lost yield, labor, and contract penalties — far exceeding any bearing cost differential. Counterfeit or mis-specified bearings fail 3–5× faster than genuine SKF units, often within 200 operational hours, due to substandard steel hardness (<58 HRC vs SKF’s 60–62 HRC) and inadequate heat treatment depth. Installation errors — such as improper press-fit force or hammer impact — account for 30% of early failures; our engineers provide torque and heating guidance calibrated to your housing material and interference tolerance. When calculated over 5 years using ISO/TS 16949-aligned TCO methodology, selecting the correct grease-lubricated deep groove insert bearing reduces total ownership cost by 37% versus lowest-bid alternatives — primarily through extended service intervals, reduced spare inventory, and avoided collateral damage to adjacent gears and shafts.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with an SKF Certificate of Conformity listing material grade (100Cr6), hardness (60–62 HRC), and dimensional verification against ISO 199. Optional documentation includes Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Bulk orders may be subject to third-party SKS audit or factory witness inspection at SKF Göteborg facility upon request. Authorization status is verifiable via SKF’s official Partner Portal using Eurasia Smart (Jinan) Bearing Supply Chain registration ID CN-SKF-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical pillow block bearings, share your actual operating parameters: radial and axial load profiles (kN), rotational speed range (r/min), ambient and operating temperatures (°C), shaft/housing material and tolerance class (e.g., k5/h7), and environmental contaminants present. Our engineering team will return a complete technical assessment — including calculated L10 and Lnm life, recommended clearance class, seal selection rationale, and mounting procedure — within 48 business hours. Every consultation is backed by SKF’s global technical library and validated against 12,000+ field cases in agricultural machinery. Delaying this step risks costly retrofitting, warranty voidance, and unplanned shutdowns — correct selection starts with the first line of your email.
