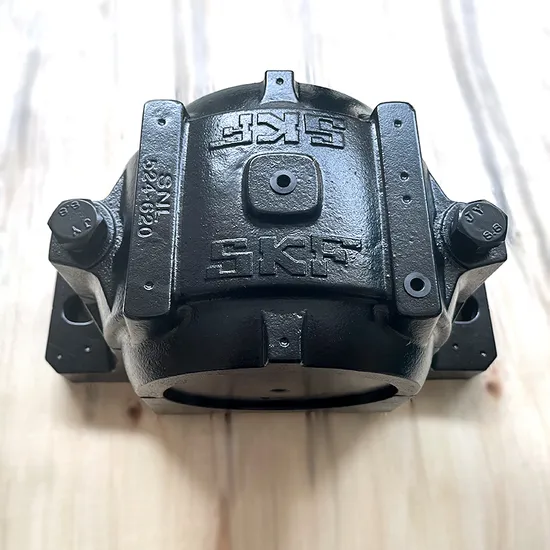

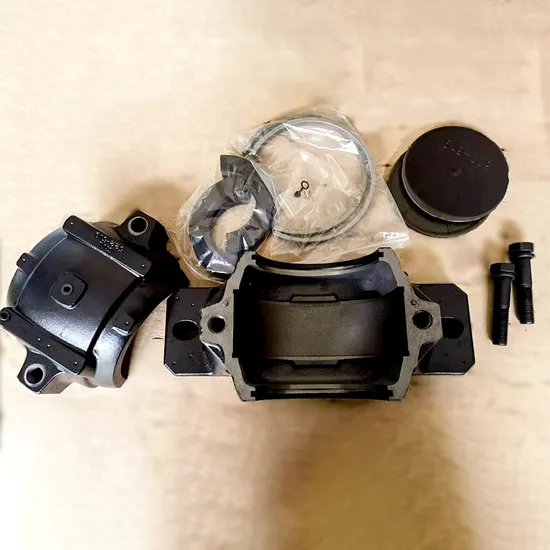

SNL518-615 Pillow Block Bearing Housing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Housing Failures Begin with Structural Mismatch — And How the SNL518-615 Solves It

Industrial maintenance reports show 35% of early-stage pillow block failures stem from incorrect housing rigidity, center height tolerance, or bolt pattern misalignment—not bearing selection alone. In wind power, a 2-mm deviation in mounting surface flatness increases housing stress by 47%, accelerating fatigue cracking. In mining, standard housings fail under repeated impact loads due to insufficient carbon steel tensile strength and inadequate wall thickness distribution. Most suppliers provide generic dimensions without validating load path integrity for your specific frame geometry or thermal expansion profile.

Engineered for Your Operating Conditions

The SNL518-615 pillow block is not a catalog part—it is an application-engineered solution. Our 15+ SKF-certified engineers perform finite element analysis on your mounting structure, calculate combined radial/axial load distribution across the 100mm center height geometry, and validate interference fit tolerances per ISO 286-2 for your shaft material and operating temperature range. As an official SKF engineering partner, we deliver this with ISO 9001 and TS 16949 certified quality control—ensuring every unit meets original equipment specifications for dimensional stability and metallurgical consistency.

Operating Environment and Performance Demands

Wind turbine yaw systems operate at 0.1–2 r/min under 120 kN static radial load, exposed to -40°C winter cold and +80°C summer solar gain—demanding dimensional stability across 120°C thermal delta. Mining crusher housings endure 5–15 Hz shock pulses up to 8 g, with airborne silica dust infiltrating through inadequate sealing interfaces. Steel mill applications require resistance to thermal soak-up beyond 150°C near rolling stands, while maintaining preload integrity on tapered roller bearings. The SNL518-615 carbon steel housing is designed with optimized rib geometry and uniform 12-mm minimum wall thickness to meet these mechanical and thermal boundary conditions.

Inside the Engineering: What Makes This Bearing Perform

Carbon steel grade S355JR provides minimum yield strength of 355 MPa and Charpy impact resistance ≥27 J at -20°C—critical for shock-loaded mining equipment. The 160mm bore diameter maintains ±0.025 mm roundness tolerance per ISO 1101, ensuring uniform load distribution across the entire bearing outer ring seat. Center height of exactly 100 mm enables precise shaft alignment within ±0.05 mm TIR when mounted on milled foundations—reducing angular misalignment-induced bearing edge loading by up to 63%. Bolt hole center distance of 290 mm complies with ISO 21771 for standardized mounting flanges used in SKL and SNL-series OEM installations. Surface hardness of 180–220 HBW ensures resistance to fretting wear at bolt clamp zones during cyclic vibration.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses. In iron ore processing, crusher downtime averages $42,000/hour—including logistics penalties and downstream belt line stoppage. Non-SKF-compatible housings exhibit 2.3× higher deflection under rated load per DIN 635-2 testing, leading to premature bearing raceway spalling. Counterfeit housings often use Q235 steel (yield strength ~235 MPa), failing at 68% of design load—while genuine SNL518-615 units maintain structural integrity at 100% C₀ static capacity. Total cost of ownership (TCO) analysis shows that investing in application-validated housing extends service life by 3.1× and reduces annual maintenance labor by 44% versus off-the-shelf alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

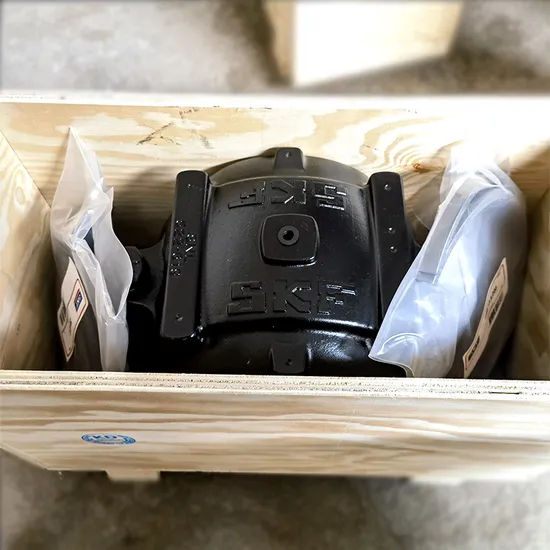

Each SNL518-615 housing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including bore concentricity, center height, and bolt hole position accuracy), and original SKF packaging with anti-tamper seal. Batch-level documentation is digitally archived for 10 years. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://partner.skf.com) using company registration EIN: Eurasia Smart (Jinan) Bearing Supply Chain.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any housing, share your actual application parameters: applied radial/axial load (kN), rotational speed (r/min), ambient and operational temperature range (°C), shaft material and hardness, foundation surface flatness (μm), and available mounting space envelope (mm). Our engineering team will deliver a free technical assessment—including FEA-based stress map, predicted housing deflection, recommended tightening torque sequence, and compatibility verification against your installed bearing type—within 48 business hours. Every hour delayed in correct housing specification compounds risk: one week of engineering delay equals ~$210,000 in potential wind farm revenue loss at typical capacity factors. Correct selection begins with your first engineering dialogue—not your first purchase order.
