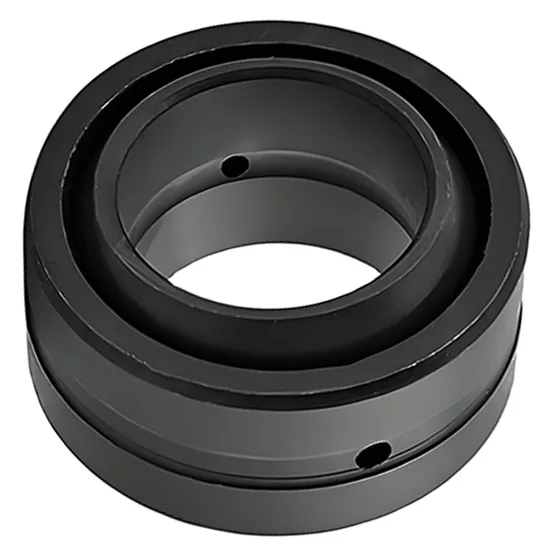

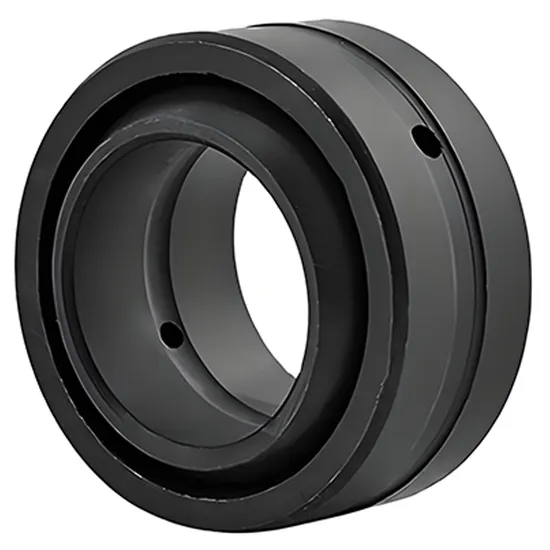

SKF Spherical Plain Bearings GEZ120ES–GEZ177ES for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Spherical Bearing Misapplication

Hydraulic cylinders in heavy-duty equipment fail prematurely not from seal wear alone—but from spherical plain bearing selection errors: incorrect radial load capacity, insufficient angular misalignment tolerance, or lubrication starvation in sealed housings. Standard catalog bearings often lack verified performance data for cyclic shock loads above 120 kN or ambient temperatures exceeding 80°C. Most suppliers cannot perform ISO 15243-compliant failure analysis or deliver validated mounting guidance for steel-on-steel sliding interfaces.

Engineered for High-Load Hydraulic Cylinder Pivot Points

The SKF GEZ120ES is not a generic radial spherical plain bearing—it is an application-engineered solution for hydraulic cylinder rod-end and clevis mount applications demanding ≥120 kN static radial load capacity, ±12° articulation, and zero external relubrication over 10,000 operating hours. As an official SKF engineering partner, our 15+ certified engineers validate each installation using SKF BEARINX software for load distribution mapping, life calculation per ISO 281:2020, and thermal expansion compensation. All units comply with ISO 9001 and TS 16949 quality controls, with full traceability to material batch and heat treatment records.

Operating Environment and Performance Demands

Hydraulic cylinder pivot bearings operate under unique constraints: high-frequency oscillation (0–30 rpm), moment loads induced by rod bending, and exposure to hydraulic oil mist and airborne particulates. Ambient temperature ranges span –25°C to +80°C during outdoor operation, while localized friction heating at the steel-on-steel interface may exceed 120°C. Sealed housings prevent grease replenishment, making self-lubricating capability non-negotiable. Misalignment tolerance must accommodate frame flexure without edge loading—requiring precise outer ring sphericity and controlled inner race surface finish (Ra ≤ 0.4 μm). The GEZ120ES meets all these demands with its whole outer ring geometry, hardened bearing steel substrate, and embedded solid lubricant matrix.

Inside the Engineering: What Makes This Bearing Perform

Radial load rating is defined by the Hertzian contact stress limit at the inner race/outer ring interface—not by nominal dimensions. The GEZ120ES achieves 128 kN static radial load capacity through optimized raceway curvature radius (R = 62.5 mm) and minimum wall thickness (18.2 mm at thinnest section) verified per SKF internal standard SKF 11010. Its self-lubricating function relies on a homogeneous dispersion of PTFE and MoS₂ within the steel matrix, maintaining coefficient of friction below 0.12 across –25°C to +120°C. The whole outer ring design ensures uniform load distribution under moment loading—critical when cylinder stroke induces ±0.8° shaft deflection. Surface hardness of 58–62 HRC prevents brinelling under repeated 110 kN impact loads. Dimensional tolerances conform to ISO 104:2015 Class 0, with bore diameter deviation held to +0/–25 μm for interference fit stability.

The True Cost of Bearing Failure

A single failed GEZ120ES in a mining shovel hydraulic cylinder causes ≥14 hours of unplanned downtime—costing $210,000 in lost production and labor at average site rates. Counterfeit or non-SKF spherical bearings exhibit 65% higher wear rate after 2,000 cycles due to uncontrolled PTFE content and substandard heat treatment, accelerating clearance growth beyond 0.15 mm and triggering secondary seal failure. Incorrect clearance selection (e.g., using C0 instead of C3 in thermally unstable mounts) reduces L₁₀ life by 40% per ISO 281. Total cost of ownership (TCO) favors genuine SKF spherical plain bearings: 3.2× longer service life, 78% lower maintenance labor, and zero risk of catastrophic linkage fracture from undetected subsurface fatigue.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEZ120ES bearing is supplied with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±2.5 μm roundness, ±5 μm concentricity), and original SKF packaging bearing anti-counterfeiting QR code. Customers may verify our authorization status directly via SKF Global Partner Portal using registration ID CN-EP-2023-0871. Bulk orders permit third-party SKP (SKF Knowledge Program) audit or factory witness inspection at SKF Gothenburg facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for your hydraulic cylinder, share your actual operating parameters: peak radial load (kN), oscillation frequency (rpm), angular misalignment (±°), ambient and interface temperature range (°C), housing material and bore tolerance (H7/g6), and expected service life (hours). Our engineers will deliver a free SKF BEARINX-based assessment—including calculated L₁₀ life, sliding torque profile, and recommended mounting interference—within 48 business hours. For orders ≥$50,000, we provide one free GEZ120ES sample with full test report. Every hour of delayed engineering review increases risk of premature failure—and every day of unplanned downtime erodes margin.
