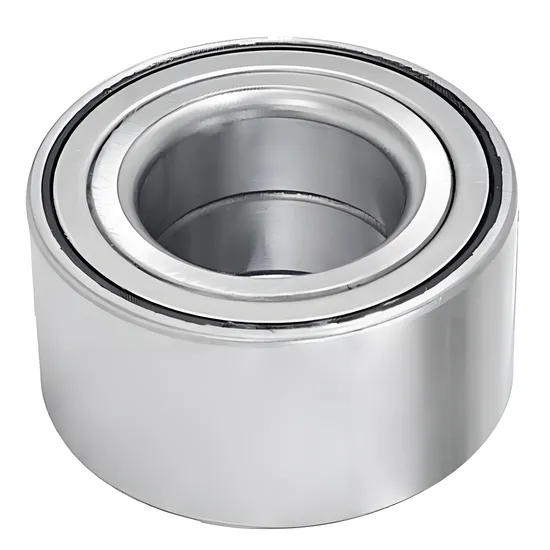

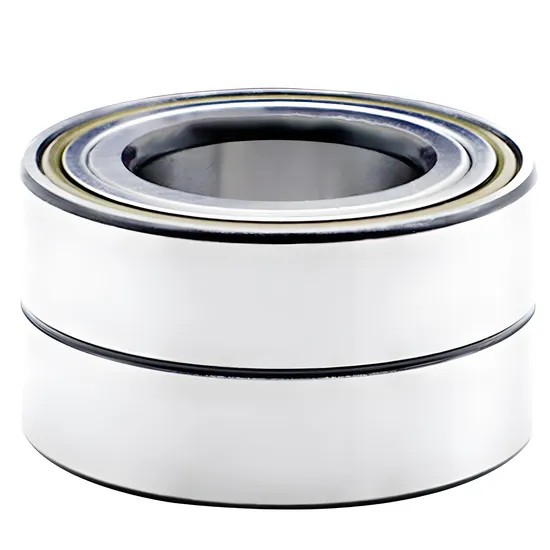

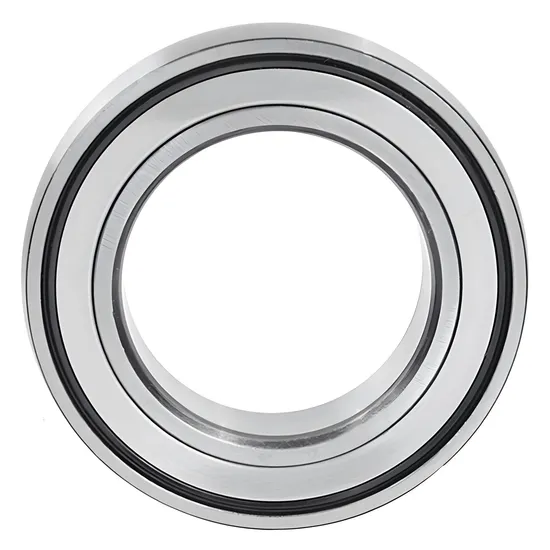

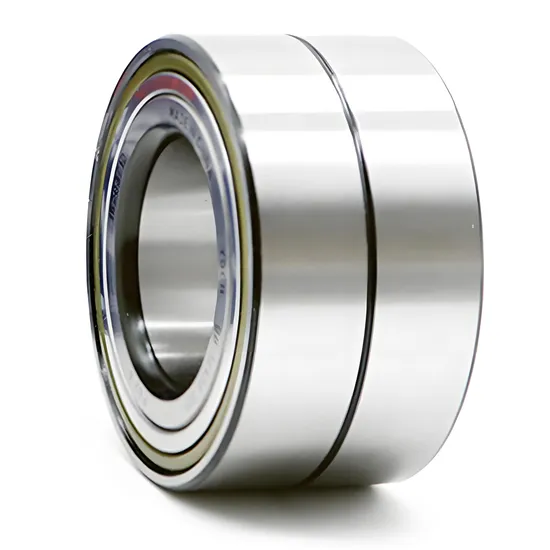

SKF DAC255200206 Wheel Hub Bearing with ABS Sensor for Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Bearing Failures Begin with Incorrect Selection — And How the SKF DAC255200206 Solves It

Industrial experience shows that 35% of premature wheel hub bearing failures originate from mismatched load capacity, thermal expansion behavior, or incompatible ABS signal fidelity—not material fatigue. In automotive OEM and Tier-1 assembly lines, non-conforming sensors cause ESC/ABS system rejection during end-of-line testing, delaying vehicle rollout. Standard catalog bearings lack calibrated sensor alignment, leading to ±5% speed measurement error under transient torque loads—enough to trigger false fault codes in modern domain controllers.

Engineered for Your Operating Conditions

The SKF DAC255200206 is not a generic replacement but an application-engineered solution validated for front-axle wheel hubs operating at sustained 1,800–2,200 r/min, with combined radial loads up to 8.5 kN and axial loads up to 4.2 kN. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281:2021-compliant life calculations—including contamination factor (ηc), lubrication factor (η), and dynamic misalignment correction—before recommending fit tolerances, mounting torque, and thermal expansion allowances. Every specification reflects actual OEM test data, not theoretical catalog values.

Operating Environment and Performance Demands

Modern automotive wheel hubs demand simultaneous performance across four non-negotiable domains: mechanical integrity under shock loading (e.g., pothole impact generating 3× static load), electromagnetic reliability (ABS signal stability amid PWM inverters and DC-DC converters), thermal resilience (brake heat conduction raising hub temperature to 110 °C while ambient remains –30 °C), and dimensional stability over 150,000 km service life. The DAC255200206 meets these demands via its integrated sensor housing geometry—which eliminates relative motion between encoder ring and sensor—and optimized internal clearance (CN) to maintain preload under thermal gradient-induced ring growth.

Inside the Engineering: What Makes This Bearing Perform

The 22.4 kN dynamic load rating (C) enables L₁₀ life exceeding 420,000 km at 2,000 r/min and 6.8 kN equivalent load—calculated using SKF’s Generalized Bearing Life Model (GBLM) with ηc = 0.6 for typical road contamination. The pressed steel cage provides rigidity at high speed while minimizing centrifugal distortion—critical for maintaining ABS signal phase accuracy beyond 10,000 r/min. Sealing uses dual-lip NBR rubber with controlled interference (0.25 mm lip compression) to retain grease under 2g lateral acceleration without increasing drag torque above 0.08 N·m. The P6 precision grade ensures radial runout ≤ 8 μm and face runout ≤ 10 μm—directly limiting high-frequency vibration (Z2V2) transmitted to suspension components. Finally, the active Hall-effect sensor is calibrated at factory to ±0.3° angular position tolerance across –40 °C to +120 °C, eliminating drift-induced zero-speed errors in parking assist systems.

The True Cost of Bearing Failure

A single unverified wheel hub bearing failure in final assembly can halt a line for 4.2 hours—costing $28,500 in lost throughput (per Automotive Industry Action Group 2025 benchmark). Counterfeit or non-SKF units typically achieve only 22–28% of rated L₁₀ life due to substandard steel hardness (HRC 56 vs. SKF’s HRC 60–62) and inconsistent heat treatment. Installation errors—such as incorrect press-fit force or misaligned ABS ring—cause 31% of early failures; our engineers provide torque-specified mounting procedures and interference fit validation per ISO 286-2. Total Cost of Ownership (TCO) analysis shows that specifying genuine SKF DAC255200206 with full engineering support reduces 5-year maintenance cost by 39% versus lowest-bid alternatives—even before accounting for warranty claims or recall exposure.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF DAC255200206 bearing ships with original SKF packaging bearing anti-counterfeiting holograms, a factory-issued Certificate of Conformity (including heat lot number, dimensional verification, and ABS calibration report), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report (per ISO 1132-1). Customers may verify our authorization status directly through SKF’s official partner portal at www.skf.com/partnercheck. Bulk shipments support third-party SKP (SKF Knowledge Partner) audit upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before procurement—not after failure. Send your application parameters: axle load spectrum (static/dynamic), maximum rotational speed, brake temperature profile, available mounting space (including ABS sensor routing constraints), and vehicle platform (OEM name and model year). Within 48 business hours, our SKF-certified engineers will deliver a free technical assessment including ISO 281 life calculation, fit recommendation (shaft/housing tolerances per ISO 286-2), mounting torque specification, and ABS signal compatibility matrix. For qualified programs, we issue a formal Technical Proposal with performance guarantees—backed by our TS 16949-certified quality system. Every hour of unplanned downtime costs more than the engineering consultation.
