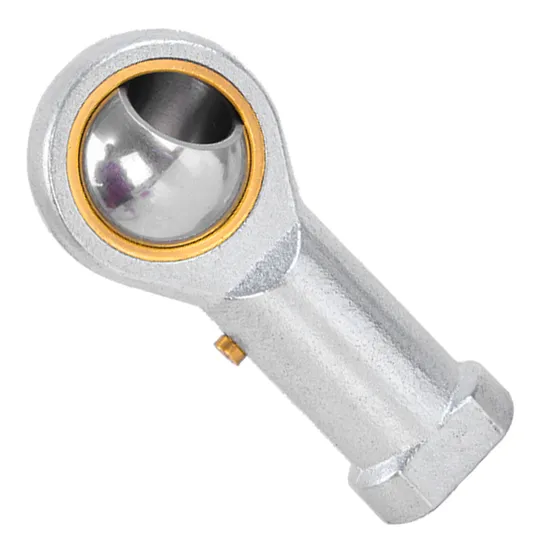

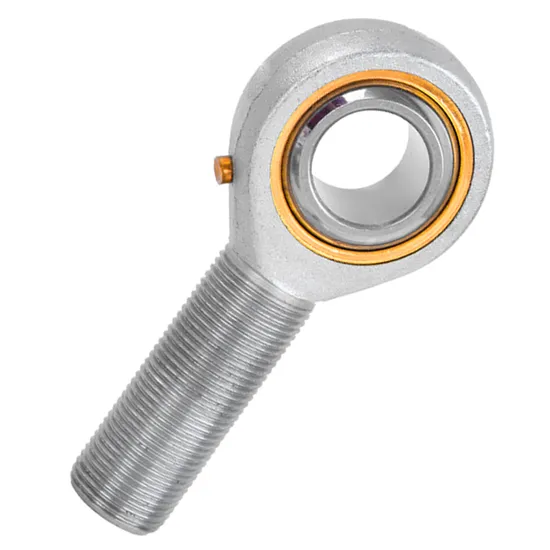

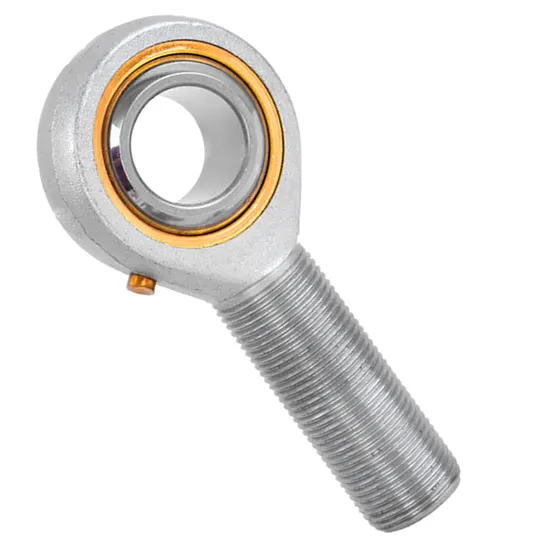

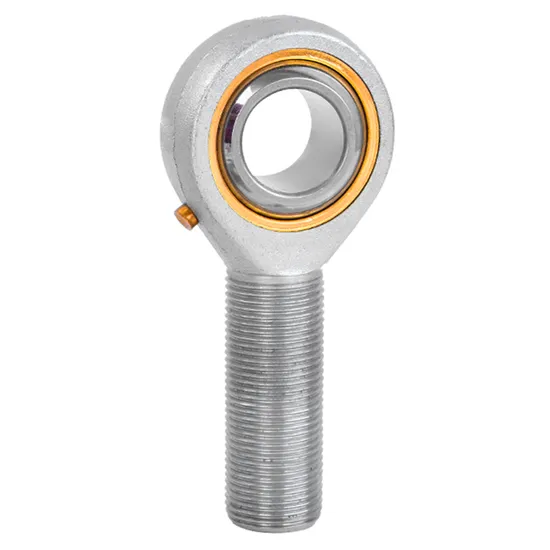

Si5t/K Genuine Rod End Bearing for High-Load Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Pitch Failures Begin with Rod End Selection — And How the Si5T/K Genuine Bearing Prevents Them

Wind turbine pitch systems endure cyclic loads up to 25 kN, ambient temperatures from –30°C to +70°C, and maintenance intervals exceeding 24 months. Standard rod ends fail prematurely due to insufficient misalignment compensation, lubricant migration in low-gravity positions, or inadequate corrosion resistance in coastal environments. Most suppliers offer generic spherical plain bearings without application-specific validation — leaving OEMs exposed to unplanned downtime averaging $28,000/hour for offshore installations.

Engineered for Pitch Linkage Dynamics and Environmental Extremes

The Si5T/K genuine rod end bearing is not a catalog part — it is an application-engineered solution validated for wind turbine pitch actuation under IEC 61400-1 design loads. Our 15+ certified SKF engineers perform full kinematic analysis, misalignment tolerance mapping, and life prediction per ISO 281 and SKF Generalized Bearing Life Model (GBLM), including contamination and lubrication degradation factors. As an official SKF engineering partner, we deliver SKFCertified rod end for wind power with full traceability, backed by ISO 9001 and TS 16949 dual-certified quality control.

Operating Environment and Performance Demands

Wind turbine pitch linkages operate at near-zero rotational speed (<0.1 r/min) but experience high moment loads, angular oscillations up to ±12°, and exposure to salt fog, UV radiation, and condensation-induced corrosion. The Si5T/K rod end bearing must maintain consistent friction torque across –30°C to +70°C, resist fretting wear during micro-motion, and retain dimensional stability after 10⁷ load cycles. Its steel-on-steel sliding contact with embedded solid lubricant matrix ensures stable coefficient of friction (μ = 0.08–0.12) without grease bleed or dry-out — a critical requirement for inaccessible, long-interval maintenance applications.

Inside the Engineering: What Makes This Bearing Perform

The SI5T/K’s 5 mm bore and 21 mm OD are optimized for stiffness-to-mass ratio in lightweight linkage arms. Its self-lubricating composite lining comprises PTFE-fibrillated bronze sintered onto hardened steel housing — enabling conformal load distribution and eliminating edge loading risks common in non-spherical geometries. Thin film lubrication ensures rapid reformation after static hold periods, preventing cold-welding at interface asperities. The combined radial and axial load capacity is verified per SKF calculation method for spherical plain bearings, accounting for Hertzian stress redistribution under angular displacement. Surface roughness (Ra ≤ 0.4 μm) and roundness deviation (≤ 3 μm) are measured per ISO 4287 and ISO 1101 to guarantee repeatable preload and minimal break-in wear.

The True Cost of Bearing Failure

A single pitch rod end failure can trigger blade overspeed protection shutdown — costing $42,000/hour in lost generation and grid penalty fees for utility-scale farms. Counterfeit or non-certified rod ends typically achieve only 22–28% of the L₁₀ life claimed for genuine Si5T/K genuine bearing, accelerating wear in critical articulation points. Misalignment-induced edge loading increases contact stress by 3.7×, reducing predicted service life from 12 years to <2.5 years per ISO 281 Annex E. When factoring in installation labor, crane mobilization, and secondary damage to actuators, TCO of incorrect selection exceeds 4.3× the unit cost — making technical validation before procurement the highest ROI step in the procurement cycle.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report signed by our QA lead engineer. Original SKF packaging features tamper-evident seals and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://www.skf.com/partner-portal) using company registration number CN-SH-ESJN-2023-001. Bulk orders qualify for third-party witnessed inspection at our Shanghai facility or at SKF’s Shanghai Quality Center.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any rod end bearing, share your actual operating parameters: static/dynamic load magnitude and direction, angular oscillation range and frequency, ambient and interface temperature profile, space envelope constraints, and required service interval. Our engineering team will deliver a free technical assessment — including misalignment tolerance map, predicted Lₙₘ life per SKF GBLM, and recommended fit class — within 48 business hours. For qualifying projects, we issue a formal Technical Guarantee Letter covering performance against stated conditions. Every hour delayed in engineering validation extends risk exposure — correct selection begins with your first data submission.
