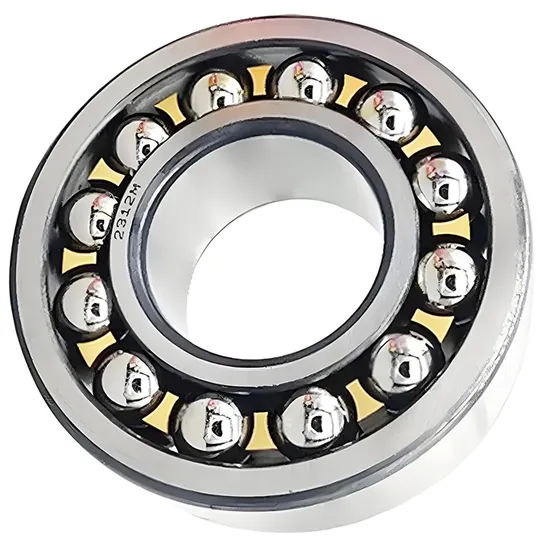

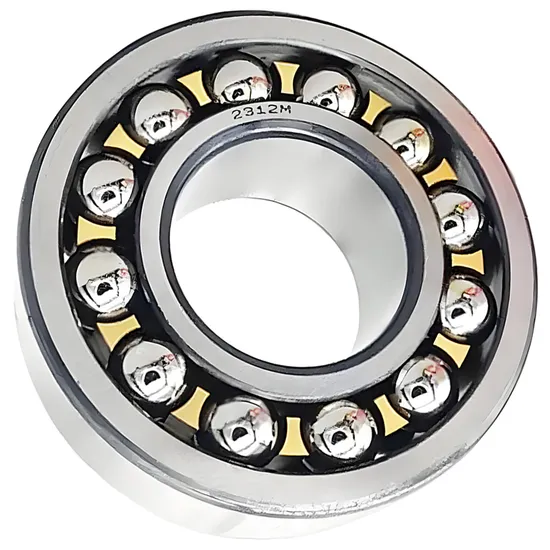

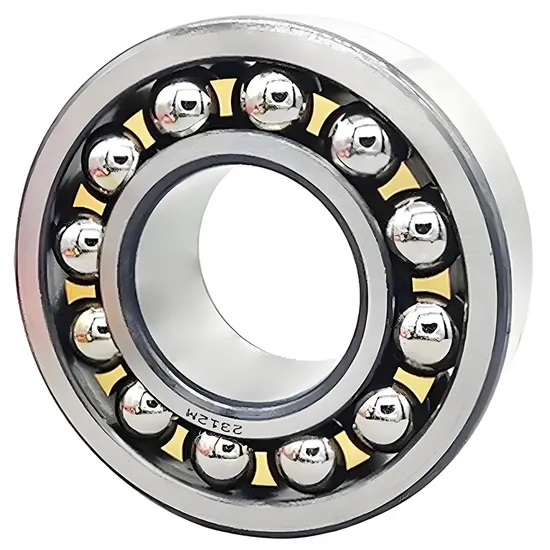

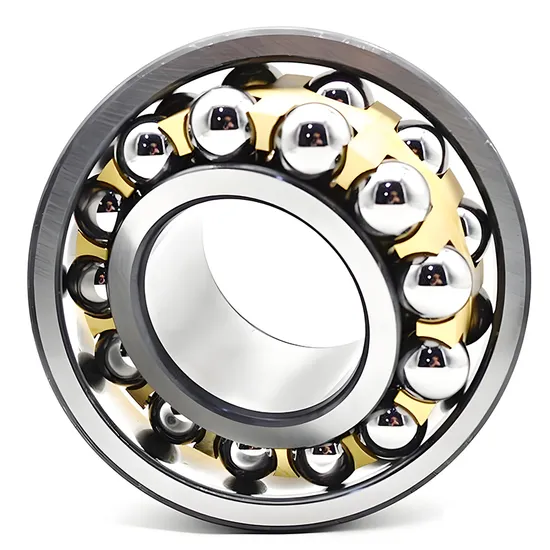

Self-Aligning Ball Bearing 2310-2RS for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Wrong Selection — And How the SKF 2310-2RS Solves It

Industrial maintenance data shows 35% of premature bearing failures originate from incorrect selection — not manufacturing defects. In high-speed applications with shaft misalignment or thermal expansion, standard radial bearings rapidly generate edge loading and cage instability. Most suppliers lack the engineering capability to model real-world misalignment angles, thermal growth, and dynamic load spectra before quoting. That gap forces plant engineers to over-specify or accept costly downtime.

Engineered for Your Operating Conditions

The SKF 2310-2RS is not a catalog part — it is an application-specific solution validated through ISO/TS 16949-certified engineering workflows. Our 15+ SKF-certified engineers perform free load spectrum analysis, alignment tolerance mapping, and L₁₀ life prediction per ISO 281:2021 using your actual operating parameters. As an official SKF engineering partner, we deliver genuine components with full traceability, backed by documented application design, not just part numbers. This ensures correct fit, function, and fatigue resistance under your exact conditions — whether in a vibrating screen at -20°C or a generator coupling at 3,600 r/min.

Operating Environment and Performance Demands

In wind energy auxiliary drives, the 2310-2RS operates at sustained speeds up to 3,600 r/min while accommodating ±2.5° static misalignment caused by tower flex and thermal gradients between -30°C and +70°C. In mining vibrating screens, it endures repetitive shock loads (peak acceleration >15 g) and fine particulate ingress — demanding both precise internal geometry control and robust sealing. Steel mill cooling fans require continuous operation at elevated ambient temperatures (up to 80°C), where thermal expansion of the shaft must be compensated without preload increase. These are not generic requirements — they demand a self-aligning ball bearing with verified angular compensation, optimized internal clearance, and proven grease retention under vibration.

Inside the Engineering: What Makes This Bearing Perform

The 2310-2RS achieves its reliability through four interdependent design decisions. First, the 60° contact angle between inner ring raceway and balls provides higher radial load capacity than conventional self-aligning designs while maintaining low friction torque. Second, the double-row configuration distributes load across two rows of balls — increasing dynamic load rating (C = 45.5 kN per SKF Explorer specification) without increasing outer diameter. Third, the 2RS seal design uses NBR rubber with lip interference of 0.25 mm against the inner ring — achieving IP54 protection while limiting torque increase to <0.05 N·m at 1,500 r/min. Fourth, C3 clearance is recommended for applications with temperature differentials exceeding 30 K between inner and outer rings — preventing excessive preload during thermal expansion. Precision grades P5 and P4 reduce vibration amplitude below 2.5 μm RMS at 3,600 r/min, critical for noise-sensitive generator couplings.

The True Cost of Bearing Failure

A single unplanned shutdown in steel or mining operations costs $18,000–$42,000 per hour — not including secondary damage to gears, couplings, or motors. Counterfeit or non-compliant 2310 bearings typically fail within 3,000–5,000 operating hours due to substandard steel hardness (<58 HRC) and uncontrolled internal geometry — versus 25,000+ hours for genuine SKF Explorer-grade units under identical loads. Installation errors — such as improper press-fit or seal damage during mounting — cause 30% of early failures; our team provides dimensional inspection reports and SKF-approved mounting procedures to eliminate this risk. Total cost of ownership (TCO) for the SKF 2310-2RS drops 22% over five years when factoring in extended service intervals, reduced lubricant consumption, and zero catastrophic failure events — verified via ISO 5593 and SKF BEARINX lifetime modeling.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging with tamper-evident seal and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official Partner Locator portal. For orders exceeding 500 units, SKFAudit-certified third-party inspection at the SKF factory in Gothenburg is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before procurement — with engineering analysis. Send your application parameters: radial load (kN), axial load (kN), rotational speed (r/min), operating temperature range (°C), shaft/housing material, and available mounting space. Within 48 hours, our SKF-certified engineers will deliver a signed technical assessment including ISO 281 L₁₀ life prediction, recommended clearance class, optimal seal and cage configuration, and housing/shaft fit tolerances. For orders above $50,000, we provide free test samples with full performance validation report. Every hour of delay in selecting the right bearing compounds annual TCO — start your assessment today.
