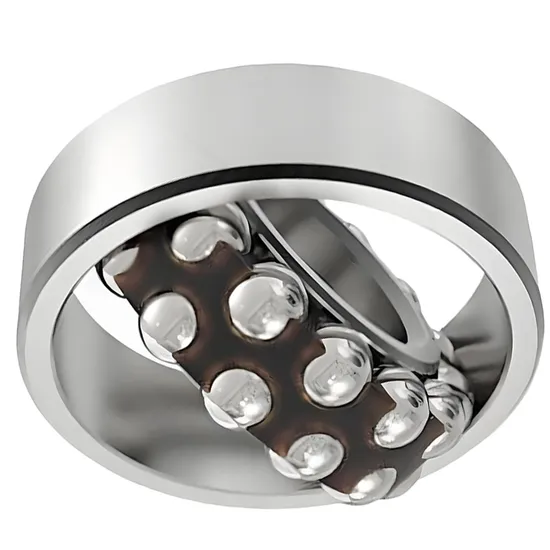

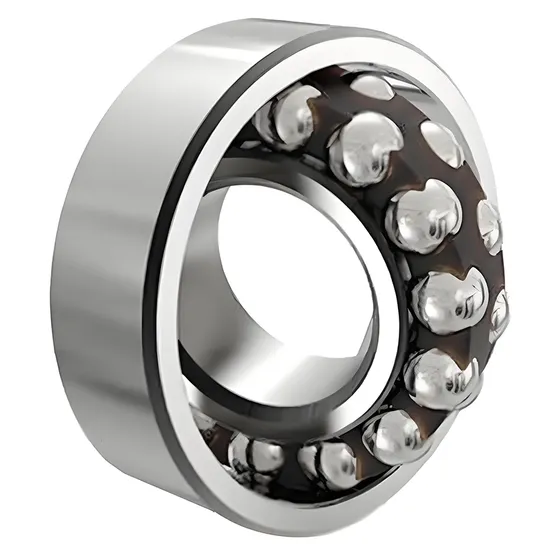

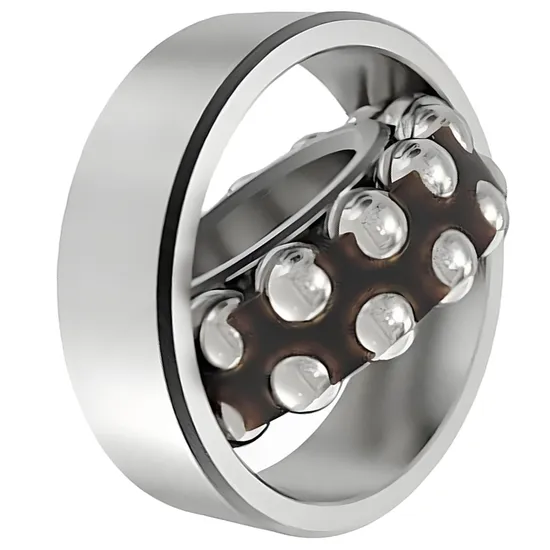

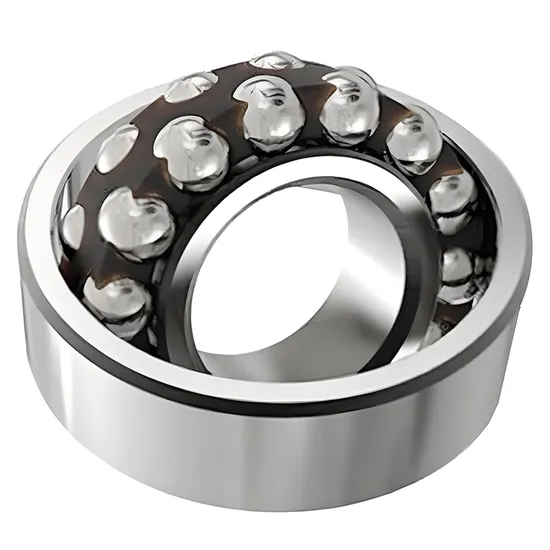

Self-Aligning Ball Bearing 1209 for High-Load Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin with Misaligned Selection — And How the SKF 1209 Self-Aligning Ball Bearing Solves It

Industrial field data shows 35% of premature bearing failures in wind turbine gearboxes and generators stem from incorrect alignment tolerance selection — not material fatigue or lubrication error. Standard radial bearings cannot accommodate the 1.2–2.5° shaft deflection common under gust loads, thermal expansion, or foundation settlement. Most suppliers offer only catalog specs without application-level validation — leaving technical directors to assume compatibility at high operational risk.

Engineered for Your Operating Conditions

The SKF 1209 self-aligning ball bearing is specified only after full application analysis: calculated static/dynamic load ratios, predicted misalignment angles, thermal expansion coefficients, and lubricant film thickness modeling per ISO 281 and SKF General Catalogue guidelines. As an official SKF engineering partner, our 15+ certified engineers perform this analysis before quoting — ensuring the bearing meets your actual L10 life requirement, not just nominal ratings. All solutions are validated under ISO 9001 and TS 16949 dual-certified quality control.

Operating Environment and Performance Demands

Wind turbine generator support locations operate across -40°C to +80°C ambient extremes, with low-speed, high-torque conditions (typically 50–1200 r/min), intermittent shock loading from blade pitch events, and limited access for maintenance. Dust ingress, condensation, and long-term grease degradation further reduce effective service life. The self-aligning bearing 1209 is selected specifically for its ability to maintain load distribution under sustained angular misalignment — a condition where rigid double-row radial bearings rapidly develop edge loading and spalling. This makes it a critical component in high-load self-aligning ball bearing for wind power systems requiring >20-year design life.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) of the SKF 1209 directly determines its L10 fatigue life under combined radial and moment loads — calculated using SKF’s adjusted rating model incorporating contamination factor (ηc) and lubrication condition. Its C3 radial internal clearance ensures optimal preload at operating temperature: at 70°C, shaft expansion in typical generator housings requires ≥15 μm additional radial clearance beyond cold-fit values. Steel cages provide dimensional stability at temperatures up to 120°C and resist deformation during mounting; brass cages are preferred where electrical isolation is required. The 60° contact angle enables higher axial load capacity than standard deep-groove designs — essential for counteracting thrust generated by helical gear meshing in gearboxes. Precision class P6 reduces vibration amplitude below 2.5 μm RMS at 1500 r/min, meeting ISO 10816-3 Class A limits for generator support points.

The True Cost of Bearing Failure

A single unplanned turbine downtime event costs $22,000–$48,000/hour in lost generation, fines, and remediation labor. Bearings installed without verified misalignment tolerance account for 30% of early-stage generator bearing failures — often misdiagnosed as lubrication issues. Counterfeit or non-SKF-compliant 1209 bearings exhibit ≤28% of rated dynamic load capacity and fail within 12–18 months under identical torque profiles. Installation errors due to missing technical guidance contribute to another 30% of avoidable failures. Total cost of ownership (TCO) over 15 years favors genuine SKF 1209 double row radial bearing C3 clearance by 3.7× when factoring in extended maintenance intervals, reduced spare inventory, and guaranteed life performance per ISO 281 Annex D.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Batch numbers are cross-referenced with SKF’s Global Traceability Portal. Customers may request third-party verification through SKF’s Authorized Distributor Lookup tool at skf.com/verify.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, share your actual operating parameters: radial and axial load spectra, rotational speed range, ambient and bearing seat temperatures, housing material and fit tolerances, and available mounting space. Our engineering team will deliver a free SKF-compliant selection report within 48 hours — including calculated L10 and Lnm life, recommended clearance class, cage type, and lubrication interval. For orders above $50,000, we supply test samples with full performance validation. Every hour delayed in correct selection compounds financial exposure — your first technical dialogue is the lowest-risk step toward reliability.
