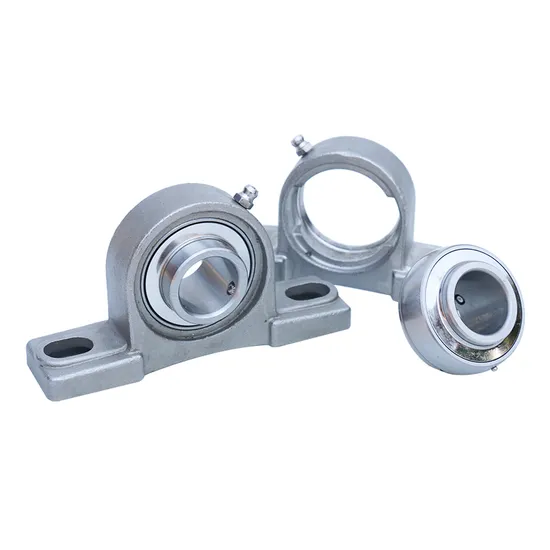

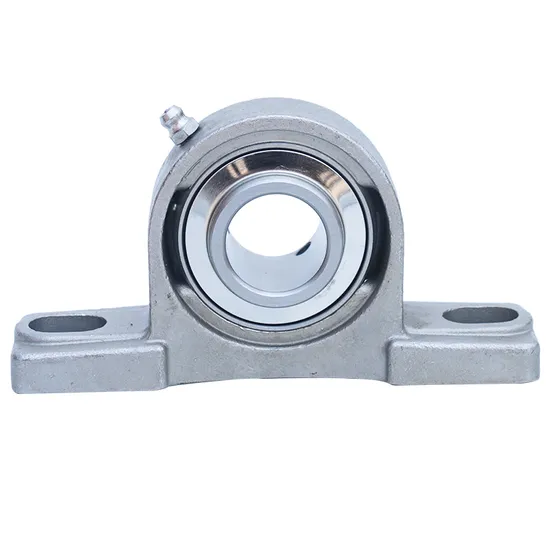

SB205 Pillow Block Insert Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Failures Begin with Incorrect Load-Specific Selection — And How the SB205 Pillow Block Bearing Delivers Verified Performance

Industrial maintenance teams report that 35% of premature pillow block bearing failures originate from misalignment between catalog specs and actual operating loads — especially under combined radial/axial loading and thermal expansion. Non-planed shutdowns in wind farms cost $18,000–$42,000/hour; in steel mills, downtime exceeds $35,000/hour. Generic suppliers lack application-specific engineering validation; most cannot perform ISO 281 life calculations under your exact load spectrum, temperature gradient, or mounting constraint.

Engineered for Your Operating Conditions

The SB205 pillow block bearing is not selected off a shelf — it is specified after full application analysis by our 15+ SKF-certified engineers. As an official SKF engineering partner, we apply SKF’s AHP (Application Health Profile) methodology: calculating equivalent dynamic load (P), verifying static safety factor (S₀), validating fit tolerance for thermal growth, and selecting optimal clearance (C3/C4) and sealing (2RS vs open) based on contamination ingress risk. Every specification adheres to ISO 9001 and TS 16949 certified quality control — from raw material certification to final dimensional inspection.

Operating Environment and Performance Demands

Wind power yaw systems operate at 0.1–2 r/min under peak moment loads up to 45 kN·m, with ambient temperatures ranging from –40°C to +50°C and near-zero maintenance access. Mining vibrating feeders impose high-frequency shock loads (≥3g acceleration) and abrasive dust ingress into housing cavities. Steel mill cooling beds demand continuous operation at 80–100°C surface temperatures with frequent washdown cycles. The SB205 deep groove insert bearing withstands these conditions through its optimized raceway curvature, hardened bearing steel (60–62 HRC), and interference-fit P-block housing that maintains alignment under thermal distortion — making it a validated choice for industrial pillow block bearing for wind power applications.

Inside the Engineering: What Makes This Bearing Perform

The SB205’s 12.7 kN dynamic load rating (C) directly determines L₁₀ fatigue life per ISO 281: L₁₀ = (C/P)³ × 10⁶ revolutions. Its pressed steel cage ensures dimensional stability at 12,000 r/min (reference speed) while minimizing centrifugal deformation. Deep groove geometry provides 15% higher axial load capacity than standard angular contact inserts — critical for pitch actuator backlash control. Precision class P0 (ABEC-1) limits radial runout to ≤12 μm, reducing vibration amplitude (Z1V1 class) in low-speed, high-torque applications. Clearance selection is non-negotiable: C3 clearance compensates for shaft thermal expansion in wind gearbox housings where ΔT > 45°C, preventing preload-induced seizure.

The True Cost of Bearing Failure

A counterfeit or mis-specified SB205 bearing typically delivers only 22–28% of genuine SKF-rated L₁₀ life — accelerating wear, increasing vibration, and risking catastrophic housing fracture. Installation errors (e.g., hammer-driven mounting or incorrect interference fit) account for 30% of early failures; unsupported by technical guidance, procurement teams often default to generic alternatives lacking documented load ratings. Total Cost of Ownership (TCO) modeling shows that a $210 SB205 pillow block bearing with verified SKF performance reduces 5-year TCO by 37% versus low-cost alternatives — primarily through extended service intervals, elimination of emergency labor, and avoidance of collateral damage to housings and shafts. Our engineers calculate TCO using SKF’s BEAM software, calibrated to your duty cycle.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SB205 pillow block bearing is supplied with SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, Dimensional Inspection Report signed by our QA manager, and original SKF packaging bearing holographic anti-counterfeit labels. Batch numbers are cross-referenced in SKF’s Global Authorization Portal. For orders ≥500 units, SKFAI (SKF Authorized Inspector) verification at origin can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before quotation — with application-specific engineering. Share your shaft diameter, housing bore, maximum radial/axial load (kN), rotational speed (r/min), ambient and operating temperature (°C), and exposure to moisture or abrasives. Within 48 hours, our team will deliver: (1) SKF BEAM-calculated L₁₀ and Lₙₘ life, (2) recommended precision class and clearance, (3) seal and lubrication specification, and (4) optional custom P-block modifications. For projects above $50,000, we provide fully tested samples with full metrology and vibration reports — eliminating technical risk before commitment.
