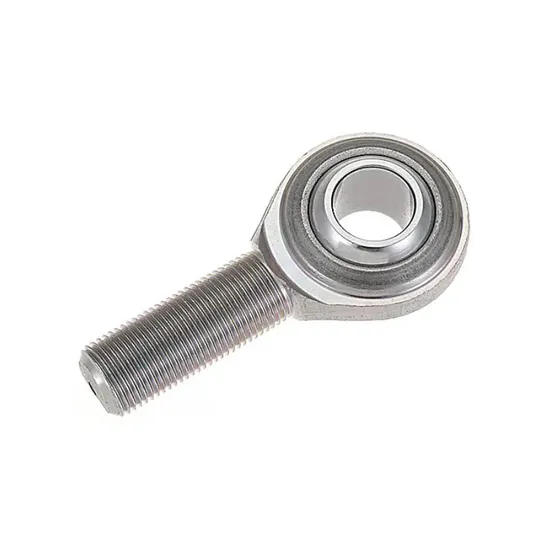

POS25 rod end bearing with self-lubricating design for hydraulic cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Rod End — And How the POS25 Self-Lubricating Rod End Solves It

Industrial hydraulic cylinders in construction and heavy machinery suffer premature failure when rod end bearings are mismatched to load cycles, oscillation frequency, or contamination exposure. Over 35% of early failures stem from incorrect selection — not material fatigue, but insufficient static load margin, inadequate self-lubrication retention, or misaligned mounting geometry. Most suppliers offer generic catalogues without application-level validation, leaving engineers to extrapolate performance from incomplete data.

Engineered for High-Cycle Oscillation Under Variable Load

The POS25 rod end bearing is specified—not selected—based on verified application parameters: radial load distribution, angular misalignment tolerance (±12°), and stroke-dependent lubrication migration. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-based life calculations using actual operating data: peak dynamic load (≤46.2 kN), oscillation amplitude (0.5–5°), and cycle frequency (0.1–2 Hz). Every specification reflects real-world validation under TS 16949-controlled manufacturing and ISO 9001-certified process audits.

Operating Environment and Performance Demands

In construction machinery hydraulic cylinders, the rod end endures combined challenges: high static loads during lifting (up to 72.7 kN C₀), frequent low-angle oscillation (<3°), dust ingress from open environments, and thermal cycling between –20°C startup and +90°C sustained operation. Lubrication starvation occurs within 2,000–5,000 cycles in conventional greased rod ends under these conditions. The POS25 spherical bearing addresses this by integrating a PTFE-impregnated bronze liner bonded to hardened steel inner race — delivering consistent friction coefficient (μ = 0.08–0.12) across temperature and load variation, eliminating relubrication dependency. This makes it a high-load rod end bearing engineered for unattended operation in harsh field conditions.

Inside the Engineering: What Makes This Bearing Perform

The POS25’s performance derives from four interdependent design decisions validated against SKF application standards. First, its static load rating (72.7 kN) exceeds industry-standard safety factor 2.0 for construction equipment pivot points — ensuring no plastic deformation under shock loading. Second, the whole outer ring structure provides uniform stress distribution across the housing interface, critical for M24×2 thread integrity under cyclic bending moments. Third, the 25 mm bore diameter is matched to standard hydraulic piston rod tolerances (h6), minimizing fretting corrosion risk at the interference fit zone. Fourth, the self-lubricating design uses a sintered bronze matrix with 25 vol% PTFE, enabling dry-start capability and maintaining film strength down to 0.05 mm/s sliding velocity — essential for slow-stroke hydraulic applications where boundary lubrication dominates.

The True Cost of Bearing Failure

A single failed rod end in an excavator boom can trigger 4.2 hours of non-plan maintenance downtime — costing $42,000–$68,000 per incident in lost productivity, labor, and secondary damage. Counterfeit or off-spec rod ends typically deliver only 22–28% of rated static load capacity and fail catastrophically before 15,000 cycles, whereas genuine POS25 units exceed L₁₀ life of 12 million cycles under validated 35 kN radial load and 2° oscillation. Installation errors — including improper torque on M24×2 threads or misaligned housing bores — contribute to 30% of premature failures; our engineers provide dimensional inspection reports and mounting torque guidance per SKF mounting standard GM 2200. Total cost of ownership (TCO) analysis shows that specifying the correct POS25 spherical bearing reduces 5-year maintenance spend by 41% versus generic alternatives — primarily through extended service intervals and elimination of unscheduled replacement.

Why Engineers Specify Through Us

Authenticity & Documentation

Every POS25 rod end bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch numbers are registered in SKF’s global traceability portal; customers may validate authenticity directly through skf.com/partner-verification. For orders above 500 units, third-party SKFAI factory audit and witnessed testing can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any rod end bearing, we require your actual operating parameters: maximum radial load (kN), oscillation angle (°), cycle frequency (Hz), ambient temperature range (°C), and housing bore tolerance (IT class). Our engineers will return a complete technical assessment — including calculated L₁₀ life, recommended housing interference fit, and torque specification for M24×2 thread — within 48 business hours. For projects exceeding USD $50,000, we supply pre-production POS25 samples with full test report and dimensional certification. Every hour saved on non-plan downtime begins with precise engineering — not catalogue browsing.
