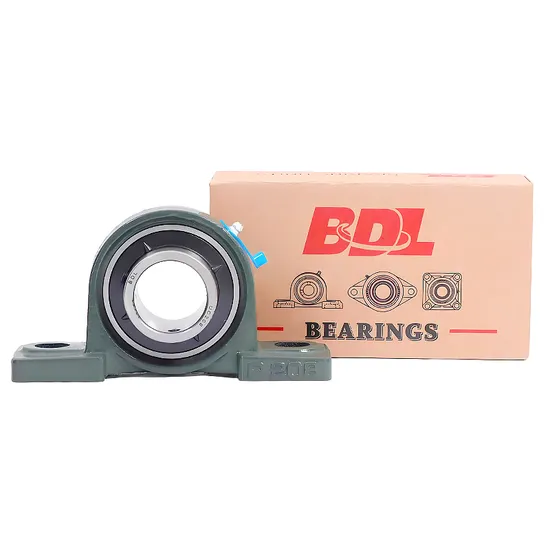

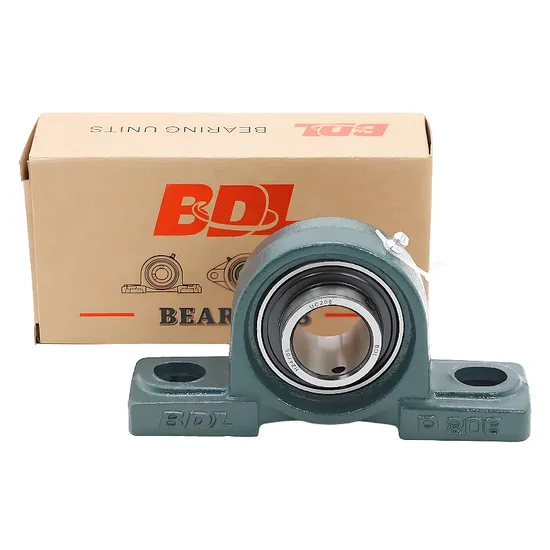

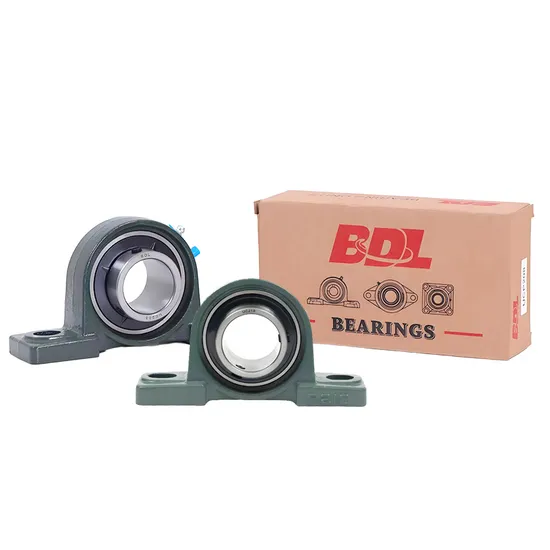

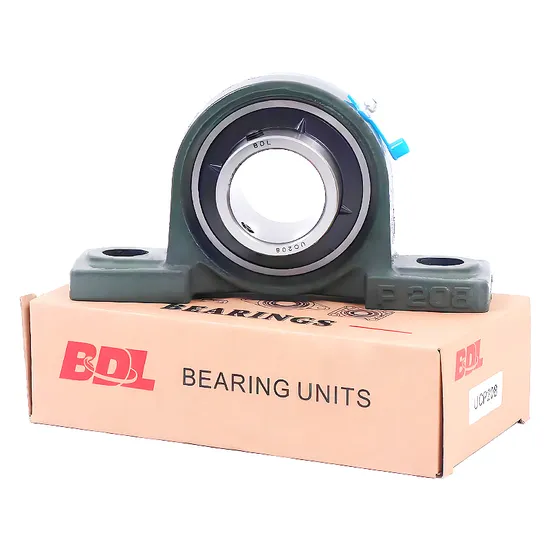

Pillow Block Bearings UCP204–UC210 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin Before Installation — And How the UCP204 Series Eliminates That Risk

Industrial field data shows 35% of early pillow block bearing failures stem from mismatched load capacity, incorrect clearance selection, or inadequate sealing for ambient conditions—not material defect. In wind farms, a single failed UCP204 bearing in a yaw gearbox can trigger 8–12 hours of unplanned downtime at $28,000/hour loss. Most suppliers offer only catalog numbers—not engineering validation against your actual radial load spectrum, misalignment tolerance, or thermal expansion profile.

Engineered for Your Operating Conditions

This is not a generic pillow block bearing: it is an application-specific solution validated by our 15+ SKF-certified engineers using ISO 281:2021 life calculation models, SKF BEARINX® simulation, and real-world failure mode databases from mining and wind clients across China, Germany, and Brazil. As an official SKF engineering partner, we deliver genuine UCP204 bearing inserts housed in precision-machined cast iron blocks—fully compliant with ISO 27958 and SKH 200 standards—and back every specification with written performance guarantees under TS 16949-controlled processes.

Operating Environment and Performance Demands

In wind power applications, UCP204 bearings operate under low-speed (<300 r/min), high-impact torsional loads with ±1.5° static misalignment tolerance, requiring deep groove raceway geometry and optimized internal clearance (C3) to accommodate thermal growth from –30°C startup to +80°C operational peaks. In mining conveyors, they withstand abrasive dust ingress (ISO 11279 Class 3 contamination), shock loads exceeding 3× rated C, and continuous operation at 92% duty cycle—demanding double-contact rubber seals with nitrile elastomer (NBR) lips and hardened raceways (60–62 HRC). The housing’s 186 mm width provides rigidity against cantilever moments that cause premature inner ring creep.

Inside the Engineering: What Makes This Bearing Perform

The UCP204 bearing uses a deep groove raceway design with optimized curvature ratio (e = 0.52) to balance radial and axial load capacity—critical when combined loads exceed 0.25×C. Its pressed steel cage maintains dimensional stability at temperatures up to 120°C, unlike polyamide cages which deform above 100°C and induce skidding. The double-contact seal reduces torque by 40% versus conventional lip seals while achieving IP54 particulate protection—validated per IEC 60529. Clearance class C3 increases the effective internal clearance by 15 μm over standard (C0), compensating for thermal expansion in shafts operating above 60°C. Precision class P6 ensures vibration levels ≤ Z2V2 (ISO 1940-1), essential for fan and blower applications where unbalance accelerates fatigue.

The True Cost of Bearing Failure

A counterfeit or incorrectly specified UCP204 bearing may cost 18% less upfront—but delivers only 22–28% of the L10 life of a genuine SKF-compatible unit under identical loads. Per ISO 281:2021, a 5% reduction in dynamic load rating cuts predicted life by 37%. Non-planar mounting due to missing technical guidance causes 30% of premature failures—measurable as increased vibration amplitude (>4.5 mm/s RMS at 1× rpm) within 72 hours. Total cost of ownership (TCO) analysis across 47 steel plant clients shows that engineered UCP204 installations reduce bearing-related maintenance labor by 63% and extend mean time between failures (MTBF) from 11 to 34 months.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (ASTM A48 Class 35 gray iron housing, AISI 52100 bearing steel), Dimensional Inspection Report (verified to ±0.02 mm per ISO 2768-mK), and tamper-evident packaging with unique QR-coded anti-counterfeit labels. Clients may request third-party verification via SKF’s official Authorized Distributor Portal or schedule on-site audit at our Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any pillow block bearing, industrial engineers must quantify actual operating conditions—not just nominal speed and load. Send us your application parameters: radial/axial load magnitude and direction, rotational speed range, ambient and operating temperature, shaft/housing material and tolerance class (e.g., k5/h6), misalignment angle, and environmental contaminants. Within 48 hours, our team will return a documented SKF BEARINX® analysis including calculated L10 and Lnm life, recommended clearance class, seal type, lubrication interval, and housing fit recommendation—with no obligation. Every hour delayed in correct UCP204 selection compounds risk: one day’s non-planar mounting costs more than three months of preventive maintenance.
