Original NJ305-NJ309 E M Cylindrical Roller Bearings Authorized Supplier

Cross-reference alignment verified — Base number, brass cage material, and optimized internal design suffixes are strictly matched during interchange checks.

Technical Specifications

Application Suitability

Why Brass Cages Outlast Stamped Steel in Heavy Radial Loads

Machined brass cages prevent catastrophic rib failures under shock loads.

When a generic NJ305-NJ309 E M cylindrical roller bearing operates inside an industrial gearbox, the internal components face severe radial stress and sudden torque spikes. Stamped steel cages often deform under these exact conditions, leading to roller skewing and eventual inner rib fracture. I have personally dismantled gearboxes where mismatched cage materials caused total assembly lock-up within weeks of installation. Upgrading to a solid brass cage ensures the rollers remain perfectly aligned, drastically reducing the risk of sudden thermal binding .

Aligning Bearing Geometry with Radial Demands

Selecting the correct generic NJ305-NJ309 E M cylindrical roller bearing requires matching the internal geometry to the specific radial demands of the shaft. The two integral flanges on the inner ring provide excellent axial guidance in one direction, while the optimized roller profile distributes contact stress evenly across the raceway. Our technical team reviews your load diagrams to ensure this specific configuration handles the operational forces without edge-loading the rollers.

Operational Challenges in Power Transmission

Heavy radial loads combined with high rotational speeds generate substantial friction heat inside the bearing envelope. If the operating temperature rises significantly, standard radial clearance can quickly vanish, causing the rollers to bind against the flanges. Proper lubrication flow is critical to carry this heat away, while the machined brass cage provides superior guidance and durability even when the oil film thickness fluctuates under varying load conditions .

Decoding the E and M Suffix Engineering

The M suffix indicates a machined brass cage, which offers exceptional structural integrity and operates reliably at elevated temperatures where polymer cages would degrade. The E suffix denotes an optimized internal design with larger and more numerous rollers, substantially increasing the radial load-carrying capacity compared to standard designs. Furthermore, the separable nature of the NJ series allows the inner ring to be mounted independently on the shaft using induction heating, simplifying maintenance and ensuring precise interference fits without damaging the outer ring assembly.

The Hidden Costs of Suffix Interchange Errors

Substituting a standard clearance bearing where a C3 expansion clearance is required often leads to premature failure due to thermal expansion constraints. When procurement teams focus solely on the base number and ignore the cage material or internal design suffixes, the resulting mismatch causes excessive friction and rapid wear. According to ISO 281 standards for life calculation, operating a bearing outside its designed geometric parameters severely compromises the calculated fatigue life, resulting in unplanned downtime and costly secondary damage to the housing .

Securing Traceability in Multi-Brand Procurement

Sourcing mixed-brand requirements from a single authorized channel eliminates the coordination delays typical of fragmented supply chains. We strictly verify that the cross-referenced equivalents match not just the base dimensions, but also the exact brass cage and optimized internal design specifications. Every shipment includes verifiable batch traceability, ensuring the inner ring hardness meets original factory standards and eliminating the risk of counterfeit components with soft raceways. Our application-based selection review prevents the costly mistake of installing standard precision grades in high-speed spindle environments.

Documentation & Authenticity

• Certificate of Conformity confirming the exact machined brass cage and optimized internal design specifications.
• Original manufacturer batch and lot traceability linking directly to the production facility records.
• Official brand application QR verification for immediate authenticity validation upon delivery.
• Material test report verifying the metallurgical hardness of the inner ring flanges.
• Dimensional and running accuracy inspection report confirming precise bore and outer diameter tolerances.
• Country-of-origin documentation supporting customs clearance and regional compliance requirements.

Storage, Handling & Mounting

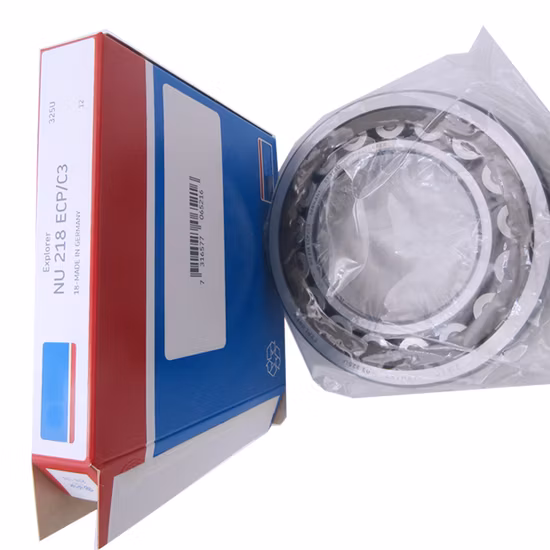

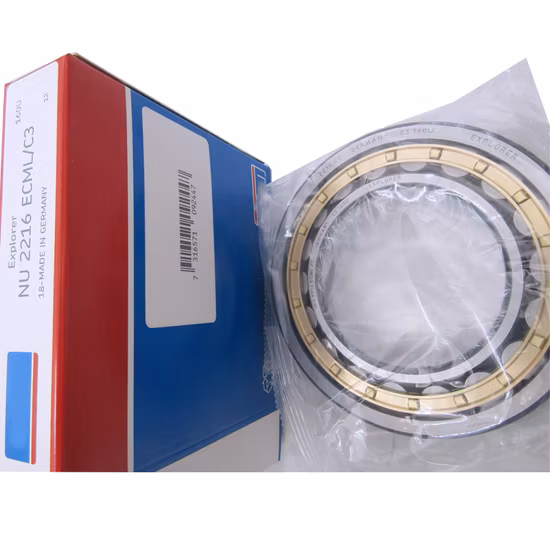

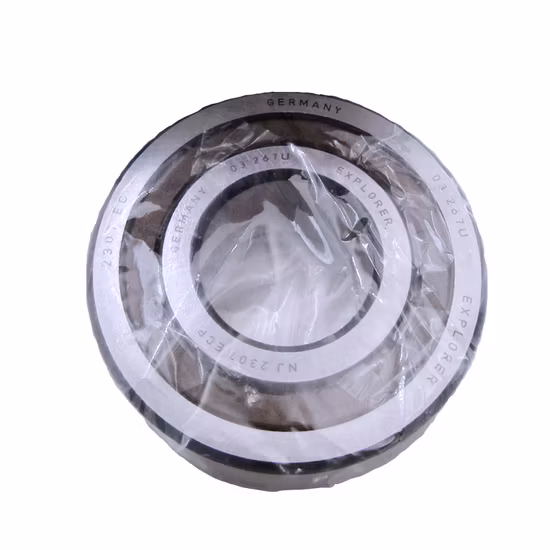

• Retain the original vapor-phase corrosion inhibitor packaging until the moment of installation to protect the exposed brass cage.
• Use induction heating equipment strictly controlled below the thermal tempering limit when mounting the separable inner ring onto the shaft.
• Handle the machined brass cage with clean, lint-free gloves to prevent acidic moisture from initiating localized surface corrosion.
• Apply the specified high-viscosity gear oil directly to the optimized roller profiles before closing the gearbox housing.
• Verify the shaft shoulder fillet radius to ensure it does not interfere with the inner ring flange undercuts during press-fitting.

Preparing Your Technical Inquiry

To facilitate an accurate technical review and L10 life calculation, please share your specific radial and axial load profiles, operational speeds, and expected thermal gradients. If you are replacing an existing component, providing the exact OEM equipment number allows our engineering team to perform a precise cross-reference verification. This data ensures we recommend the correct clearance class and confirm that the brass cage configuration perfectly matches your application requirements.

Frequently Asked Questions

Q: Why does the cage material suffix matter during cross-referencing?
A: Matching only the base number while ignoring the M suffix can result in receiving a stamped steel cage instead of machined brass. In heavy-duty gearboxes, this material downgrade leads to cage deformation under shock loads, causing roller skewing and rapid inner rib failure. We ensure the cage material perfectly aligns with the original equipment specifications.

Q: How do I verify the authenticity of the received bearings?
A: Every unit we supply features a unique batch code that can be scanned using the manufacturer's official mobile application. This digital verification confirms the production origin, material grade, and factory inspection records, effectively eliminating the risk of installing counterfeit bearings with compromised inner ring hardness.

Q: What is the advantage of the E suffix in this series?
A: The E suffix indicates an optimized internal geometry that accommodates larger rolling elements, substantially increasing the radial dynamic load rating. This design enhancement allows the bearing to withstand heavier operational forces and extends the calculated fatigue life in demanding power transmission applications without altering the external envelope dimensions.

Q: How should the separable inner ring be mounted?
A: The inner ring should be heated using a controlled induction heater to expand the bore, allowing it to slide smoothly onto the shaft without excessive force. It is critical to monitor the temperature carefully to avoid altering the metallurgical properties of the steel, and to ensure the shaft shoulder provides adequate axial support for the integral flanges.
