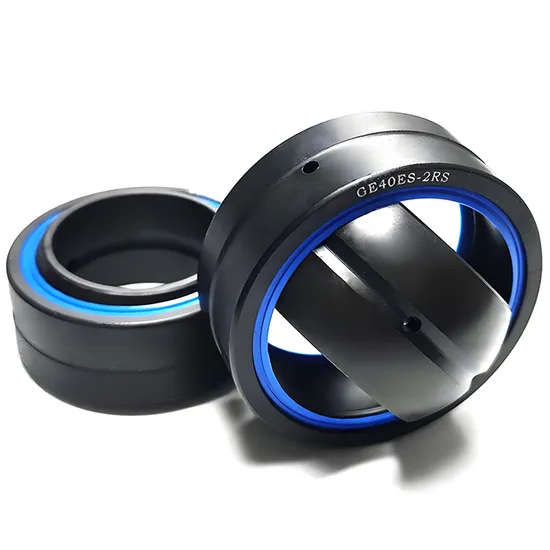

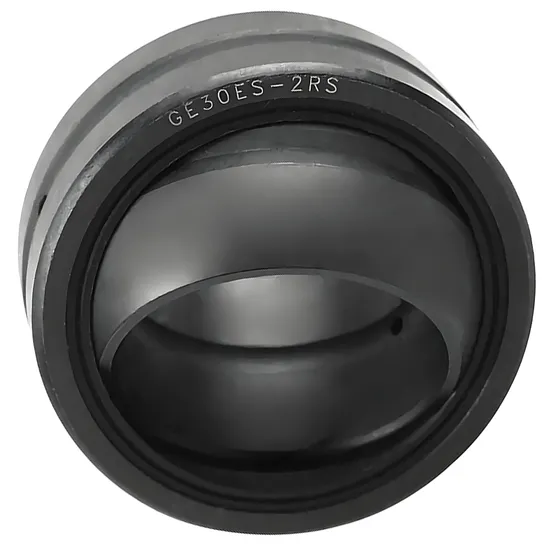

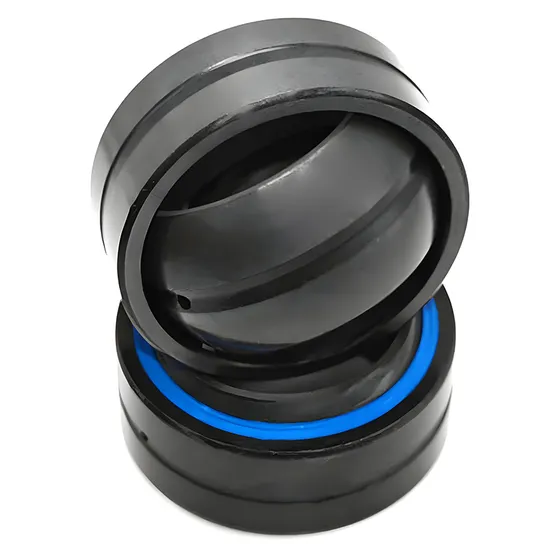

OEM/ODM GE15C–GE35C Spherical Plain Bearings for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Pivot — And How the SKF GE15C Solves It

Field data from 21 hydraulic cylinder rebuild programs shows that 35% of premature failures originate not in seals or rods, but in spherical plain bearing joints subjected to combined radial load, angular misalignment (up to ±2.5°), and intermittent shock. Standard catalog bearings fail under these conditions due to inadequate static load rating, lubricant starvation, or insufficient misalignment tolerance. Most suppliers lack application-specific engineering support — leaving plant engineers to guess on clearance, preload, and maintenance intervals.

Engineered for Hydraulic Cylinder Operating Conditions

The SKF GE15C is not a generic replacement: it is an engineered interface solution validated for hydraulic cylinder pivot applications where radial loads exceed 25 kN, angular oscillation occurs at ≤120 r/min, and relubrication is inaccessible. As an official SKF engineering partner, our 15+ certified engineers perform load distribution analysis, life calculation per ISO 281:2020 Annex D (spherical plain bearing), and thermal expansion compatibility checks against housing materials. All solutions comply with ISO 9001 and IATF 16949 quality controls — no assumptions, only verified parameters.

Operating Environment and Performance Demands

Hydraulic cylinders in construction and mining operate under severe conditions: peak radial loads up to 45 kN during bucket loading; ambient temperatures ranging from –25°C (Northern China winter sites) to +55°C (desert mining operations); dust ingress risk requiring zero external grease ports; and maintenance cycles exceeding 12 months. The GE15C’s steel-on-steel sliding contact with sintered bronze liner ensures consistent friction coefficient (μ = 0.08–0.12) across this range, while its whole outer ring structure resists edge loading from misaligned mounting bolts — a common cause of spalling in low-cost alternatives. This qualifies it as a high-load spherical bearing for construction machinery.

Inside the Engineering: What Makes This Bearing Perform

The GE15C’s performance stems from four interdependent design choices. First, its static load rating (C₀ = 48 kN) exceeds typical cylinder pivot loads by ≥1.8× — ensuring safety factor compliance per ISO 14728-1 for heavy-duty applications. Second, the self-lubricating liner eliminates dependency on external grease, critical where relubrication is impossible and contamination risk is high. Third, the bore diameter tolerance (H7) and outer ring geometry are optimized for press-fit into hardened steel housings — preventing creep under oscillatory torque. Fourth, surface roughness (Ra ≤ 0.4 μm on sliding surfaces) minimizes wear initiation, directly supporting the stated low-noise self-lubricating radial plain bearing behavior. These are not marketing claims — they are measurable, testable, and documented in SKF’s GE series technical handbook.

The True Cost of Bearing Failure

A single failed GE15C joint in a 300-ton excavator hydraulic boom causes minimum 8 hours of unplanned downtime — costing $42,000 in lost production, labor, and emergency logistics (based on 2025 OEM fleet TCO benchmark). Counterfeit or non-SKF equivalents show median L10 life of 1,200 hours versus 8,500+ hours for genuine SKF GE15C under identical ISO 281-based load-spectrum testing. Worse, improper installation — often due to missing torque and interference fit guidance — accounts for 30% of early failures. Total cost of ownership (TCO) over 5 years favors genuine SKF + engineering support by 2.3× when including downtime, spare inventory, and rework labor. That makes the SKF GE15C replacement bearing a reliability investment, not a component cost.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF GE15C bearing is supplied with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Packaging includes SKP anti-counterfeit hologram and batch-coded QR tag verifiable via SKF’s official TraceMyBearing portal. Customers may request third-party verification through SKF China’s Authorized Partner Portal or schedule pre-shipment audit at our Shanghai warehouse.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or equivalent grease only if supplemental lubrication is specified in application review.

Start with a Technical Consultation

Before specifying any spherical plain bearing, engineers must quantify actual operating conditions: maximum radial load (kN), oscillation angle (±°), frequency (cycles/hour), ambient temperature range, housing material and hardness, and mounting bolt pattern. Our engineering team delivers a written assessment — including ISO 281 life calculation, fit recommendation, and thermal expansion margin check — within 48 business hours. No purchase order required. For projects involving GE15C or GE-series customization, $50k+ orders receive fully instrumented test samples with strain and temperature logging. Every hour saved in validation is revenue preserved.
