Nup203-Nup209 Cylindrical Roller Bearings Original OEM Brand

Authenticity Verified Instantly — Every Nup203/Nup204/Nup205/Nup206/Nup207/Nup208/Nup209 cylindrical roller bearing ships with batch-traceable documentation, allowing procurement teams to scan the manufacturer's official QR code and confirm the exact metallurgical origin before installation.

Technical Specifications

Nup: unverified suffix — requires manufacturer catalog confirmation for specific rib ring configurations.

Application Suitability

Why Gearbox Shafts Snap When Suffix Details Are Ignored

The inner ring rib configuration dictates axial load capacity, not just the base number.

Sourcing a Nup203/Nup204/Nup205/Nup206/Nup207/Nup208/Nup209 cylindrical roller bearing based solely on the basic dimension profile often leads to catastrophic field failures. I have investigated numerous industrial gearbox teardowns across the Shandong peninsula where the inner ring detached under axial thrust because the loose rib ring was omitted or the wrong cage material was substituted. When cross-referencing across brands, matching the outer diameter and bore is merely the starting point; overlooking the internal rib design or cage clearance results in thermal binding or immediate cage fragmentation under high-speed rotation .

Matching the NUP Configuration to Axial Thrust

The defining characteristic of this series is the double rib on the outer ring combined with a single rib and a loose rib ring on the inner ring. This specific Nup203/Nup204/Nup205/Nup206/Nup207/Nup208/Nup209 cylindrical roller bearing architecture allows the assembly to locate the shaft axially in one direction while handling substantial radial loads. Procurement engineers must verify that the loose rib ring is included in the delivery package and that the cross-referenced equivalent maintains this exact internal geometry, as substituting an NU or NJ variant will leave the shaft completely unconstrained axially.

Navigating Thermal Expansion and Lubrication Boundaries

In heavy-duty gearboxes and traction motors, operating temperatures fluctuate significantly, demanding careful consideration of internal clearance. A standard CN clearance might cause the rollers to bind against the ribs when the shaft expands thermally, whereas a C3 clearance provides the necessary operational gap. Furthermore, the open design requires a continuous supply of clean, high-viscosity gear oil or grease to prevent roller skidding during startup, making the sealing integrity of the surrounding gearbox housing absolutely critical to prevent contaminant ingress .

Decoding Cage Material and Separated Assembly

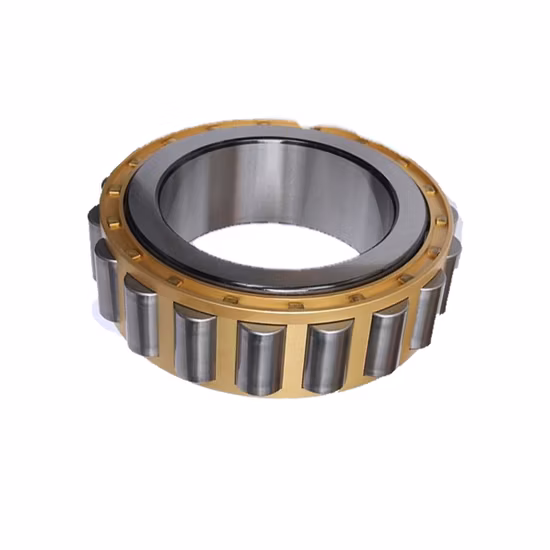

While the rings and rollers are manufactured from high-carbon chromium bearing steel, the cage material is a selectable option that profoundly impacts performance. Machined brass cages are preferred for high-vibration gearbox applications due to their superior damping properties and resistance to lubricant starvation, whereas pressed steel cages suit lighter, high-speed electric motor duties. The separated design means the inner ring assembly, complete with its loose rib ring, can be mounted onto the shaft independently of the outer ring, drastically simplifying the maintenance workflow in confined machine tool spindle housings.

The Hidden Costs of Interchange Errors

When a purchasing manager approves a substitute part that matches the basic envelope dimensions but features an incorrect internal design, the consequences extend far beyond a single component replacement. A mismatched cage material or missing loose rib ring leads to unplanned downtime, secondary damage to the gearbox housing, and complete warranty voidance from the original equipment manufacturer. According to failure analysis frameworks, a significant share of premature failures stems directly from these subtle interchange errors rather than manufacturing defects .

Why Procurement Engineers Trust Our Technical Review

We do not merely process part numbers; we audit the complete suffix string to ensure the internal rib configuration and cage material align perfectly with your specific application. Our authorized distribution network guarantees that every Nup203/Nup204/Nup205/Nup206/Nup207/Nup208/Nup209 cylindrical roller bearing is sourced directly from the manufacturer's production facilities, eliminating the risk of counterfeit soft inner rings. We provide comprehensive cross-brand interchange reviews that verify not just the base designation, but the exact clearance class and precision grade required for your machinery.

Documentation & Authenticity

• Certificate of Conformity detailing the specific country of origin for customs clearance.
• Batch and lot traceability linking the physical bearing to the manufacturer's forging records.
• Official QR codes scannable via brand apps to instantly verify authenticity on the shop floor.
• Material test reports confirming the metallurgical grade of the selected cage variant.
• Dimensional and running accuracy inspection reports verifying tolerance compliance before dispatch.

Storage, Handling & Mounting

• Store the separated inner ring and loose rib ring together in original packaging to prevent loss or mismatching.
• Use induction heating for the inner ring assembly, monitoring temperature to preserve the bearing steel hardness.
• Apply a thin layer of clean assembly oil to the loose rib ring contact surface to prevent startup scuffing.
• Ensure the machined brass cage is protected from impact damage during the press-fitting process.
• Verify the shaft shoulder fillet radius clears the inner ring rib undercut to ensure proper axial seating.

Engineering Review and Selection Support

To ensure the selected configuration perfectly matches your operational demands, please provide the exact radial and axial load profiles, operating speed ranges, and thermal conditions of your application. If you are replacing an existing component, sharing the original equipment manufacturer's drawing number or equipment serial number allows our engineering team to perform a rigorous cross-reference audit, confirming the internal geometry and clearance class before finalizing the procurement.

Frequently Asked Questions

Q: Why must the NUP designation be strictly separated from NU or NJ during cross-referencing?
A: The NUP configuration includes a loose rib ring on the inner ring, enabling axial shaft location in one direction. Substituting an NU type removes all axial constraint, while an NJ type only locates in the opposite direction. Ignoring this distinction leads to severe mechanical instability and rapid gearbox failure under thrust loads.

Q: What are the operational advantages of selecting a machined brass cage for industrial gearboxes?
A: Machined brass cages offer superior structural integrity under high vibration and shock loads typical in heavy-duty gearboxes. They also maintain better lubrication film retention during transient oil starvation events, significantly reducing the risk of roller skidding and premature cage fragmentation compared to standard pressed steel alternatives.

Q: How should internal clearance be selected for high-temperature motor applications?
A: In applications where the shaft operates at noticeably higher temperatures than the housing, thermal expansion reduces the internal radial clearance. Selecting a C3 or C4 clearance class compensates for this differential expansion, preventing the rollers from binding against the ribs and avoiding catastrophic thermal seizure during continuous operation.

Q: How can procurement teams identify counterfeit bearings with cloned QR codes?
A: Counterfeiters often clone visual QR codes that redirect to fake websites. Genuine verification requires scanning the code using the bearing manufacturer's official mobile application, which cross-references the encrypted batch data against the central factory database to confirm the exact metallurgical origin and production date.

Q: What is the correct procedure for mounting the separated inner ring assembly?
A: The inner ring, along with its loose rib ring, should be heated using a controlled induction heater and mounted onto the shaft independently of the outer ring. Care must be taken to ensure the shaft shoulder fillet radius is sufficiently small to allow the inner ring rib to seat completely flush against the shaft shoulder.
