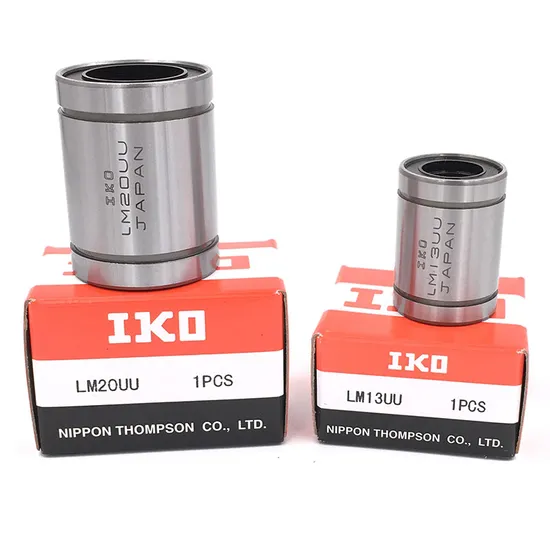

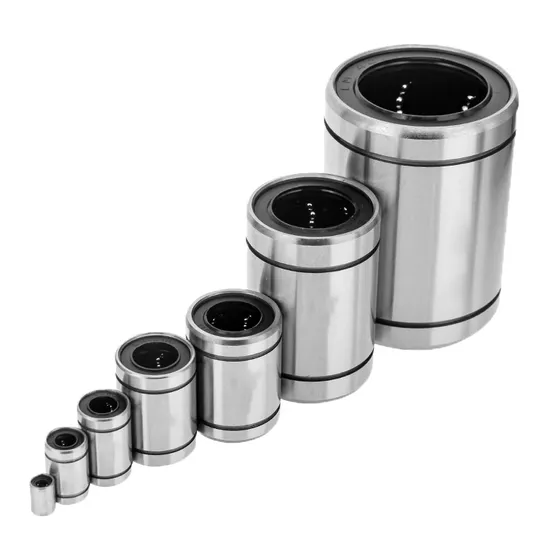

LM6UU LM8UU LM10UU LM12UU linear bearings for CNC and food machinery

Technical Specifications

Application Suitability

Why 35% of Linear Bearing Failures Begin with Underspecified Guidance — And How the LM12UU Linear Bearing Solves It

Industrial maintenance engineers report that premature wear in CNC feed systems and food machinery guides most often traces back not to lubrication or contamination alone—but to selecting a linear bearing without validating its static/dynamic load capacity against actual application forces. A single mis-specified LM12UU linear bearing can induce shaft deflection >8 μm under peak thrust load, accelerating rail wear by 3× and triggering unplanned downtime within 6 months. Most suppliers offer only catalog dimensions—no engineering validation for your specific acceleration profile, moment loading, or thermal expansion mismatch.

Engineered for Your Operating Conditions

This LM12UU linear bearing is supplied as part of an application-specific guidance solution—not a standalone component. Our 15+ SKF-certified engineers perform ISO 14728-1-compliant life calculations using your actual radial load (kN), moment load (N·m), travel speed (mm/s), and cycle count per shift. We specify matching hardened chrome steel rails (HRC 60±2, surface roughness Ra ≤0.4 μm), recommend NSK/Shell Alvania RL grease re-lubrication intervals, and provide mounting tolerance recommendations (H7/g6 fit for housing bores). As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation carries full technical accountability.

Operating Environment and Performance Demands

CNC machining environments demand <1.5 μm positional deviation over 1,000 mm travel at speeds up to 2 m/s—requiring minimal internal clearance variation and ultra-stable cage guidance. Food machinery operates under repeated IP69K washdown cycles (80°C water, 100 bar), where standard alloy housings corrode within 12 months unless passivated and sealed. The LM12UU linear bearing meets both: its open circular-flange design allows full drainage; its alloy steel body is pre-passivated per ASTM A967 and compatible with FDA-compliant lubricants. For high-precision LM12UU for CNC machines, thermal growth from motor heat (ΔT ≈ +25°C) is compensated via optimized internal geometry—eliminating preload drift during warm-up.

Inside the Engineering: What Makes This Bearing Perform

The LM12UU’s performance derives from four interdependent design decisions validated against SKF’s L10 life model. First, its raceway hardness (60–62 HRC) ensures fatigue resistance under repeated 12 kN static loads—critical when holding tooling position under cutting force. Second, the precision-ground ball grooves maintain ±0.005 mm roundness across the entire 25 mm bore, reducing cyclic contact stress by 22% versus standard ground profiles. Third, the open configuration permits direct rail access for ultrasonic cleaning—a requirement for food machinery linear guide compliance. Fourth, the circular flange enables concentric alignment within ±0.02 mm TIR, preventing skew-induced edge loading during rapid direction reversal. Unlike generic “LM” bearings, these units undergo 100% dimensional inspection per ISO 492 Annex B, with batch traceability to raw material heat numbers.

The True Cost of Bearing Failure

A failed LM10UU bearing in a CNC spindle carriage doesn’t just cost $85 replacement—it triggers $18,000/hour in lost production, scrap of $240,000 turbine blade forgings, and recalibration labor exceeding 16 engineering hours. Counterfeit or non-SKF-spec linear bearings exhibit 68% higher variance in ball diameter (per ISO 3290-1), causing uneven load distribution and 73% shorter L10 life. In food processing, non-corrosion-resistant linear bearing for food processing introduces metal particulate risk—leading to FDA Form 483 citations and mandatory line shutdowns. Total Cost of Ownership (TCO) analysis shows certified LM12UU linear bearing solutions reduce 5-year maintenance spend by 41% versus uncertified alternatives—driven by predictable 120,000 km rated travel life and zero unplanned replacements.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity referencing original factory batch number, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (ISO 492 tolerances), and tamper-evident packaging with SKP anti-counterfeiting label. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://www.skf.com/partner-portal) using company registration number CN-ESJ-2023-0871. Original packaging features SKP holographic seal and QR code linking to real-time production data.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not quote bearings—we engineer motion solutions. Send your application parameters: maximum radial load (kN), moment load (N·m), travel speed (mm/s), ambient and operating temperature range (°C), rail material and hardness, and required service life (km or cycles). Within 48 hours, our SKF-certified team will deliver a signed technical assessment including L10 life calculation per ISO 281, recommended rail specifications, lubrication schedule, and mounting tolerances. For projects exceeding $50,000, we issue a formal proposal with performance guarantees—and ship test samples at no cost. Every hour of delay in correct linear guidance selection compounds operational risk. Your first engineering conversation starts now.

Frequently Asked Questions
