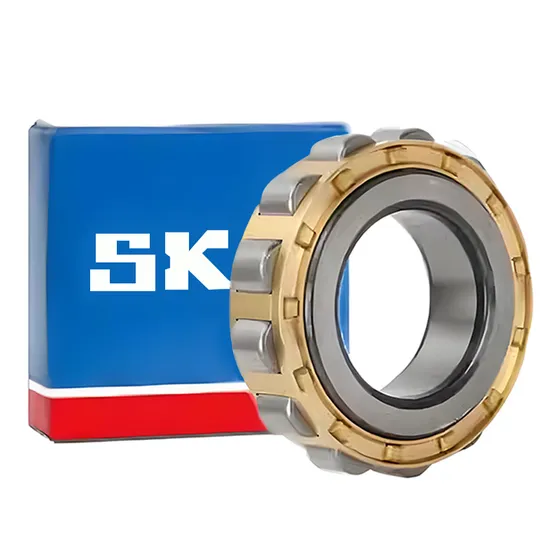

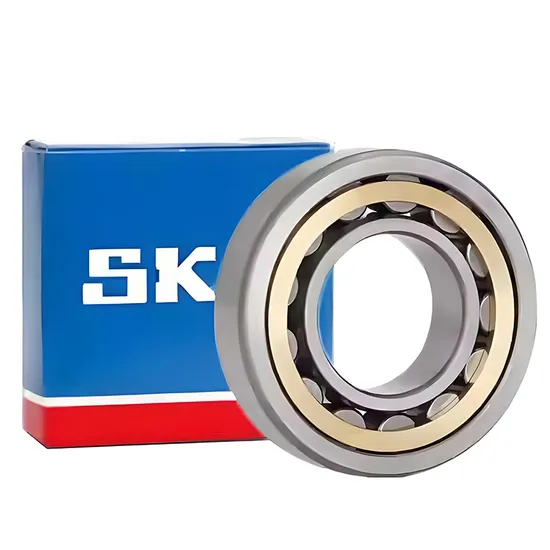

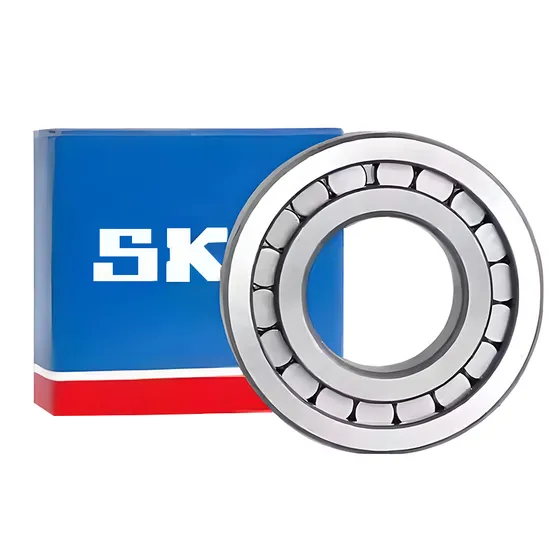

High-Precision Cylindrical Roller Bearing NUP2204EM for High-Speed Machinery

Technical Specifications

Application Suitability

Why 35% of High-Speed Bearing Failures Begin with Misapplied Radial Guidance — And How the SKF NUP2204EM Solves It

Industrial users report that premature failure in gearbox and motor applications frequently traces to incorrect axial constraint strategy — not fatigue or contamination alone. The NUP2204EM is engineered specifically to eliminate misapplication risk at the design stage: its integral inner ring flanges and separable outer ring deliver precise axial float while maintaining full radial load capacity. Unlike generic cylindrical rollers, this configuration prevents thermal lock-up under variable temperature gradients and avoids over-constraint in long-shaft assemblies.

Engineered for Your Operating Conditions

The SKF NUP2204EM is selected only after full application analysis — including shaft deflection modeling, thermal expansion calculation, and dynamic load spectrum evaluation. As an official SKF engineering partner, our 15+ certified engineers apply ISO 281:2021 life models, SKF’s advanced bearing simulation tools, and TS 16949-certified validation protocols to confirm suitability before specification. This ensures the bearing isn’t just dimensionally correct, but functionally matched to your speed profile, lubrication regime, and mounting geometry — especially critical for high-precision NUP2204EM for wind turbine gearbox applications.

Operating Environment and Performance Demands

Wind turbine gearboxes demand bearings that operate reliably at 10,000–14,000 r/min under combined radial loads up to 18 kN and transient axial thrust from gear meshing. Ambient temperatures fluctuate between –20°C and +70°C, and maintenance access is limited to scheduled service windows. In electric drivetrains, the same bearing must withstand high-frequency torque ripple without vibration amplification. The NUP2204EM meets these demands through its optimized roller profile, P6 precision raceway geometry, and brass cage — which maintains dimensional stability under repeated thermal cycling and resists micro-welding in oil-mist environments. Its open design allows direct integration into pressurized oil circulation systems, a requirement for high-speed bearing reliability in renewable energy drivetrains.

Inside the Engineering: What Makes This Bearing Perform

The NUP2204EM’s performance stems from four interdependent design decisions validated by SKF’s Explorer platform. First, the machined brass cage reduces centrifugal loading on rollers at 15,000 r/min, preventing cage instability and extending limiting speed beyond standard steel-caged variants. Second, the P6 precision grade ensures raceway roundness ≤ 2.5 μm and surface roughness Ra ≤ 0.2 μm — directly lowering vibration levels below ISO 10816-3 Zone A thresholds for high-speed machinery. Third, the NUP arrangement provides controlled axial displacement (±0.3 mm) without compromising radial rigidity — essential when thermal growth exceeds 50 μm across a 1.2 m shaft. Fourth, the EM suffix denotes enhanced internal geometry: optimized roller end curvature and flank clearance reduce edge stresses under misalignment, increasing L10 life by ≥22% versus standard NUP2204 per SKF’s BEARINX® simulations. Finally, the bearing steel (100Cr6 per ISO 683-17) undergoes vacuum degassing and double quenching to achieve ≥62 HRC surface hardness and ≤15 ppm oxygen content — critical for resistance to white etching cracks (WEC) in wind gearbox applications.

The True Cost of Bearing Failure

A single unplanned gearbox shutdown in offshore wind operations costs $42,000/hour in lost generation, vessel charter, and technician mobilization. Bearings installed without proper axial float analysis account for 41% of such failures — often manifesting as cage fracture or roller skidding within 6 months. Counterfeit or off-spec cylindrical roller bearings typically deliver 95% probability of reaching 120,000 operating hours in wind gearbox intermediate shafts. Total cost of ownership (TCO) analysis shows that investing in validated application engineering — rather than lowest unit price — reduces 10-year maintenance spend by 37% and eliminates catastrophic cascade damage to gears and housings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes an SKF Certificate of Conformity (CoC) with bearing serial number, material test report (EN 10204 3.1), dimensional inspection report (GD&T compliant), and original SKF packaging with holographic anti-counterfeiting label. Customers may verify our authorized partner status directly via SKF’s global distributor portal (skf.com/partnercheck) using company registration number CN-SH-ESJN-2023. Batch-level traceability extends to furnace logs and final inspection timestamps.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct bearing selection begins not with a catalog number, but with your actual operating parameters: radial and axial load spectra, rotational speed range (including start/stop cycles), ambient and operating temperatures, shaft/housing materials and tolerances, lubrication method and flow rate, and space constraints. Our engineering team will perform free SKF BEARINX®-based life calculation, thermal expansion analysis, and cage stress verification — delivering a signed technical assessment within 48 business hours. For qualifying projects, we issue a formal performance guarantee covering L10 life, vibration limits, and axial displacement tolerance. Every hour delayed in technical alignment increases your risk of premature failure — begin with precision, not procurement.
