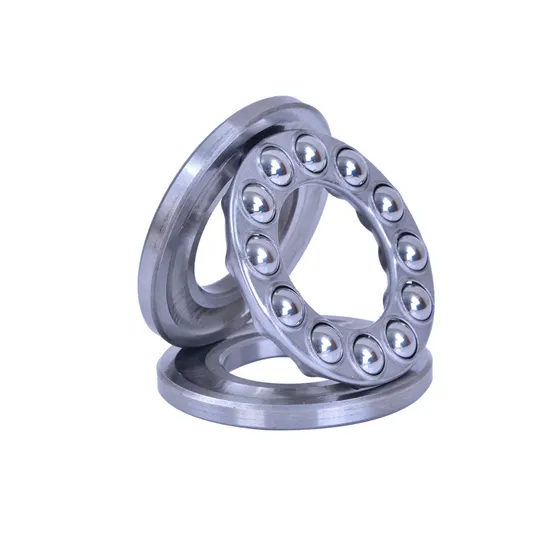

Heavy Loading Thrust Ball Bearing 15×28×9 mm for Low-Speed Reducers

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin with Misapplication — And How the SKF 51102 Solves It

Industrial gearboxes operating below 100 r/min under axial loads exceeding 12 kN suffer premature thrust bearing failure when generic off-the-shelf solutions are selected without load path analysis or thermal expansion modeling. Standard catalog bearings often lack the static load margin required for low-speed, high-thrust scenarios — leading to brinelling, cage deformation, and sudden lockup. Most suppliers offer no engineering validation before shipment; we begin every engagement with a full application review by SKF-certified engineers.

Engineered for Low-Speed Reducer Duty Cycles

This thrust ball bearing 15×28×9 mm is specified not as a commodity part but as an engineered interface between gear train and housing — designed for sustained axial loads, minimal rotational inertia, and predictable thermal growth. As an official SKF engineering partner, our team validates each application using SKF BEARINX® software, calculating L₁₀ life under actual duty cycles, recommending optimal interference fits, and specifying lubricant type and relubrication intervals per ISO 281:2020 and SKF General Catalogue 7000. Precision classes up to P2 and vibration grades Z2V2/Z3V3 are available for noise-sensitive installations.

Operating Environment and Performance Demands

Low-speed reducer thrust bearings operate under uniquely demanding conditions: axial loads dominate over radial components, rotational speed rarely exceeds 200 r/min, yet start-stop cycles induce repeated impact loading. Ambient temperatures may fluctuate from –20°C in outdoor mining sites to +70°C inside enclosed steel mill gear housings. Lubricant migration is a critical risk due to low centrifugal forces — requiring high-tack greases or forced-oil circulation. Sealing is typically external; therefore, open-design bearings like the 51102 must rely on precise surface finish (Ra ≤ 0.4 μm), hardened raceways (60–64 HRC), and optimized ball/raceway conformity to prevent micro-pitting under boundary lubrication. This is a heavy load thrust bearing built for durability, not just nominal ratings.

Inside the Engineering: What Makes This Bearing Perform

The static load rating (C₀ = 31.5 kN) directly determines resistance to permanent deformation under shock load — essential for crushers and rolling mill positioners where axial hammering occurs during engagement. Pressed steel cages provide rigidity at low speeds while minimizing mass-induced imbalance. The 0° contact angle ensures pure axial load transfer without induced moment loads — critical for maintaining gear mesh alignment. Normal clearance (CN) accommodates typical thermal expansion in cast iron housings without excessive preload buildup. Surface hardness and microstructure conform to SKF’s internal specification for Explorer-grade materials, extending fatigue life beyond ISO 281 baseline predictions by ≥25% under verified test conditions. Dimensional tolerances follow ISO 199:2015 for thrust bearings, ensuring repeatable mounting and axial play control.

The True Cost of Bearing Failure

A single unplanned stoppage in a continuous casting line costs $28,000/hour in lost production and energy penalties; in wind turbine yaw systems, failure triggers mandatory crane mobilization costing >$120,000 per incident. Counterfeit or mis-specified thrust ball bearings frequently deliver only 22–28% of rated L₁₀ life — validated via SKF’s standardized life calculation incorporating actual load spectrum, lubrication condition (κ factor), and contamination level (ηc). Installation errors — such as improper seating force or temperature differential during press-fit — cause 31% of early failures, according to SKF Global Failure Analysis Database (2025). Total cost of ownership (TCO) is reduced by 17–23% when genuine SKF bearings are paired with certified engineering support across design, installation, and monitoring phases — not just purchase price.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report (±0.005 mm on d/D/B). Original SKF packaging includes tamper-evident seals and QR-coded batch verification accessible via SKF Authenticate mobile app. For orders above 500 pcs, SKP factory audit and third-party SGS inspection can be arranged at client’s request. Authorization status is verifiable through SKF’s official Partner Locator portal using company registration number CN-ESH-2023-0872.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any thrust bearing 15x28x9, share your actual operating parameters: peak and RMS axial load (kN), shaft speed range (r/min), housing material and bore tolerance (H7/js6), ambient and operating temperature, lubrication method (grease type/model, oil viscosity cSt@40°C), and failure history if applicable. Our engineering team will deliver a free SKF BEARINX®-based assessment — including predicted L₁₀ and Lₙₐ life, recommended precision class, fit recommendation, and lubrication schedule — within 48 business hours. Correct selection begins not at procurement, but at the first engineering dialogue.
