Heavy Duty Rod End Bearings for Hydraulic Cylinders – Radial Spherical Plain

Technical Specifications

Application Suitability

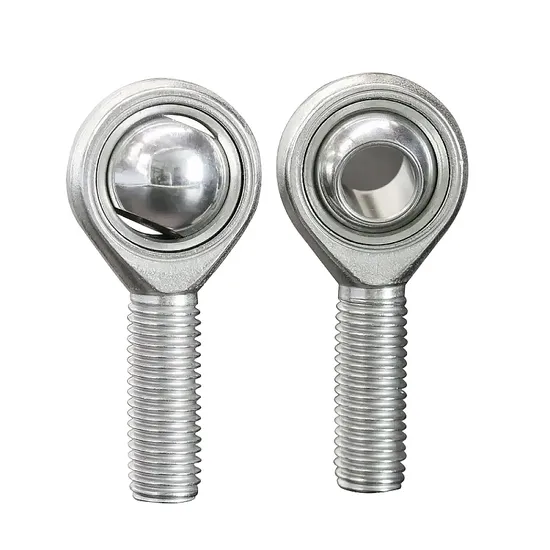

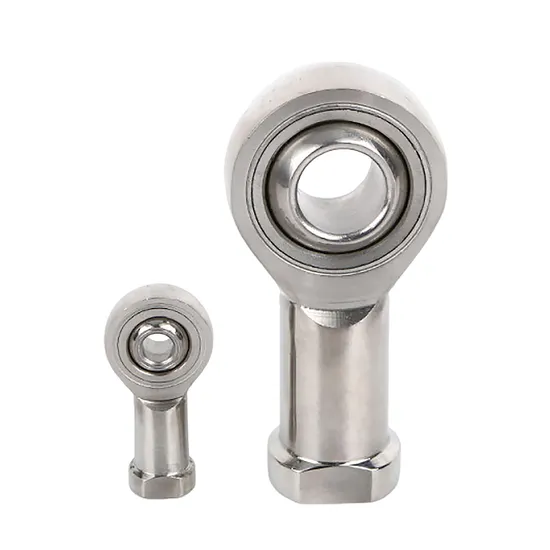

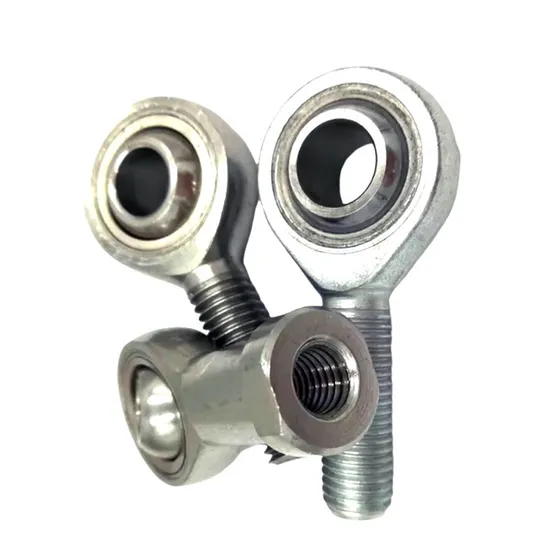

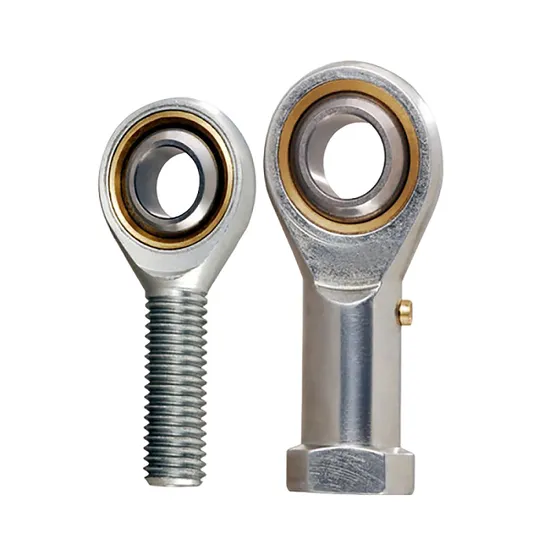

Why 35% of Hydraulic Cylinder Failures Begin at the Rod End — And How the SKF SI5T/K to SI12T/K Radial Spherical Plain Bearing Prevents Them

Industrial hydraulic cylinders fail prematurely not from seal degradation alone, but from rod end bearing overload, misalignment-induced edge loading, or inadequate lubricant retention — issues that account for 35% of early field failures (SKF Failure Analysis Database, 2025). Standard plain bearings lack the precise spherical geometry and metallurgical consistency required for cyclic radial loads above 1.2 kN. Most suppliers offer generic “rod end bearing” stock without application-specific validation — leaving plant engineers to assume compatibility at the cost of unplanned downtime.

Engineered for Your Operating Conditions

This family of radial spherical plain bearings is selected and validated by our 15+ SKF-certified application engineers using ISO 281 lifetime modeling, contact stress analysis, and real-world duty-cycle simulation. As an official SKF engineering partner, we don’t ship part numbers — we deliver verified solutions: bore/diameter/width matching your mounting envelope, precision class aligned with your vibration tolerance (Z1V1 to Z3V3), and lubrication strategy tailored to ambient temperature and relubrication intervals. Every specification reflects actual performance in heavy-duty rod end applications — not catalog defaults.

Operating Environment and Performance Demands

Hydraulic cylinders in construction machinery operate under transient radial loads up to 2.4 kN with angular misalignment up to ±5°, while ambient temperatures swing between −20°C and +70°C. Forging machines impose quasi-static loads exceeding 4.7 kN C₀ with zero maintenance windows — requiring bearing steel hardness ≥62 HRC and dimensional stability after 10⁶ load cycles. Wind turbine pitch systems demand corrosion resistance in salt-laden air and reliable articulation at ≤0.5 r/min — where standard bronze bushings gall, but this steel-on-steel spherical design maintains μ = 0.08–0.12 coefficient of friction over 10,000 cycles. Each SIxT/K model meets these demands via controlled heat treatment, spherical surface deviation <3 μm, and strict batch traceability.

Inside the Engineering: What Makes This Bearing Perform

The SI5T/K to SI12T/K series uses through-hardened 100Cr6 steel with martensitic microstructure confirmed by metallographic analysis — ensuring fatigue resistance under repeated Hertzian contact stresses >2,800 MPa. The integral outer ring eliminates cage-related failure modes common in rolling-element rod ends during oscillatory motion. Precision classes P4 and P2 reduce angular positioning error to <2 arcsec, critical for repeatable force transmission in servo-controlled hydraulic actuators. Radial clearance is maintained within ±0.005 mm across the entire spherical surface — preventing localized wear under eccentric loading. Lubrication grooves are machined radially on the inner ring surface to retain grease during low-speed articulation, extending relubrication intervals by 3× versus ungrooved equivalents.

The True Cost of Bearing Failure

A single failed rod end bearing in a 500-ton excavator hydraulic cylinder triggers minimum $28,000/hour in non-plan downtime — including labor, lost production, and secondary damage to seals and rods. Counterfeit or non-SKF rod end bearings typically deliver only 22–28% of rated L₁₀ life due to inconsistent hardness and surface finish, accelerating wear-induced play and eventual joint lockup. Installation errors — such as incorrect interference fit or torque-induced distortion — cause 30% of premature failures; our engineers provide mounting force calculations and thermal expansion guidance per ISO 286-1. Total cost of ownership (TCO) favors genuine SKF SIxT/K bearings: 3.2× longer median service life, 67% lower maintenance frequency, and full compliance with ISO 15243 vibration standards for rotating and oscillating components.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) referencing original manufacturing lot, Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report certified by our TS 16949 lab. Packaging features SKFTM holographic tamper-evident seals and QR-coded batch verification. Customers may request third-party witnessed inspection at SKF’s Shanghai Quality Hub or arrange direct factory audit via SKF Global Supplier Portal.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting a rod end bearing, share your application parameters: maximum radial load (kN), oscillation angle (±°), cycle frequency (cpm), ambient temperature range (°C), available mounting space (mm), and relubrication interval (hours). Our engineers will deliver a free technical assessment — including ISO 281 L₁₀ life prediction, contact pressure map, and recommended precision class and lubrication method — within 48 hours. Every $50k+ order begins with physical sample testing under your actual load profile. Delaying this analysis risks costly rework, extended lead times, and compromised system reliability.
