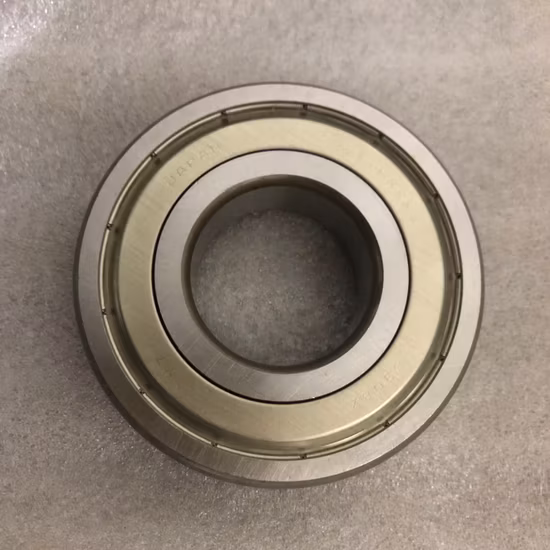

Genuine NTN 6414zz Deep Groove Ball Bearing Original Factory Direct Sale

Authenticated via official app — Every 6414zz NTN batch includes a scannable QR code linking directly to the manufacturer's verification database.

Technical Specifications

Application Suitability

Why Overlooking Suffixes Destroys Motor Shafts

Matching the base number is never enough to prevent thermal binding.

Sourcing teams often focus solely on the 70x180x42 mm dimensions, assuming any deep groove variant will perform equally. In my distribution years in Dongguan, I watched an entire batch of motors fail because the procurement team accepted standard CN internal clearance instead of the required C3. As the motor heated up, the inner ring expanded, eliminating the operational gap and causing the bearing to seize completely. When specifying a NTN 6414zz deep groove ball bearing, ignoring the thermal expansion requirements or the specific shielding needs leads to catastrophic field returns .

Aligning Shielding with Motor Environments

Selecting the correct NTN 6414zz deep groove ball bearing requires matching the non-contact shields to the specific contamination profile of the equipment. The double metal shield configuration keeps abrasive dust out of the raceway without introducing the friction penalties associated with rubber seals. This precise alignment ensures the motor maintains its designed efficiency while protecting the internal grease from particulate degradation.

Managing Thermal and Frictional Demands

Electric motor shafts endure continuous radial loads combined with high rotational speeds, generating significant internal heat. The internal clearance must accommodate this thermal expansion to prevent the rolling elements from skidding or binding against the raceways. Furthermore, the chosen noise and vibration grade directly influences the acoustic signature of the final assembly, making the selection of the appropriate Z/V class critical for applications requiring quiet operation .

Decoding the ZZ Configuration and Noise Grades

The ZZ suffix indicates double metal shields, which provide a narrow clearance gap between the shield and the inner ring. This non-contact design excels in high-speed electric motor applications where friction must be minimized, though it requires a relatively clean operating environment compared to contact seals. Additionally, the available Z1V1 through Z4V4 noise and vibration grades allow engineers to specify the exact acoustic limits required. Higher grades undergo stricter sorting processes to eliminate geometric irregularities that cause audible hums during high-speed rotation.

The Hidden Costs of Incorrect Clearance Selection

Installing a standard clearance bearing in a high-temperature motor application inevitably leads to unplanned downtime and severe shaft damage. According to failure analysis frameworks, operating with negative internal clearance accelerates fatigue and generates excessive heat, ultimately destroying the cage and raceways . This premature failure not only voids equipment warranties but also forces costly emergency replacements that halt entire production lines.

Securing Your Supply Chain Against Substitutes

We prevent cross-reference errors by verifying the base designation, internal clearance, and shield type simultaneously, ensuring you never receive a standard shielded unit when a specific clearance variant is required. Our inventory provides full batch traceability back to the manufacturer, eliminating the risk of counterfeit rings with compromised metallurgy. Furthermore, our technical team reviews your application parameters to confirm that the selected noise grade and shielding configuration actually match your operational environment.

Documentation & Authenticity

• Certificate of Conformity matching the specific 6414zz NTN batch number.
• Traceability records linking the ZZ shielded units to the original production lot.
• QR codes for instant authenticity verification via the official brand application.
• Dimensional inspection reports confirming the 70x180x42 mm tolerances.
• Running accuracy certificates validating the selected Z/V noise and vibration grade.

Storage, Handling & Mounting

• Store the ZZ shielded units in their original packaging to prevent dust ingress before installation.
• Avoid using metal tools directly on the 180 mm outer ring to prevent shield deformation.
• Maintain strict humidity control to protect the unshielded inner bore from corrosion prior to pressing.
• Use induction heaters for the 70 mm inner ring to avoid damaging the metal shields during mounting.
• Verify the specific Z/V noise grade marking on the box before installing in quiet-operation motors.

Preparing Your Technical Inquiry

To ensure the selected bearing meets your exact operational demands, please provide the radial and axial load profiles, continuous operating speeds, and expected thermal conditions. Sharing the original equipment manufacturer part numbers allows our engineering team to perform a comprehensive cross-reference check, verifying that the internal clearance and shielding perfectly align with your machinery's design specifications.

Frequently Asked Questions

Q: How can I verify the authenticity of the received bearings?
A: Each unit features a unique QR code that links directly to the manufacturer's official mobile application. Scanning this code confirms the production batch, origin, and distribution path, ensuring the bearing is genuine and not a counterfeit with cloned packaging or substandard metallurgy.

Q: Why is it critical to check clearance alongside the base designation?
A: Base numbers only define the physical dimensions. If a motor requires C3 clearance for thermal expansion but receives standard CN, the inner ring will expand and eliminate the internal gap during operation. This causes thermal binding, excessive friction, and rapid catastrophic failure of the bearing components.

Q: What is the difference between ZZ metal shields and rubber seals?
A: The ZZ metal shields provide non-contact protection against large dust particles while minimizing friction, making them ideal for high-speed electric motors. Rubber seals offer better protection against fine dust and moisture but generate higher friction and heat, which can limit the maximum operational speed of the equipment.

Q: How do the Z1V1 to Z4V4 grades affect motor performance?
A: These grades classify the bearing based on strict acoustic and vibration testing. Higher grades like Z3V3 or Z4V4 indicate tighter manufacturing tolerances and smoother raceway finishes, which significantly reduce the audible hum and mechanical vibration transmitted to the motor housing during high-speed rotation.
