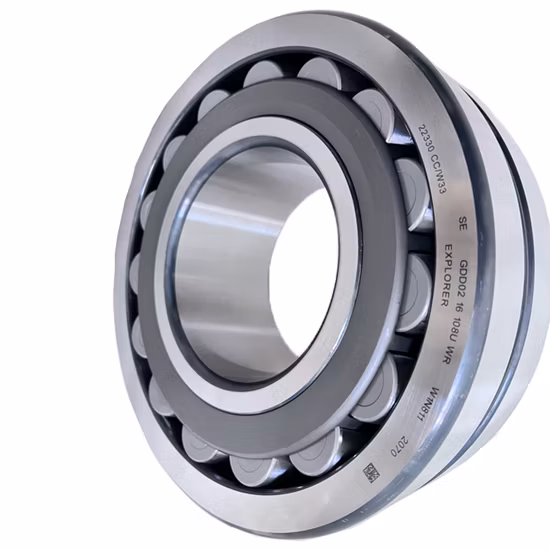

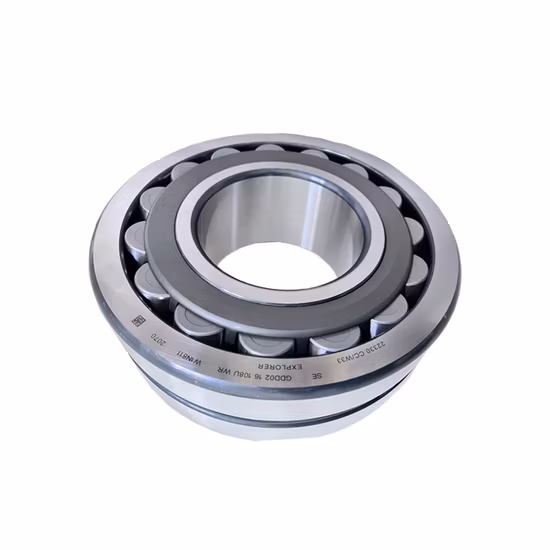

Genuine 22230 22236 C3 W33 Spherical Roller Bearing for Mining Construction Machinery

Full Brand Authorization — A single procurement order covers mixed-brand requirements for these heavy-duty mining bearings without coordinating multiple suppliers.

Technical Specifications

Application Suitability

When Base Numbers Match but Field Conditions Dictate Failure

A standard clearance assumption is the fastest route to thermal seizure in high-friction environments. The 22230 22236 C3 W33 spherical roller bearing prevents this by explicitly defining internal geometry and lubrication pathways that standard catalog listings often obscure.

In crushing operations across East Africa, I have dismantled countless spherical roller bearings where the base designation matched perfectly, yet the inner ring was literally welded to the shaft. Standard CN clearance leaves no room for the thermal expansion generated by continuous impact loads and ambient heat. When procurement teams focus solely on the base number and ignore the C3 and W33 suffixes, the resulting thermal binding destroys not just the bearing, but the entire shaft assembly .

Matching Suffix Precision to Mining Realities

Securing the correct 22230 22236 C3 W33 spherical roller bearing requires looking past the primary dimensions to verify the exact internal configuration. Our technical review process ensures that the C3 radial clearance and W33 lubrication features are strictly validated against your specific equipment requirements, eliminating the guesswork that leads to premature field failures.

The Hidden Costs of Ignoring Suffix Details

Heavy machinery operates under combined radial and axial loads with severe misalignment, demanding a lubrication strategy that reaches the rolling elements directly. Without the W33 outer ring groove and holes, grease applied to the housing struggles to penetrate the load zone, leading to localized starvation and cage failure. Simultaneously, the C3 clearance compensates for the interference fits required to prevent inner ring creep under heavy shock loads . Neglecting these specific design features results in catastrophic downtime, voided equipment warranties, and massive replacement costs far exceeding the initial component price.

Decoding the C3 and W33 Engineering Logic

The C3 designation indicates a radial internal clearance greater than the normal group, which is absolutely critical when the inner ring is mounted with a tight interference fit on the shaft. This fit reduces the internal clearance; starting with C3 ensures the operational clearance remains positive once the equipment reaches its thermal equilibrium. The W33 suffix signifies an annular* outer ring. This allows maintenance crews to inject fresh grease directly into the bearing interior, flushing out abrasive rock dust and moisture that inevitably breach the housing seals in mining environments.

The True Cost of the Wrong Clearance Selection

Installing a normal clearance bearing in a high-temperature, heavy-load application guarantees unplanned downtime. According to failure analysis frameworks like ISO 15243, thermal instability and smearing are direct consequences of inadequate internal clearance under operational heat . The resulting shaft damage often requires complete machining center intervention, turning a simple bearing swap into a multi-week production halt.

Why Our Cross-Reference Protocol Matters

We do not merely match the base numbers 22230 and 22236; our cross-reference protocol strictly verifies the C3 clearance and W33 lubrication suffixes across all major international brands to prevent thermal binding. Batch traceability is provided for every unit, allowing you to verify the manufacturing origin and material certifications directly. We supply mixed-brand orders from a single source, eliminating the logistical friction of managing multiple vendors for a single maintenance shutdown. Our pre-shipment inspections confirm dimensional accuracy, ensuring the bearings fit the housing and shaft tolerances exactly as engineered.

Documentation & Authenticity

• Certificate of Conformity confirming the exact C3 clearance and W33 lubrication specifications.
• Batch and lot traceability linking each bearing to the manufacturer's original production run.
• QR verification via brand official apps to instantly rule out cloned codes and counterfeit stock.
• Material test report validating the metallurgical composition of the rings and rollers.
• Dimensional and running accuracy inspection report confirming bore and OD tolerances before dispatch.
• Country-of-origin documentation to satisfy customs and project compliance requirements.

Storage, Handling & Mounting

• Retain original VCI packaging until mounting to protect the W33 lubrication holes from ambient moisture and dust ingress.
• Use induction heaters with automatic demagnetization for the cylindrical bore to preserve the precise C3 operational clearance.
• Ensure the W33 outer ring holes align perfectly with the housing grease supply channels during installation.
• Handle the double row assemblies with clean cotton gloves to prevent corrosive sweat marks on the exposed roller profiles.
• Store horizontally in a climate-controlled environment to prevent false brinelling on the large-diameter rolling elements.

Preparing Your Technical Inquiry

To ensure precise application matching, please provide the radial and axial load profiles, operational speeds, and expected thermal gradients for your equipment. Supplying the original OEM equipment number or housing dimensions allows our engineering team to perform a rigorous cross-reference check and L10 life calculation. This data ensures the selected configuration perfectly aligns with your specific maintenance intervals and environmental challenges.

Frequently Asked Questions

Q: Why must both the C3 clearance and W33 suffix be verified during cross-referencing?
A: Matching only the base dimensions ignores critical internal geometry. The C3 clearance prevents thermal seizure under heavy interference fits, while the W33 feature ensures adequate grease flow in contaminated environments. Missing either suffix drastically reduces operational life in heavy machinery.

Q: How do we verify the batch authenticity of these spherical roller bearings?
A: Every bearing is supplied with batch traceability documentation. You can scan the manufacturer's QR code using their official mobile application to instantly verify the production date, origin, and specification compliance, effectively eliminating the risk of counterfeit products.

Q: What is the selection boundary between C3 and standard CN clearance in crushing equipment?
A: Standard CN clearance is suitable for light loads and stable temperatures. In crushing applications involving heavy shock loads, tight shaft fits, and elevated operational heat, C3 is mandatory to absorb thermal expansion and prevent the internal clearance from collapsing to zero.

Q: How does the W33 outer ring design impact relubrication intervals?
A: The W33 annular groove and three distribution holes channel fresh grease directly into the load zone. This efficiently flushes out abrasive particulates and maintains a healthy lubricant film, noticeably extending maintenance intervals compared to bearings lacking this internal routing feature.

Q: How do you ensure alternative brands match the exact OEM requirements?
A: Our technical team cross-references the base designation alongside every suffix, including C3 and W33, to guarantee identical internal clearances and lubrication features. We validate the dimensional tolerances and load ratings to ensure seamless interchangeability without compromising equipment reliability.
