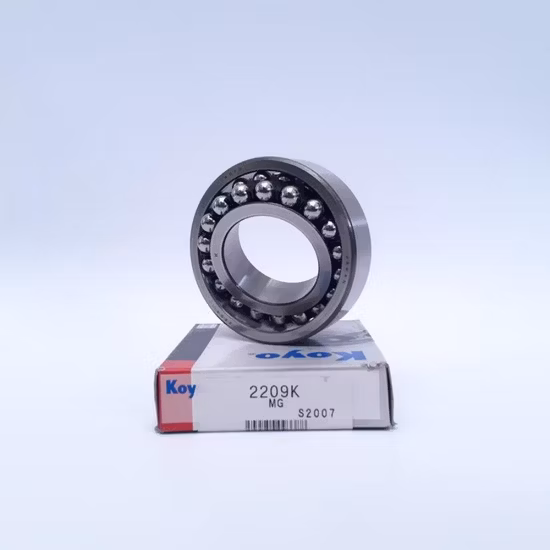

Genuine 2209K-2RS Self Aligning Ball Bearing Koyo Timken NACHI

Batch-Level Traceability — Every 2209K-2RS unit shipped includes verifiable manufacturer lot documentation to eliminate counterfeit risks in critical automotive and industrial drives.

Technical Specifications

Application Suitability

Overlooking the 2209K-2RS Self-Aligning Ball Bearing Suffixes Causes Field Failures

Matching the base number while ignoring the K and 2RS suffixes guarantees premature seizure in misaligned or contaminated environments.

Procurement errors frequently occur when buyers source standard deep groove ball bearings instead of the correct 2209K-2RS self-aligning ball bearing for motorcycle rear wheels or gearbox shafts. I have seen motorcycles operating in high-temperature, sand-heavy environments suffer rapid hub failure because the replacement part lacked the self-aligning inner ring geometry and proper rubber sealing. When cross-referencing across Koyo, Timken, or NACHI catalogs, failing to verify the 1:12 tapered bore and double-sided contact seals leads to improper adapter sleeve mounting and immediate lubricant washout .

Aligning the 2209K-2RS Self-Aligning Ball Bearing with Misaligned Drives

Shaft deflection and housing bore misalignment are common in material handling and automotive applications. The 2209K-2RS self-aligning ball bearing compensates for these angular errors, preventing edge loading on the raceways. By sourcing through authorized channels, we ensure the internal geometry and seal friction characteristics match your specific OEM requirements, avoiding the downtime caused by incorrectly substituted rigid bearings.

Environmental Challenges and Sealing Integrity

In dusty or humid conditions, maintaining lubrication integrity is critical for long service life. The 2RS suffix indicates double-sided contact rubber seals that effectively block fine particulate ingress while retaining factory-applied grease. Unlike non-contact metal shields, these rubber seals provide superior protection against moisture and abrasive sand, though they introduce slight frictional heat. This trade-off is essential for motorcycle wheels and conveyor systems where contamination is the primary cause of early failure .

Decoding the Tapered Bore and Seal Configuration

The "K" in the designation specifies a 1:12 tapered bore, designed to be mounted on an adapter sleeve or a tapered shaft seat. This configuration allows precise adjustment of radial internal clearance during installation by measuring the drive-up distance. The "2RS" suffix confirms the presence of contact rubber seals on both sides. When performing cross-brand interchange, it is critical to verify that the replacement unit maintains this exact 1:12 taper ratio and seal contact profile, as base dimension matches alone will result in improper clamping forces or seal drag.

The Hidden Costs of Incorrect Suffix Substitution

Installing an open or incorrectly sealed variant in a contaminated environment leads to rapid grease degradation and catastrophic raceway spalling. Furthermore, forcing a cylindrical bore bearing onto a tapered shaft, or ignoring the adapter sleeve requirements for a K-designation, causes severe mounting stresses and inner ring cracking. These failures result in unplanned downtime, voided equipment warranties, and costly secondary damage to adjacent gearbox or hub components .

Why Procurement Verification Matters for This Designation

Our authorized multi-brand coverage allows you to consolidate Koyo, Timken, and NACHI requirements in a single order without compromising traceability. We strictly verify that cross-referenced equivalents match the 1:12 taper and 2RS seal specifications, not just the basic 2209 dimension. Every batch is backed by manufacturer lot traceability and QR verification, ensuring the inner ring hardness and seal elastomer quality meet original equipment standards. We also provide application-based selection reviews to confirm the bearing suits your specific load and misalignment parameters.

Documentation & Authenticity

• Certificate of Conformity confirming the 1:12 tapered bore and 2RS seal specifications.
• Manufacturer batch and lot traceability documents linked to the specific 2209K-2RS production run.
• Official brand app QR codes for immediate on-site authenticity verification.
• Material test reports validating the elastomer compounds used in the double-sided rubber seals.
• Dimensional and running accuracy inspection reports confirming tolerance compliance before dispatch.
• Country-of-origin documentation for customs clearance and supply chain transparency.

Storage, Handling & Mounting

• Retain original factory packaging until installation to protect the 2RS rubber seals from ozone and UV degradation.
• Store in a temperature-stable environment to prevent condensation from compromising the pre-packed grease inside the sealed unit.
• Use clean, lint-free gloves when handling to avoid transferring skin oils onto the tapered bore surface.
• Measure the drive-up distance carefully when mounting the K-designation on an adapter sleeve to achieve the correct residual radial clearance.
• Do not attempt to wash or re-lubricate the 2RS variant, as this will destroy the factory seal contact lips.
• Ensure the adapter sleeve locknut is properly secured to prevent the tapered inner ring from creeping on the shaft under load.

Technical Inquiry Guidelines

To facilitate accurate technical review and cross-referencing, please provide your specific operating parameters, including radial and axial loads, rotational speed, and expected shaft misalignment angles. Sharing the OEM equipment number or the exact dimensions of your adapter sleeve allows our engineering team to verify the 1:12 taper compatibility and confirm the suitability of the 2RS sealing arrangement for your environmental conditions.

Frequently Asked Questions

Q: What parameters must align when cross-referencing the 2209K-2RS across different brands?
A: Beyond the base 2209 dimension, you must verify the "K" suffix for the exact 1:12 tapered bore ratio and the "2RS" suffix for double-sided contact rubber seals. Equally critical is matching the internal radial clearance class and cage material, as overlooking these details causes thermal binding or seal failure in the field.

Q: How do you measure radial clearance reduction when mounting the tapered bore?
A: When driving the 2209K-2RS onto an adapter sleeve, measure the drive-up distance or the reduction in internal clearance using a feeler gauge or dial indicator. Proper clamping ensures the inner ring expands correctly without eliminating the operational clearance required for thermal expansion and misalignment compensation.

Q: When should I choose rubber seals over metal shields for this self-aligning bearing?
A: The 2RS rubber seals are necessary in environments with heavy dust, moisture, or abrasive particles, such as motorcycle hubs or agricultural conveyors. While metal shields offer lower friction for high-speed applications, they cannot prevent fine particulate ingress, making rubber seals the mandatory choice for contaminated operating conditions.

Q: How can I verify the authenticity of the 2209K-2RS upon delivery?
A: Authentic units feature verifiable batch markings and QR codes that can be scanned using the respective brand’s official mobile application. We also supply comprehensive manufacturer lot traceability documentation and material test reports to confirm the bearing's origin and material integrity.

Q: What is the acceptable angular misalignment for this self-aligning ball bearing?
A: Self-aligning ball bearings typically accommodate static angular misalignment up to a few degrees, depending on the specific internal geometry and clearance class. Providing your exact shaft deflection data allows us to confirm if the 2209 series compensation range is sufficient for your specific application.
