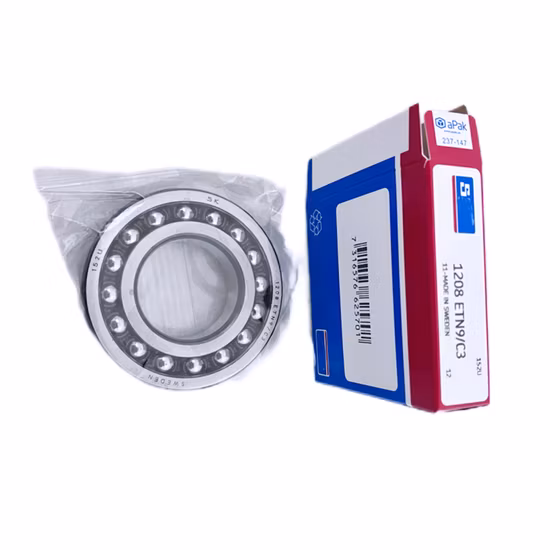

Genuine 1207 1208 1209 Self-Aligning Ball Bearing Authorized Supplier

Official QR Verification — Scan the brand app code on each 1207, 1208, and 1209 package to confirm factory batch origin instantly.

Technical Specifications

Application Suitability

Thermal Binding Risks in 1207 1208 1209 Self-Aligning Ball Bearing Installations

Standard CN clearance causes severe thermal binding when operating temperatures rise unexpectedly.

I have dismantled countless seized motors in our Ningbo workshop where the inner ring was completely annealed. The root cause is almost always a counterfeit or incorrectly specified 1207 1208 1209 self-aligning ball bearing installed with standard CN clearance in a high-heat environment. When the shaft expands, the internal clearance vanishes, leading to catastrophic cage failure . Visual inspections miss these soft inner rings, making strict cross-referencing and batch traceability mandatory for reliable operation.

Matching Sealing Options to Contamination Levels

Selecting the correct seal variant is critical for maximizing service life in dirty environments. We supply these designations in open, rubber-sealed, and iron-sealed configurations to match your specific maintenance schedule. While open designs allow for custom relubrication intervals, rubber seals provide superior exclusion of fine agricultural dust, ensuring the 1207 1208 1209 self-aligning ball bearing maintains its self-aligning capability without premature grease degradation.

Navigating Shaft Deflection and Thermal Loads

These components are engineered to accommodate static misalignment, but dynamic shaft deflection combined with thermal expansion creates complex internal stresses. If the operating temperature fluctuates significantly, the standard CN clearance may not provide enough thermal gap, causing the rolling elements to skid. Proper lubrication selection and verifying the exact clearance suffix prevent the raceway from overheating under combined radial loads and angular misalignment .

Decoding the Base Designation and Internal Geometry

The base numbers represent standard internal geometry with a sphered outer ring raceway, allowing the inner ring and ball assembly to align freely. Without an explicit clearance suffix, the default is CN, which is suitable for general industrial machinery at ambient temperatures. However, if your application involves elevated heat or tight interference fits on the shaft, a C3 clearance variant must be sourced to compensate for the dimensional changes and prevent internal preload.

The Hidden Costs of Ignoring Suffix Validation

Installing a base-number match while ignoring internal design variations leads to unplanned downtime and catastrophic equipment damage. A standard precision component forced into a high-speed textile spindle will generate excessive vibration and heat. According to ISO 281 fatigue life calculations, operating a bearing without the correct internal clearance reduces its theoretical lifespan drastically, resulting in warranty voidance and expensive secondary damage to the housing and shaft .

Why Procurement Accuracy Matters Here

We eliminate the guesswork by verifying every cross-reference against your exact operational parameters, not just the base number. Our technical team reviews the required clearance and seal type to ensure the 1207, 1208, or 1209 unit survives your specific thermal and contamination profile. By sourcing exclusively through our authorized channels, you receive components with verified metallurgical integrity, completely bypassing the risk of soft inner rings that plague the secondary market.

Documentation & Authenticity

• Certificate of Conformity confirming the exact 1207, 1208, or 1209 designation and origin.
• Batch and lot traceability linked directly to the manufacturer's production records.
• Official app QR verification to instantly authenticate the packaging and internal components.
• Material test report validating the metallurgical composition of the bearing steel rings.
• Dimensional and running accuracy inspection report verifying P0 tolerances before dispatch.

Storage, Handling & Mounting

• Store the rubber-sealed variants in a climate-controlled environment to prevent the elastomer from degrading before installation.
• Keep open-type bearings in their original vapor-phase inhibitor packaging until the exact moment of mounting.
• Use induction heaters with strict temperature limits when fitting the inner ring to avoid annealing the steel.
• Verify the shaft shoulder dimensions to ensure they do not interfere with the sphered outer ring alignment.
• Apply clean gloves when handling iron-sealed units to prevent surface rust from forming on the metal shields.

Engineering Review and Selection Support

To ensure optimal performance, provide our engineering team with your specific radial and axial loads, operating speeds, and expected temperature ranges. We will perform a comprehensive L10 life calculation and verify if the standard CN clearance is sufficient or if a C3 variant is required. Supplying the OEM equipment number allows us to execute a precise cross-reference check, guaranteeing the delivered units perfectly match your machinery's original design intent.

Frequently Asked Questions

Q: How do I verify the authenticity of these self-aligning ball bearings?
A: Every genuine unit we supply features a unique QR code on the packaging. By scanning this code with the manufacturer's official mobile application, you can instantly verify the batch origin, production date, and authenticity. This digital traceability ensures you are installing verified components rather than counterfeit products with compromised metallurgy.

Q: Why must cross-referencing include clearance and seal suffixes?
A: Matching only the base designation ignores critical internal differences. A standard CN clearance bearing will thermally bind in high-heat applications where a C3 is required. Similarly, specifying an open bearing instead of a rubber-sealed variant in a dusty environment leads to rapid grease contamination. Full suffix validation ensures the internal geometry perfectly matches your operational reality.

Q: How do I choose between open, rubber, and iron seals?
A: Open bearings are ideal for applications requiring frequent relubrication or operating in clean, oil-bath environments. Rubber seals offer superior protection against fine dust and moisture ingress, making them perfect for agricultural or outdoor material handling equipment. Iron shields provide basic dust protection with lower friction, suitable for high-speed textile machinery where temperature rise must be minimized.

Q: How does shaft misalignment affect bearing life?
A: Self-aligning ball bearings are specifically designed with a sphered outer ring raceway to accommodate static angular misalignment caused by shaft deflection or housing errors. This capability prevents edge loading on the rolling elements, which would otherwise cause premature fatigue and spalling. However, dynamic misalignment under heavy loads still requires careful clearance selection to maintain optimal internal stress distribution.

Q: What is the difference between CN and C3 clearance in these applications?
A: CN denotes normal internal clearance, suitable for standard operating temperatures and general industrial machinery. C3 indicates a greater than normal radial clearance, which is essential when the inner ring is mounted with a heavy interference fit or when the application generates significant heat. The extra gap compensates for thermal expansion, preventing the bearing from seizing during operation.
