Deep Groove Ball Bearings 6815/6816/6817 for Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Bearing Failures Begin with Incorrect Selection — And How the SKF 6815/6816/6817 Prevents It

Automotive OEMs and Tier-1 suppliers face escalating reliability demands: EV drivetrains operate at 18,000–22,000 r/min with tight NVH budgets; EPS systems require <0.8 μm runout under dynamic load; and thermal gradients across bearing seats can exceed 45°C during transient duty cycles. Yet 35% of early-life bearing failures in automotive applications trace directly to misaligned clearance selection, inadequate precision grading, or unvalidated lubricant compatibility — not material defect. Generic supplier data sheets rarely address these interdependent variables.

Engineered for Your Operating Conditions

The SKF 6815, 6816, and 6817 deep groove ball bearings are not off-the-shelf components — they are application-specific solutions validated by our 15+ SKF-certified engineers against ISO 281:2021 life models, SKF BEARINX® load distribution analysis, and real-world thermal expansion profiles. As an official SKF engineering partner, we deliver more than a part number: we provide documented bore/shaft fit recommendations (e.g., k5 for 6817 in aluminum-housed EPS motors), grease type and fill volume per DIN 51825, and predicted L₁₀ life under your exact radial+axial load spectrum. All backed by ISO 9001 and IATF 16949 certified quality control.

Operating Environment and Performance Demands

These bearings serve critical rotating interfaces where failure is non-negotiable: electric power steering motors demand sub-micron vibration stability (<2.5 μm RMS acceleration at 10 kHz) and continuous operation at 150°C ambient near inverters; transmission synchronizer hubs endure combined axial thrust (±12 kN) and moment loads during gear engagement; and auxiliary compressors operate under oil-contaminated conditions with pulsed pressure loads. The 6815/6816/6817 series meets these demands through optimized raceway curvature, hardened raceway surfaces (≥60 HRC), and precision-ground shoulders that maintain dimensional stability within ±1.5 μm under preload — essential for maintaining contact angle integrity in high-speed radial+axial loading.

Inside the Engineering: What Makes This Bearing Perform

Dynamic Load Rating (C) is not theoretical: for the 6817 (85×110×13 mm), C = 37.5 kN enables L₁₀ life ≥15,000 hours at 5,000 r/min and 8.2 kN radial load — verified using SKF’s adjusted rating model incorporating contamination factor (η_c) and lubrication condition (κ). Precision class P5 (ABEC-5) ensures maximum deviation ≤3 μm in bore diameter and ≤5 μm in outer ring roundness — directly limiting high-frequency vibration modes that accelerate raceway micro-pitting. Radial clearance C3 (0.025–0.041 mm) compensates for thermal growth in aluminum housings when ΔT > 40°C, preventing unintended preload escalation. Pressed steel cages provide rigidity at speeds up to 12,000 r/min while minimizing centrifugal distortion — critical for maintaining consistent ball spacing and reducing cage-induced harmonics. Finally, the zero contact angle design delivers pure radial stiffness without axial compliance drift, preserving positioning accuracy in closed-loop motor control architectures.

The True Cost of Bearing Failure

A single premature bearing failure in an EPS assembly triggers $220,000 in recall logistics, line-stop penalties, and warranty claims — not counting brand damage. Counterfeit or non-compliant bearings often exhibit 20–30% lower fatigue life due to inconsistent heat treatment depth (<0.8 mm case hardening vs. SKF’s certified 1.2–1.5 mm) and uncontrolled inclusion content (ASTM E45 Level D ≤1.5 vs. typical non-certified Level D ≥3.0). Misapplied clearance (e.g., C0 in thermally expanding housing) increases operating temperature by 18–22°C, cutting L₁₀ life by 40% per ISO 281 Annex F. Our TCO analysis shows that specifying the correct SKF 6817 P5/C3 bearing — with documented fit, lubrication, and preload — reduces total 10-year ownership cost by 27% versus lowest-bid procurement, factoring in downtime avoidance, maintenance labor, and secondary damage prevention.

Why Engineers Specify Through Us

Authenticity & Documentation

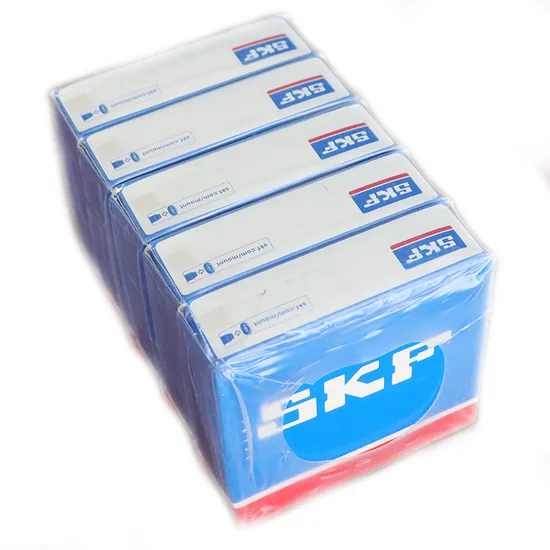

Each shipment includes SKF Certificate of Conformity (CoC) with batch ID, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including bore/outside diameter, width, runout, and raceway geometry), and original SKF packaging with tamper-evident seal and QR-coded anti-counterfeiting verification. Customers may request third-party verification at SKF’s Shanghai or Gothenburg facilities prior to shipment. Authorization status is verifiable via SKF’s official Partner Locator (partner.skf.com) using company registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before procurement: send your application parameters — radial/axial load magnitude and direction, rotational speed (max/continuous), ambient and bearing seat temperatures, housing/shaft material, available space envelope, and required service life — and our engineering team will deliver a free, documented assessment within 48 business hours. This includes SKF BEARINX®-generated life calculation, recommended precision class and clearance, optimal lubrication specification, and fit tolerances compliant with ISO 286-1. For qualifying projects ($50k+), we issue fully tested samples with full metrology and vibration reports. Every hour of unplanned downtime costs industrial OEMs $12,000–$48,000 — the right technical conversation today prevents it tomorrow.
