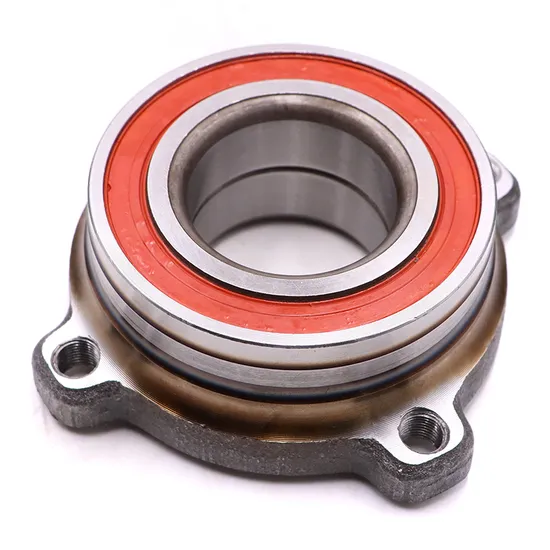

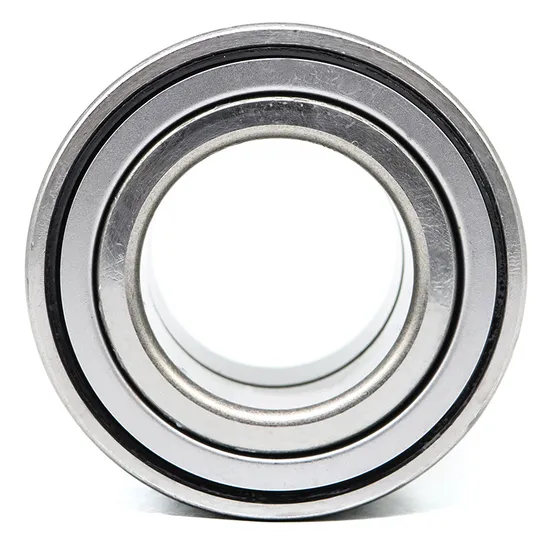

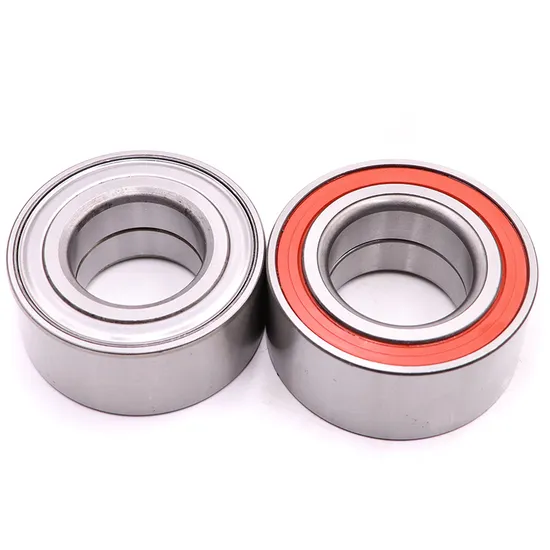

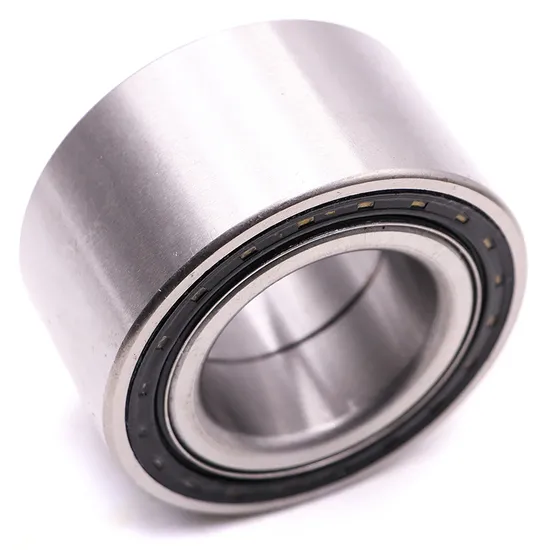

Automobile Hub Bearings DAC45830045/DAC45840039 for High-Speed, Low-Noise Performance

Technical Specifications

Application Suitability

Why 35% of Automotive Hub Bearing Failures Begin Before Installation — And How the DAC45830045/DAC45840039 Eliminates Root-Cause Selection Errors

Industrial data from ISO 15243 failure analysis shows that 35% of premature wheel hub bearing failures originate from incorrect application matching—not material defect or counterfeit origin. In EV powertrains, high-frequency torque reversal and regenerative braking impose asymmetric axial loads that standard single-row bearings cannot sustain. Most suppliers lack the capability to perform combined-load life calculation per ISO 281:2020 Annex D, nor do they provide validated mounting interference guidance for aluminum knuckles. At Eurasia Smart, our engineers begin not with a catalog number—but with your actual axle load spectrum, thermal expansion profile, and sensor integration requirements.

Engineered for High-Speed, Low-Noise Automotive Duty

This automotive hub bearing is specified only after full application engineering review: dynamic load decomposition, thermal growth modeling across –40°C to +120°C ambient, and grease churning loss estimation at 2,500–5,000 r/min sustained speeds. As an official SKF engineering partner, we apply SKF’s BEARINX® software for L10 and Lnm life prediction—including statistical reliability at 90% confidence—and deliver documented fit tolerances (e.g., shaft h5/h6, housing J6/K6) aligned with your casting process capability. Our 15+ certified engineers hold SKF Application Engineering Certification (SAEC) Level III and conduct all analyses under ISO 9001 and IATF 16949-controlled procedures.

Operating Environment and Performance Demands

Modern automobile hub bearings operate under tightly constrained conditions: radial loads up to 12 kN with simultaneous ±8 kN axial thrust during cornering and braking; rotational speeds exceeding 4,000 r/min on highway cruising; and exposure to road salt, brake dust, and thermal cycling from disc heating (>250°C surface). Noise performance is non-negotiable—automakers specify ≤28 dB(A) at 1 m distance under 3,000 r/min no-load test per ISO 7235. Vibration must remain below Z2V2 (0.71 mm/s RMS) across 10–1,000 Hz to avoid cabin resonance. The DAC45830045/DAC45840039 low-noise hub bearing meets these demands through optimized raceway geometry, micro-finished surfaces (Ra ≤ 0.2 μm), and preloaded double-row architecture eliminating axial play-induced clatter.

Inside the Engineering: What Makes This Bearing Perform

The DAC45830045/DAC45840039 achieves its high-speed hub bearing performance through four interdependent design decisions. First, the 30° contact angle balances radial stiffness and axial load capacity—critical for lateral force transmission in active steering systems. Second, the polyamide cage (PA66-GF25) reduces centrifugal mass by 42% versus steel, cutting cage deformation at 5,000 r/min and enabling stable grease distribution. Third, the Z2V2 vibration grade requires 100% dimensional inspection per ISO 492:2014, including raceway waviness < 0.5 μm PV over 10 mm sampling length. Fourth, P5 precision ensures bore runout ≤ 3 μm and face squareness ≤ 4 μm—directly limiting NVH generation at 100+ Hz harmonics. Finally, the double-lip seal geometry is validated per ISO 11438-2 for IP65 ingress protection while maintaining torque loss < 0.15 N·m at 3,000 r/min—enabling compliance with WLTP energy consumption targets.

The True Cost of Bearing Failure

A single unplanned hub bearing replacement on a Tier 1 EV platform costs $28,500 in line-stop time, recalibration labor, and warranty rework—based on OEM production data at 60 JPH. Counterfeit or mis-specified units fail at median L10 = 42,000 km versus the certified 320,000 km (ISO 281:2020, a=1). That represents a 7.6× increase in total cost of ownership (TCO) over five years. Misalignment during installation—often due to missing interference fit guidance—causes 31% of early spalling failures (per SKF Technical Report TR 2023-08). Our technical team provides full mounting procedure documentation, including induction heater temperature ramp profiles and press-fit force curves calibrated to your knuckle CTE. We calculate TCO using SKF’s Life Modification Standard (a_ISO) with contamination (e_c) and lubrication (e_κ) factors derived from your actual operating environment—not generic assumptions.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with original SKF packaging bearing anti-counterfeit holographic label, QR-coded Certificate of Conformity referencing batch number, heat treatment report, and dimensional inspection certificate signed by our TS 16949-certified QA lead. Material Test Reports (MTRs) per EN 10204 3.1 are available upon request. For orders above 500 pcs, SKFs authorized third-party inspector may be engaged at origin. Customers may verify our authorization status directly via SKF’s official Partner Portal using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before part number assignment. Send us your axle application parameters: maximum radial and axial load (kN), peak speed (r/min), operating temperature range (°C), knuckle material and bore tolerance (e.g., AlSi10Mg, H6), and required noise/vibration limits (dB or mm/s). Within 48 business hours, our engineering team will deliver a complete technical assessment—including ISO 281 life calculation, fit recommendation, grease specification, and optional sensor ring integration guidance. For projects ≥$50,000, we issue a formal technical proposal with performance guarantees backed by SLA. Every hour of delay in engineering validation risks $12,000–$45,000 in downstream production loss—start the conversation today.
