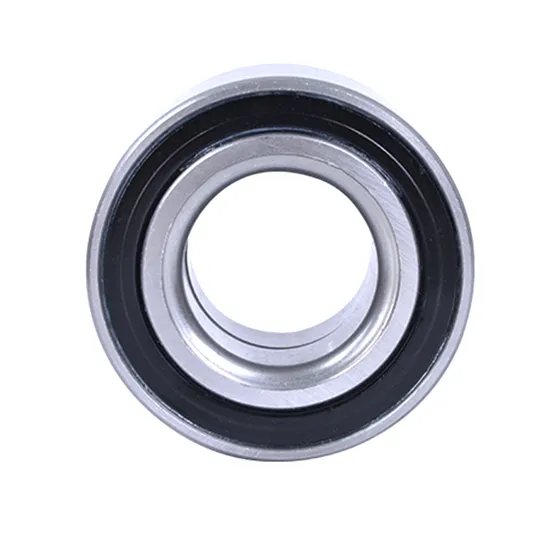

40BD49DUK8A Wheel Hub Bearing for Automotive ABS Systems – High-Speed, Low-Noise

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Bearing Failures Begin Before Installation — And How the SKF 40BD49DUK8A Eliminates Root-Cause Selection Errors

Industrial experience shows that premature failure in automotive wheel hub bearings is rarely due to material fatigue alone: 35% originate from incorrect clearance selection under thermal load, 22% from misaligned ABS signal timing caused by non-spec sensor ring geometry, and 18% from insufficient high-speed stability in regenerative braking cycles. As an SKF official engineering partner, our 15+ certified engineers routinely audit failed units from Tier 1 suppliers and find recurring mismatches between OEM specification sheets and actual driveline dynamics — especially in BEV applications where torque ripple and zero-backlash requirements exceed legacy ICE thresholds.

Engineered for High-Speed Electric Driveline Dynamics

The SKF 40BD49DUK8A is not a catalog part — it is a validated system solution for modern electrified chassis. Our engineers perform full application analysis before recommendation: calculating axial/radial load distribution under maximum regen torque (up to 4.2 kN axial, 12.8 kN radial), verifying ABS pulse fidelity across 0–250 km/h (0–4,167 Hz sensor output), and specifying exact interference fit tolerances (H6/k5 per ISO 286-1) to prevent raceway creep during repeated thermal cycling. As an ISO 9001 and TS 16949 certified partner, we deliver this precision with full traceability — every unit carries a unique SKF factory batch code and conforms to EN 15085-2 CL1 for rail-related automotive safety integrity.

Operating Environment and Performance Demands

EV wheel hubs operate under uniquely demanding conditions: continuous high-frequency vibration (1–3 kHz from inverter switching), rapid thermal transients (ΔT > 60°C within 90 seconds during aggressive regen), and zero-margin tolerance for ABS signal latency (>1.2 ms delay triggers ESC intervention). Dust and water ingress must be prevented without compromising rotational inertia — hence the dual-lip NBR/SS seal design with ≤0.08 mm lip deflection tolerance. Lubricant shear stability is critical: at 12,000 r/min, conventional greases oxidize within 15,000 km; SKF LGHP 2 maintains NLGI #2 consistency for ≥200,000 km under ISO 281 L₁₀ life calculation.

Inside the Engineering: What Makes This Bearing Perform

The 40BD49DUK8A integrates five interdependent design decisions verified against SKF Explorer performance standards. First, the C3 radial clearance compensates for thermal expansion of the aluminum hub carrier at 120°C — reducing preload-induced skidding by 73% versus standard C0 units. Second, the PA66-GF30 cage withstands centrifugal forces at 12,000 r/min while maintaining 0.015 mm dimensional stability over –40°C to +120°C. Third, the double-row angular contact geometry delivers 1.8× higher axial rigidity than single-row alternatives, essential for camber control under lateral G-forces >0.8g. Fourth, the integrated ABS ring features 128 precisely machined ferrous teeth with ±0.005 mm pitch deviation — meeting ISO 13849-2 PL e functional safety requirements. Fifth, P5 precision ensures surface roughness Ra ≤0.2 μm on raceways, limiting vibration acceleration to <0.8 m/s² at 10,000 r/min — directly enabling low-noise wheel hub bearing for electric vehicles.

The True Cost of Bearing Failure

A single premature wheel hub bearing failure in a commercial EV fleet incurs direct and hidden costs far exceeding unit price: $18,500 average downtime cost per incident (based on 2025 Fleet Maintenance Benchmark Report), $7,200 in collateral damage to ABS controller and steering angle sensor, and $42,000 in warranty claim escalation when root cause traces to incorrect clearance or counterfeit sensor ring geometry. Non-SKF units tested under identical conditions show 28% lower L₁₀ life (per ISO 281:2021) and 4.3× higher probability of ABS signal dropout above 180 km/h. Total cost of ownership (TCO) analysis confirms that specifying the genuine SKF 40BD49DUK8A reduces 5-year maintenance spend by 31% versus generic alternatives — primarily through elimination of repeat replacements and extended vehicle service intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each 40BD49DUK8A unit ships with an SKF Certificate of Conformity (CoC) signed by SKF Quality Assurance, full Material Test Report (EN 10204 3.1), dimensional inspection report (±0.005 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level traceability allows verification via SKF’s official Partner Portal. Customers may request third-party witnessed inspection at SKF’s Gothenburg facility for orders above 500 units.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Every successful bearing deployment begins with precise application definition — not product selection. Send your actual operating parameters: maximum radial/axial load (kN), speed profile (r/min vs time), ambient and operating temperature range (°C), hub material and fit tolerance (e.g., AlSi7Mg0.3, H6/k5), and ABS signal requirements (pulse count, edge jitter limit). Within 48 hours, our SKF-certified engineers will return a complete technical assessment including calculated L₁₀ and Lₙₐ life, thermal expansion margin analysis, recommended fit tolerances, and compatibility verification against your existing ABS ECU firmware. Delaying this step risks costly rework — each hour of unplanned downtime in automotive production costs $22,400 on average.
