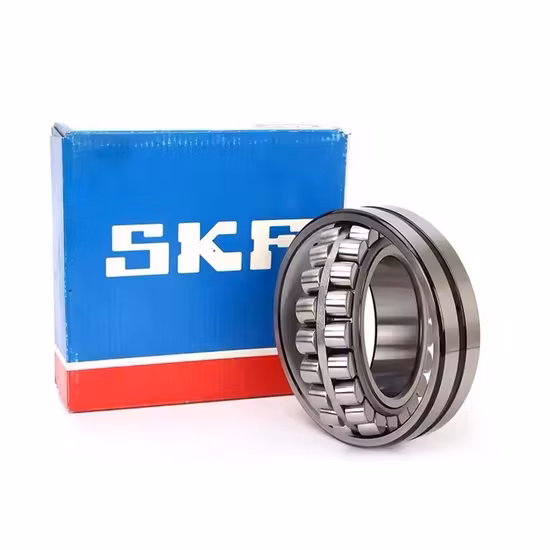

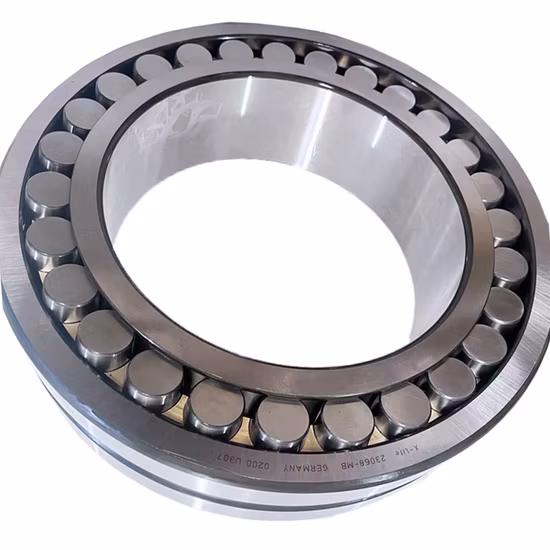

22322-22348 Spherical Roller Bearing Ca Cc MB E K W33 C3 Gcr15

Batch Traceability Assurance — Every spherical roller bearing shipment includes verifiable lot documentation linked directly to the manufacturer's production records.

Technical Specifications

Note: Suffixes Ca and Cc are unverified in the current reference table and require specific manufacturer catalog confirmation before procurement.

Application Suitability

Why Standard Clearances Fail in Heavy-Duty Spherical Roller Bearing Applications

Thermal expansion routinely eliminates internal clearance before the equipment reaches operating temperature.

When a standard clearance bearing is pressed onto a tight shaft fit and subjected to heavy radial loads, the internal play vanishes. I have investigated catastrophic seizures on primary crushers where the inner ring expanded into the rolling elements, generating immense friction heat. The resulting thermal runaway destroys the cage and welds the rollers to the raceway within hours. Specifying the correct expanded clearance prevents this mechanical binding .

Matching Suffix Codes to Extreme Operating Environments

Selecting the right 22322 22324 22326 spherical roller bearing requires looking past the base dimension. The internal geometry and cage design dictate survival in high-vibration environments. We cross-reference OEM equipment requirements to ensure the supplied unit matches the exact operational demands, preventing premature structural fatigue.

Navigating Shock Loads and Contamination Challenges

Crushing and screening equipment generates severe shock loads combined with abrasive particulate ingress. A machined brass cage guided by the inner ring withstands these sudden impact forces far better than lightweight alternatives, preventing cage fragmentation. Furthermore, continuous operation in dusty environments demands reliable relubrication. An outer ring lubrication groove with dedicated holes allows fresh grease to purge contaminants directly through the load zone, maintaining a clean rolling interface .

Decoding Critical Design Variations for Shaft Integration

The internal design optimization increases the dynamic load rating by utilizing larger or more numerous rolling elements, directly extending service life under heavy radial forces. For installations requiring precise radial positioning, the 1:12 tapered bore allows the bearing to be driven up a tapered sleeve. This mechanical wedging action secures th*usly allowing the installer to measure and dial in the exact residual internal clearance needed for the specific thermal profile of the application.

The Operational Impact of Suffix Mismatches

Installing a unit with incorrect internal geometry or insufficient clearance leads to rapid degradation. According to failure analysis frameworks like ISO 15243, excessive friction from inadequate clearance causes surface smearing and eventual seizure. Conversely, using a pressed steel cage in an application demanding high shock resistance often results in cage pocket wear and subsequent roller skewing. These misconfigurations trigger unplanned downtime and catastrophic damage to adjacent shaft components .

Securing the Supply Chain Against Counterfeit Risks

Mixed-brand procurement often introduces cross-reference errors where base dimensions match but critical suffixes are ignored. Our technical review process verifies that the requested clearance, cage material, and bore type align perfectly with the application parameters. We source exclusively through authorized channels, ensuring that every Gcr15 steel component meets the original metallurgical specifications required for high-contact fatigue resistance, completely eliminating the risk of soft inner rings found in cloned products.

Documentation & Authenticity

• Certificate of Conformity validating the specific brand and manufacturing origin.
• Batch and lot traceability linking the physical unit to the factory production run.
• QR verification support enabling instant authenticity checks via official brand applications.
• Material test reports confirming the metallurgical composition of the Gcr15 bearing steel.
• Dimensional and running accuracy inspection reports verifying tolerance compliance before dispatch.

Storage, Handling & Mounting Protocols

• Retain the original VCI packaging until installation to prevent corrosion on the precision-ground outer ring raceways.
• Store the units horizontally in a climate-controlled environment to prevent static deformation of the heavy brass cages.
• Utilize induction heaters with automatic demagnetization when mounting cylindrical bore variants to avoid thermal shock to the Gcr15 rings.
• For tapered bore models, strictly measure the drive-up distance or residual clearance to prevent crushing the rollers against the raceway.
• Pump high-viscosity grease through the W33 outer ring holes during initial commissioning to fully purge the internal cavities.
• Use dedicated lifting slings for the larger diameter units to prevent dropping and damaging the machined brass cage pockets.

Engineering Review and Technical Validation

To ensure optimal performance, please provide the specific radial and axial loads, operating speeds, and ambient temperature profiles for your application. Supplying the original OEM equipment designation allows our engineering team to execute a precise cross-reference check, verifying that all suffix requirements are strictly met. This technical validation guarantees the selected configuration aligns with your operational parameters and L10 life expectations.

Frequently Asked Questions

Q: Why does the base dimension match but the bearing still fails prematurely?
A: Base dimensions only define the physical envelope. Ignoring critical suffixes like C3 clearance or MB brass cages leads to thermal binding or cage fracture under heavy shock loads. We verify every suffix against your specific operational parameters to ensure the internal geometry and material specifications perfectly match the demanding conditions of your equipment.

Q: How does the W33 feature improve maintenance in dusty environments?
A: The W33 designation indicates an outer ring lubrication groove and three holes. This design channels fresh grease directly into the bearing interior, forcing out abrasive dust and worn particles. In mining and crushing applications, this targeted relubrication path significantly extends maintenance intervals and protects the rolling elements from contamination-induced surface fatigue.

Q: What is the advantage of a K tapered bore for heavy machinery?
A: The K suffix denotes a 1:12 tapered bore, designed for use with a tight-fitting adapter sleeve. This configuration allows maintenance teams to mechanically drive the bearing onto the shaft, securing it firmly against heavy radial loads while precisely adjusting the internal radial clearance. This ensures optimal load distribution and prevents inner ring creep on the shaft seat.

Q: How do you verify the authenticity of the Gcr15 material and批次?
A: We provide comprehensive batch traceability documentation and a Certificate of Conformity for every shipment. Buyers can scan the manufacturer's QR codes using official brand applications to verify the production origin. This strict chain of custody ensures the steel metallurgy meets exact fatigue limits, eliminating the risk of counterfeit units with substandard hardness.
