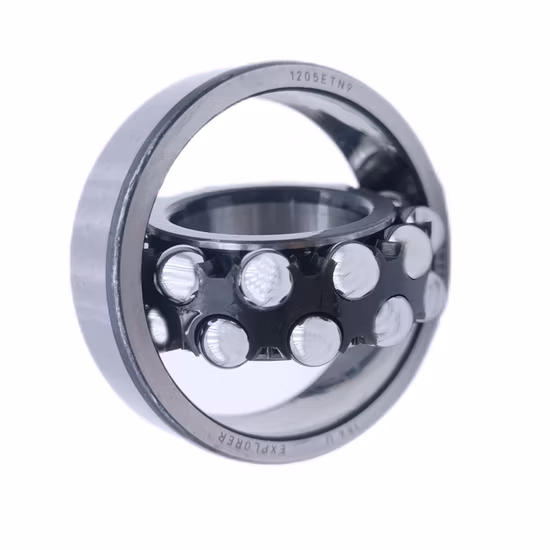

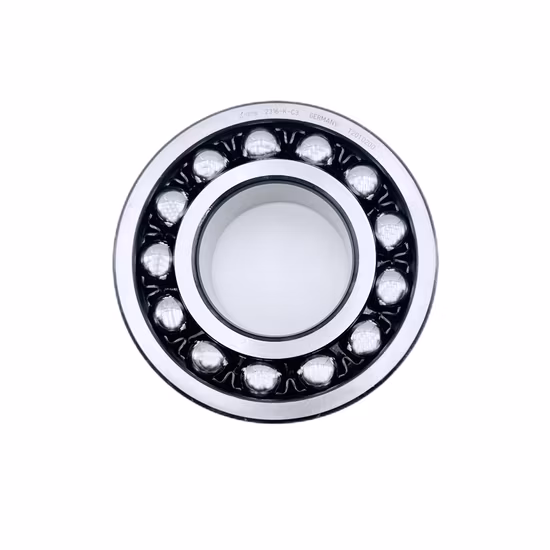

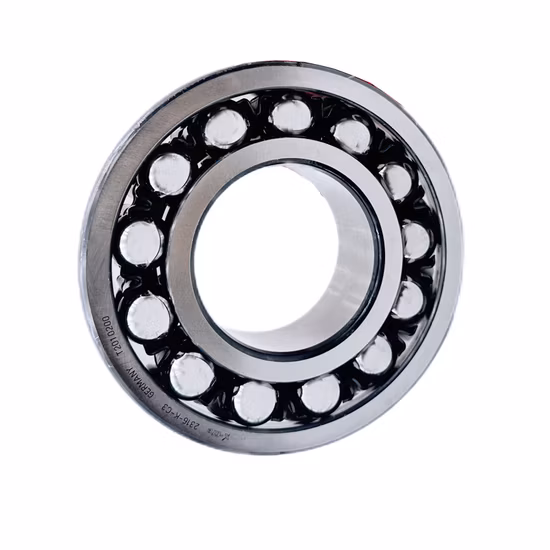

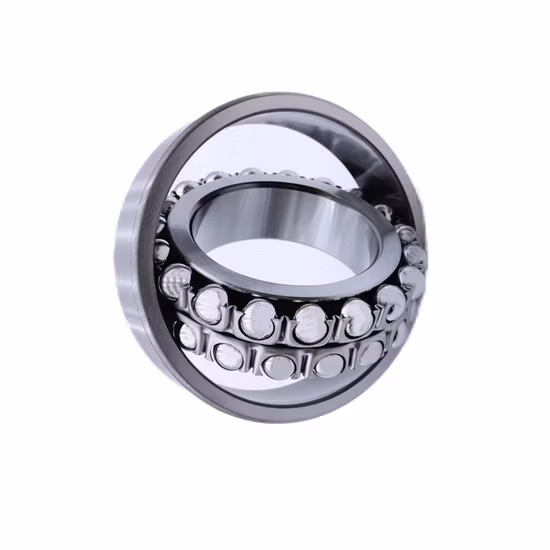

1206 1207 Self-Aligning Ball Bearing with Large Stock and Good Price

Multi-brand authorized coverage — Source SKF, FAG, and NSK 1206 variants in a single consolidated shipment without juggling multiple vendors.

Technical Specifications

Application Suitability

Why Base Numbers Alone Fail the 1206 Self-Aligning Ball Bearing

Matching the base designation without verifying internal clearance and cage material guarantees premature thermal binding.

I have seen entire production lines halt because a standard clearance was forced into a high-temperature motor application. Procurement teams often focus solely on the 1206 self-aligning ball bearing prefix, ignoring that an incorrect internal gap leads to catastrophic seizure when the shaft expands. This cross-reference oversight destroys equipment reliability long before the expected L10 life is reached .

Matching the 1206 Self-Aligning Ball Bearing to Your Operating Environment

Selecting the correct 1206 self-aligning ball bearing requires looking past the basic part number to evaluate the actual operating environment. Our engineering review process cross-references your specific load, speed, and temperature parameters against the manufacturer's internal design specifications. This ensures the selected variant handles the real-world demands of your machinery rather than just fitting the physical envelope.

Navigating Misalignment and Contamination Challenges

The spherical outer ring raceway allows the inner ring and ball assembly to align freely with the outer ring, accommodating static misalignment from housing machining errors or shaft deflection. In agricultural or material handling environments, sealing selection becomes critical; rubber seals provide superior exclusion of fine particulate matter, while iron shields offer lower friction for higher-speed electric motor applications. Proper lubrication intervals must be established based on the chosen seal type to prevent grease degradation .

Decoding Clearance and Cage Configurations

Internal clearance dictates how the bearing behaves under thermal expansion; a standard CN clearance may preload and seize in a hot gearbox, whereas a C3 clearance provides the necessary thermal gap. Cage material selection is equally vital, with pressed steel cages suitable for general-purpose use and machined brass or polyamide cages offering distinct advantages in high-vibration or high-speed scenarios. Understanding these suffix implications prevents the catastrophic failures that occur when generic replacements are installed without engineering oversight.

The Hidden Costs of Incorrect Suffix Selection

Installing a bearing with mismatched internal geometry or incorrect sealing leads to unplanned downtime and catastrophic damage to adjacent shaft components. When a standard clearance bearing is subjected to thermal expansion without adequate internal gap, the resulting preload accelerates fatigue and causes sudden seizure. These failures void equipment warranties and incur massive repair costs that far exceed the initial savings of purchasing an incorrectly specified part .

Securing Genuine Components Through Authorized Channels

We maintain authorized distribution agreements across all major international brands, ensuring every 1206 self-aligning ball bearing is sourced directly from the manufacturer's production facilities. Our technical team verifies cross-reference equivalents by matching internal clearance, cage material, and precision suffixes, not just the base number. This rigorous validation process eliminates the risk of receiving counterfeit products with soft inner rings or cloned packaging that plague the open market.

Documentation & Authenticity

• Certificate of Conformity verifying the specific 1206 production batch.
• Original manufacturer lot traceability linking the bearing to its factory of origin.
• Official brand app QR codes on packaging for immediate field authentication.
• Material test reports confirming the metallurgical composition of the rings and balls.
• Dimensional and running accuracy inspection reports validating tolerance compliance.
• Country-of-origin documentation supporting customs clearance and import compliance.

Storage, Handling & Mounting

• Retain original factory packaging until installation to protect the 1206 bearing from ambient humidity and particulate contamination.
• Store in a temperature-controlled, dark environment to prevent UV degradation of polyamide cages or rubber seal materials.
• Wipe the outer ring with a clean, lint-free cloth before mounting to preserve the rust-preventative coating.
• Use induction heaters with automated temperature controls for interference fits, avoiding localized overheating of the inner ring.
• Align the inner ring and ball assembly carefully with the outer ring raceway to prevent damaging the spherical sliding surface.
• For sealed variants, do not attempt to wash out the factory-filled grease or force additional lubricant past the seal lips.

Preparing Your Technical Inquiry

To facilitate an accurate technical review, please provide the specific radial and axial loads, operating speeds, and ambient temperatures for your application. Sharing the exact OEM equipment designation or the currently installed bearing's full suffix string allows our engineers to perform a precise cross-reference check. This data ensures we recommend a 1206 variant that perfectly matches your operational demands and installation constraints.

Frequently Asked Questions

Q: How can I verify the authenticity of the 1206 bearing using official brand applications?
A: Every genuine bearing we supply features a unique QR code or batch identifier on its packaging. By scanning this code with the specific manufacturer's official mobile application, procurement and maintenance teams can instantly verify the product's origin, production date, and authenticity, effectively eliminating the risk of installing dangerous counterfeit components.

Q: Why is it critical to check clearance suffixes during cross-referencing instead of just the base number?
A: The base number only defines the physical dimensions. If a replacement lacks the correct C3 clearance suffix required for a high-temperature application, thermal expansion will eliminate the internal gap, causing the bearing to preload, overheat, and seize. Matching the suffix ensures the internal geometry suits the actual operating environment.

Q: What are the operational differences between rubber seals and iron shields for this bearing type?
A: Rubber seals provide a tight contact lip that effectively excludes fine dust and moisture, making them ideal for harsh agricultural or outdoor environments. Iron shields maintain a small, non-contact gap that minimizes friction and heat generation, which is highly preferable for high-speed electric motor applications where temperature control is critical.

Q: How do you handle cross-brand substitutions when the original manufacturer is out of stock?
A: We utilize authorized cross-reference databases to identify exact equivalents from other premium brands we distribute. Our engineers strictly match the internal clearance, cage material, and precision class—not just the basic dimensions—ensuring the substitute bearing performs identically to the original specification without compromising equipment reliability.
