1204-1310 Self-Aligning Ball Bearings for Textile Machinery Misalignment

Full Batch Traceability — Every 1200 1300 series self-aligning ball bearing 1208K we supply includes verifiable lot documentation directly from the manufacturer's production facilities.

Technical Specifications

Application Suitability

Why Base Numbers Fail in High-Speed Textile Spindles

Selecting a 1200 1300 series self-aligning ball bearing 1208K based solely on the base designation often leads to catastrophic thermal binding in textile machinery.

Internal clearance and seal friction dictate survival, not just the outer dimensions.

I once inspected a spinning frame where the inner ring seized completely onto the shaft. The maintenance team had replaced the original unit with a standard clearance variant, ignoring the thermal expansion generated by the high-speed yarn winding process . When procurement focuses only on the base number, they overlook the critical suffix combinations that manage heat and contamination, resulting in unplanned downtime that halts the entire production line.

Matching the 1200 1300 Series Self-Aligning Ball Bearing 1208K to Textile Loads

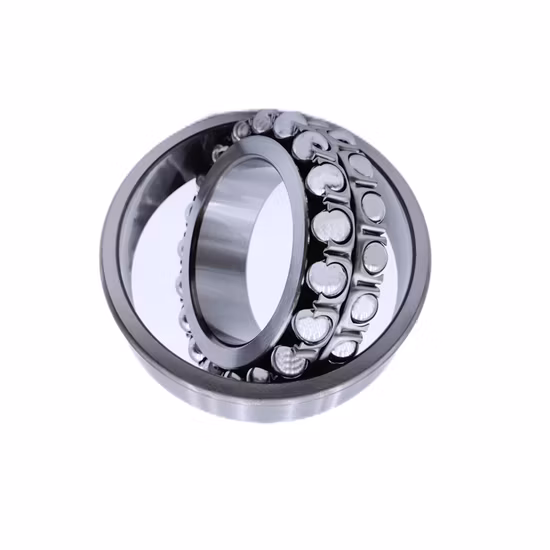

Textile environments demand components that can handle continuous high-speed rotation while accommodating slight shaft deflections. The 1200 1300 series self-aligning ball bearing 1208K provides the necessary angular adjustment to prevent edge loading on the raceways. Our technical team reviews the specific radial loads and operating speeds of your spinning frames to ensure the selected variant maintains optimal contact stress distribution.

Thermal and Contamination Challenges on the Spinning Floor

The ambient temperature on a textile factory floor fluctuates, and the friction from high-speed rotation generates significant internal heat. If the internal clearance is too tight, the thermal expansion of the shaft will eliminate the operational gap, leading to premature failure. Furthermore, airborne cotton fibers and lubricant mist easily penetrate inadequate sealing arrangements . Choosing between rubber seals for maximum protection or iron shields for lower friction requires a careful balance of the specific machine's contamination exposure and speed limits.

Decoding the Suffix and Bore Configurations

The K suffix indicates a tapered bore with a 1:12 taper, which is essential for secure mounting on adapter sleeves in applications where axial positioning and residual clearance must be precisely controlled during installation. The 12xx series represents a narrow dimension profile suitable for compact textile spindles, while the 13xx wide series offers higher load capacity for heavier conveyor pulleys. Understanding the distinction between open, rubber-sealed, and iron-shielded variants ensures that the friction torque does not exceed the motor's capacity while still keeping microscopic textile dust out of the raceway.

The Hidden Cost of Overlooking Internal Clearance

Installing a standard clearance bearing in a high-temperature textile application eliminates the necessary thermal expansion gap. This leads to excessive preload, rapid cage wear, and eventual seizure, which can damage the expensive precision shafts of the spinning frame. According to failure analysis frameworks, a significant share of premature failures stems from these initial selection errors rather than material defects . The resulting unplanned downtime and secondary equipment damage far outweigh the initial procurement savings.

Why Procurement Engineers Trust Our Selection Process

We do not just ship the base number; we verify the exact suffix combination required for your specific thermal and load conditions. Our cross-reference matching ensures that if a specific 1208K variant is unavailable, the replacement matches the exact internal geometry and clearance class, not just the outer dimensions. We provide batch traceability for every unit, allowing your quality team to verify the origin and material certifications directly through official brand applications. This eliminates the risk of receiving counterfeit units with soft inner rings that fail under high-speed textile loads.

Documentation & Authenticity

• Certificate of Conformity confirming the exact clearance class and seal configuration for your textile machinery.
• Batch and lot traceability linking every 1208K unit directly to the manufacturer's original production records.
• QR verification via brand official apps to instantly rule out counterfeits with substandard inner ring hardness.
• Dimensional and running accuracy inspection reports verifying the self-aligning capability before shipment.

Storage, Handling & Mounting

• Keep rubber-sealed variants in original packaging until mounting to prevent textile dust from compromising the seal lips.
• Use induction heaters for cylindrical bore models, strictly avoiding open flames that destroy the factory-applied lubricant.
• Monitor the drive-up distance carefully when mounting the 1208K tapered bore on adapter sleeves to retain correct residual clearance.
• Wear clean lint-free gloves when handling open variants to prevent sweat-induced corrosion on the exposed raceways.

Technical Review and Inquiry Parameters

To ensure the selected self-aligning ball bearing matches your exact operational demands, please provide the radial and axial loads, operating speeds, and ambient temperature ranges of your textile machinery. If you are replacing an existing unit, share the OEM equipment number or the exact designation printed on the current bearing, including all suffixes. Our engineering team will use this data to perform a cross-reference check and verify the L10 life calculation for your specific application.

Frequently Asked Questions

Q: How do I choose between rubber seals and iron shields for textile machinery?
A: Rubber seals provide superior protection against cotton dust and lubricant mist but generate higher friction heat. Iron shields offer lower friction for high-speed spindles but allow fine particles to enter. We evaluate your specific spindle speed and contamination levels to recommend the optimal sealing configuration for your equipment.

Q: What is the mounting difference for the K suffix tapered bore?
A: The K suffix indicates a 1:12 tapered bore designed to be mounted on an adapter sleeve. This allows for precise axial positioning and the ability to adjust the internal radial clearance during installation by measuring the drive-up distance or the reduction in clearance, which is critical for high-speed textile applications.

Q: Why does matching the base designation fail if internal clearance is overlooked?
A: The base number only defines the outer dimensions. If a standard clearance bearing is used where a C3 clearance is required for thermal expansion, the shaft expansion will eliminate the internal gap. This causes extreme friction, thermal binding, and eventual seizure, destroying both the bearing and the shaft.

Q: How can I verify the authenticity of multi-brand bearing batches?
A: Every batch we supply includes verifiable lot documentation. You can scan the QR codes on the packaging using the manufacturer's official mobile application to confirm the origin, production date, and authenticity, effectively ruling out counterfeits with soft inner rings that fail under load.
