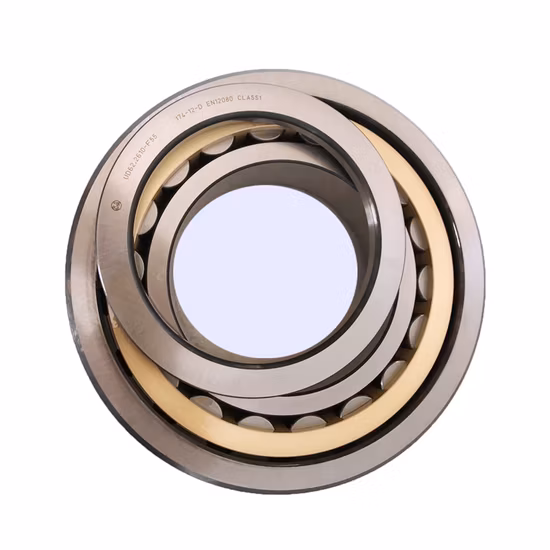

Nu1022 Nu1032 Nu1045 Nu1056 Single Row Cylindrical Roller Bearings

Mixed-Brand Sourcing — One consolidated shipment covers your Nu1022 cylindrical roller bearing requirements alongside other international brands, eliminating multi-vendor coordination.

Technical Specifications

Application Suitability

Why Cage Material Dictates Survival in Heavy-Duty Gearboxes

A brass cage is the primary defense against high-vibration cage fragmentation.

In heavy-duty gearboxes and rolling mills, the Nu1022 cylindrical roller bearing operates under intense radial loads and persistent vibration. When procurement teams rely on basic designation matching and overlook internal design differences, they often receive units with pressed steel cages instead of the required brass construction. Under continuous high-vibration conditions, a mismatched steel cage is prone to fatigue cracking and sudden fragmentation, leading to catastrophic gear train lockups and unplanned downtime . Securing the correct cage material from the start prevents these devastating field failures.

Matching the Nu1022 to High-Vibration Drivetrains

The Nu1022 cylindrical roller bearing is engineered specifically for applications where heavy radial loads intersect with severe mechanical shock. Its separable inner ring design allows the outer ring, complete with the roller and brass cage assembly, to be mounted independently. This structural advantage simplifies installation in tight gearbox housings and facilitates rapid maintenance during scheduled overhauls, ensuring the drivetrain returns to operational status with minimal delay.

Navigating Thermal and Lubrication Extremes

Traction motors and rolling mills subject bearings to significant thermal gradients and heavy contamination. The brass cage provides superior thermal conductivity and structural rigidity at elevated temperatures compared to polymer alternatives, maintaining roller alignment when lubricant viscosity drops. Proper oil circulation or high-quality grease application is critical to flush out metallic debris, while the open design of the bearing relies on the housing's external sealing arrangements to prevent abrasive particles from compromising the raceways .

Decoding the NU Configuration and Brass Construction

The "NU" prefix indicates an outer ring with two integral flanges and an inner ring with none, allowing the bearing to accommodate axial displacement of the shaft relative to the housing, which is essential for managing thermal expansion in long shafts. The "10" denotes the diameter series, while "22" specifies the bore dimension. Crucially, the integration of a machined brass cage ensures the rollers remain perfectly spaced and guided under heavy radial loads, preventing roller skewing and edge-loading that would rapidly degrade a stamped steel alternative in high-vibration environments.

The Hidden Toll of Interchange Oversights

Substituting a bearing based solely on the base number while ignoring the cage material specification introduces severe reliability risks. A steel-caged unit installed in a high-shock rolling mill application will experience accelerated cage wear and eventual structural collapse. This failure mode triggers secondary damage to the shaft and housing, voiding equipment warranties and resulting in extensive, unbudgeted repair costs and prolonged production halts .

Why Procurement Verification Matters Here

We authorize distribution across all major international brands, meaning your Nu1022 requirements are fulfilled with exact cage and clearance specifications, not just base number approximations. Our technical team reviews every cross-reference to ensure the internal design matches your specific vibration and load profile, preventing the costly installation of under-specified units. Furthermore, every shipment includes full batch traceability to the original manufacturer, verified via official brand applications, guaranteeing you receive genuine components capable of surviving your most demanding applications.

Documentation & Authenticity

• Certificate of Conformity confirming the exact Nu1022 designation and brass cage specification.
• Batch and lot traceability linking the physical bearing to the manufacturer's original production run.
• QR verification enabled for instant authenticity checks via official brand mobile applications.
• Dimensional and running accuracy inspection reports validating tolerance compliance before dispatch.
• Country-of-origin documentation supporting customs clearance and regional import compliance.

Storage, Handling & Mounting Protocols

• Store the Nu1022 in its original, unopened packaging to protect the brass cage and raceways from ambient humidity.
• Maintain a stable storage temperature away from direct sunlight to preserve the factory-applied rust preventative coating.
• Use clean, lint-free gloves when handling the separated inner ring to prevent moisture-induced corrosion on the precision ground surfaces.
• Utilize induction heating equipment with strict temperature monitoring when mounting the inner ring onto the shaft.
• Apply the specified lubricant immediately after housing assembly to protect the open bearing internals from initial dry-start wear.

Initiating the Technical Review

To ensure the selected bearing perfectly aligns with your operational demands, please provide your specific radial and axial load calculations, operational speeds, and ambient temperature ranges. Supplying the original OEM equipment number allows our engineering team to perform a comprehensive cross-reference check, verifying that the cage material, internal clearance, and dimensional tolerances are optimized for your exact machinery configuration.

Frequently Asked Questions

Q: How do I verify the authenticity of the bearing using official apps?
A: Scan the QR code located on the product packaging or the bearing label using the manufacturer's official mobile application. This instantly confirms the production batch, origin, and specific design attributes, ensuring the unit is genuine and protecting your equipment from the severe risks associated with counterfeit components.

Q: Why must cross-referencing match cage material and not just the base number?
A: Matching only the base number often results in receiving a bearing with a stamped steel cage instead of the required brass construction. In high-vibration environments, this material mismatch leads to rapid cage fatigue and catastrophic fragmentation, causing unplanned downtime and extensive secondary damage to the surrounding gearbox components.

Q: What are the recommended mounting practices for the separable inner ring?
A: The inner ring should be mounted using controlled induction heating to expand it sufficiently for a slip fit onto the shaft. It is critical to monitor the heating temperature closely to prevent altering the metallurgical properties of the bearing steel, ensuring a secure fit without compromising the component's structural integrity.

Q: Can I cross-reference this designation to other major brands?
A: Yes, this designation can be cross-referenced to equivalent models from other major international manufacturers, such as the Nu1032, Nu1045, or Nu1056 series depending on your exact dimensional requirements. We verify that the alternative brand matches the brass cage and internal clearance specifications to ensure seamless interchangeability.
