Lme25-Aj Lme30-Aj Lme40-Aj Linear Bearing Wholesale Supplier [WARN] draft identifier mismatch

Multi-brand authorized coverage — Source your Lme25-Aj linear bearing alongside major rotary bearing brands in a single consolidated shipment without juggling multiple vendors.

Technical Specifications

Note: The "Aj" suffix remains unverified against specific manufacturer catalogs and requires confirmation for exact flange or clearance specifics.

Application Suitability

Why Cheap Cages Destroy Your Lme25-Aj linear bearing Performance

Thermal deformation of substandard nylon cages is the primary cause of sudden carriage jamming in linear motion systems.

In the trading hubs of Dongguan, I have repeatedly dismantled linear guides where the carriage completely seized mid-cycle. The culprit is almost always a counterfeit or downgraded nylon cage that softens under friction heat, allowing the recirculating steel balls to skew and lock against the raceway. When procurement teams focus solely on the base 25mm dimension and ignore the internal cage geometry or material grade, they invite catastrophic sliding friction . A genuine Lme25-Aj linear bearing maintains precise ball spacing even under continuous high-speed traversing, preventing the metal-to-metal contact that scores the shaft and destroys the entire motion assembly.

Matching the Open Design to Adjustable Housing Requirements

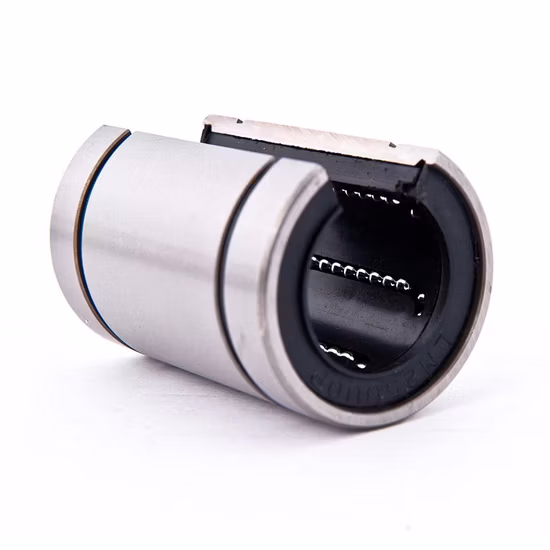

The open shape configuration is specifically engineered for linear housings that feature an adjustable slit and clamping screws. This allows the installation engineer to fine-tune the radial clearance and apply a slight preload to eliminate carriage play, which is critical for achieving high repeatability in CNC tool changers. We verify that the open slit alignment matches your specific housing block design before dispatch.

Navigating Thermal Expansion and Lubrication Starvation

High-speed linear axes generate substantial friction heat, which directly impacts the internal clearance between the 25mm shaft and the bearing sleeve. If the system operates in an elevated temperature environment without adequate forced lubrication, standard greases will rapidly degrade or migrate out of the load zones . The nylon cage material helps retain lubricant film on the rolling elements, but the open design necessitates a reliable external automatic lubrication system to flush out metallic wear particles and prevent abrasive scoring on the shaft surface.

Decoding the European Standard and Suffix Nuances

The LME designation indicates a European metric dimension series, meaning the outer diameter and length differ fundamentally from the Asian-standard LM series, despite sharing the same 25mm bore. The nylon cage provides quiet operation and low friction, making it suitable for clean environments like 3D printers and packaging machinery. While the base dimensions dictate physical fit, the precision class selection—ranging from standard P0 up to ultra-precise P2—dictates the running accuracy and positional repeatability of the carriage under dynamic loads.

The Hidden Costs of Ignoring Suffix and Clearance Details

When a cross-reference matches the 25mm bore but overlooks the open shape requirement or the specific precision grade, the resulting interference fit can crush the bearing sleeve during installation. This leads to immediate preload loss, excessive vibration, and premature shaft scoring . The financial impact extends far beyond the replacement part cost; unplanned downtime on an automated gantry or CNC spindle halts the entire production line, voids equipment warranties, and requires expensive shaft re-machining.

Why Our Technical Review Prevents Field Failures

Our cross-brand interchange process goes beyond matching the basic 25mm bore; we verify the open slit geometry and cage material to ensure exact functional equivalence. Because we hold authorized distribution across all major international bearing brands, we can supply matched linear and rotary components with full batch traceability in one order. We reject rough catalog lookups that ignore the "Aj" suffix implications, ensuring your procurement team receives components that physically and thermally match the OEM design intent. Our engineering team reviews your speed and load parameters to confirm the selected precision class will survive the operational environment.

Documentation & Authenticity

• Certificate of Conformity validating the specific LME series origin and manufacturing batch.
• Batch and lot traceability linking the 25mm linear sleeve directly to the factory production run.
• QR verification via brand official apps to instantly confirm genuine nylon cage specifications.
• Dimensional inspection report confirming the open slit width and outer diameter tolerances.
• Running accuracy test data verifying the selected P-class clearance before shipment.

Storage, Handling & Mounting

• Keep the open-type bearing in its original anti-corrosion wrapping until installation to prevent humidity ingress on the exposed steel raceways.
• Use lint-free cleanroom gloves when handling the recirculating steel balls to avoid skin acid etching on the precision-ground surfaces.
• Align the open slit precisely with the housing clamping screw to avoid crushing the sleeve during preload adjustment.
• Apply the specified linear guide grease immediately after mounting, as the open design lacks integrated sealed lubrication reservoirs.
• Avoid using carbon steel tools near the exposed nylon cage to prevent metallic debris embedding into the polymer matrix.

Requesting Technical Verification

To ensure the selected open-type configuration perfectly matches your linear guide block, please provide the housing clamp dimensions and the required preload specifications. Share your operational speed, travel length, and ambient temperature data so our engineering team can verify the L10 life and confirm the optimal precision class for your specific automation application.

Frequently Asked Questions

Q: What is the dimensional difference between LME and standard LM series?
A: The LME series follows European metric dimensions, meaning the outer diameter and overall length are larger than the Asian-standard LM series for the same 25mm shaft diameter. Installing an LM series in an LME housing will result in severe radial play, while forcing an LME into an LM housing will crush the sleeve. Always verify the exact housing bore before ordering.

Q: How do you adjust clearance on an open-type linear bearing?
A: The open design features a longitudinal slit that allows the sleeve to compress slightly when mounted in a slotted housing block. By tightening the housing clamping screws, you reduce the internal radial clearance and apply a controlled preload. This eliminates carriage play and increases system rigidity for high-precision CNC applications.

Q: When should I choose a steel cage over the standard nylon cage?
A: While nylon cages offer low noise, low friction, and excellent lubricant retention for standard automation tasks, steel cages are necessary when the linear axis operates continuously at elevated temperatures that exceed the thermal limits of polymer materials, or when exposed to aggressive chemical solvents that degrade nylon.

Q: How do you ensure cross-reference accuracy for linear bearings?
A: We do not rely solely on matching the basic 25mm bore diameter. Our technical team verifies the exact outer diameter, length, open slit geometry, and internal cage design against the OEM specifications. This comprehensive alignment prevents the catastrophic binding and premature shaft wear caused by superficial catalog lookups.
