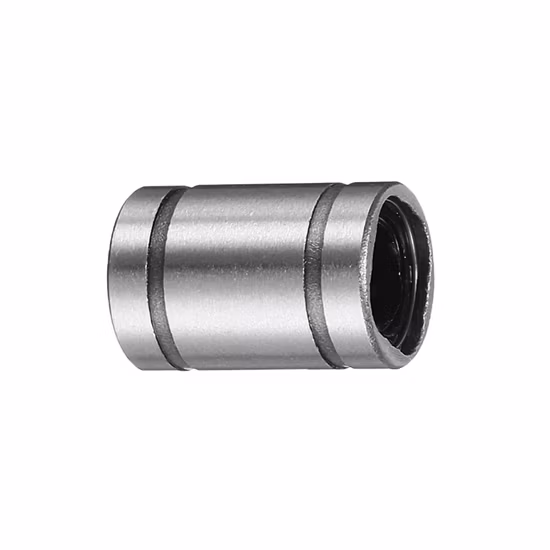

LM20LUU LM25LUU LM30LUU LM35LUU High Speed Linear Bearing Supplier

Cross-Reference Precision — We verify base designation, seal configuration, and precision class to guarantee exact interchangeability for your linear motion systems.

Technical Specifications

Note: LUU is an unverified suffix requiring manufacturer catalog confirmation for exact end cap or seal designation in linear motion applications.

Application Suitability

Preventing Catastrophic Cage Failure with a Trusted LM20LUU LM25LUU Linear Bearing Supplier

Nylon retainer integrity is the true bottleneck in high-speed linear motion.

Sourcing from an unreliable LM20LUU LM25LUU linear bearing supplier often results in components that look correct on the outside but fail rapidly under dynamic loads. I have witnessed entire production lines grind to a halt because inferior cage materials shattered during high-speed reciprocation, jamming the carriage completely. When procurement decisions focus solely on the base model number while ignoring internal structural matching, the resulting unplanned downtime and collateral damage to the guide rails far exceed the initial component cost .

Matching Internal Structures to Automation Demands

Selecting the correct internal configuration ensures that the linear guidance system maintains its accuracy over extended operational cycles. As a dedicated LM20LUU LM25LUU linear bearing supplier, we prioritize the alignment of the bearing steel raceways with high-quality nylon retainers. This specific combination minimizes friction and acoustic emissions, allowing the carriage to glide smoothly even when subjected to the rigorous acceleration and deceleration profiles typical in modern automated equipment.

Navigating Thermal and Contamination Challenges

Linear systems in CNC and packaging environments face severe operational stresses, particularly regarding thermal expansion and particulate ingress. High-speed reciprocation generates localized friction heat, which can compromise standard clearance if the internal geometry is not optimized for thermal growth. Furthermore, open shapes require external sealing solutions to prevent metallic debris from infiltrating the rolling elements, while sealed variants must balance contact friction against contamination exclusion. Proper lubrication intervals are equally critical; inadequate grease distribution in high-temperature zones rapidly degrades the nylon cage, leading to premature structural collapse .

Decoding the LM Series Engineering Parameters

The LM series relies on the precise interaction between the cylindrical rolling elements and the polymer retainer to achieve low-voice, high-speed operation. The bearing steel construction provides the necessary surface hardness for the load-bearing raceways, while the nylon cage reduces weight and dampens vibrations. Precision classes ranging from P0 to P2 dictate the dimensional tolerances of the outer cylinder and the straightness of the ball tracks, directly influencing the positioning accuracy of the machine tool or 3D printer. The circular flange shape and universal type designation ensure standardized mounting compatibility across various carriage block designs, simplifying the integration process for machine builders.

The Hidden Costs of Specification Mismatches

Overlooking critical suffix details or accepting counterfeit components with soft inner rings leads to rapid dimensional degradation. When the internal clearance does not match the thermal profile of the application, the rolling elements experience excessive preload, generating catastrophic friction heat. According to failure analysis frameworks outlined in ISO 281, such operational deviations drastically truncate the calculated fatigue life, resulting in severe scoring on the mating shaft and voiding the machinery warranty .

Why Our Technical Verification Matters

We eliminate cross-reference errors by verifying not just the base designation, but also the specific seal types and precision suffixes required for your equipment. Our batch traceability ensures every unit can be authenticated via official brand applications, protecting your facility from cloned components. We provide comprehensive application-based selection reviews, analyzing your specific load, speed, and temperature conditions to recommend the optimal internal configuration. Furthermore, our mixed-brand authorized coverage allows you to consolidate your linear motion procurement without sacrificing technical documentation or authenticity guarantees.

Documentation & Authenticity

• Certificate of Conformity validating the specific LM series precision class.
• Batch and lot traceability linked directly to the manufacturer's production facilities.
• Official app QR verification confirming the authenticity of the bearing steel and nylon components.
• Dimensional and running accuracy inspection reports verifying straightness and outer cylinder tolerances.
• Country-of-origin documentation supporting customs clearance and supply chain transparency.

Storage, Handling & Mounting

• Keep the original packaging sealed until installation to prevent moisture ingress that could corrode the bearing steel raceways.
• Store in a temperature-controlled environment to prevent thermal degradation of the nylon retainers before use.
• Use clean, lint-free gloves during handling to avoid transferring skin oils to the high-precision open shape tracks.
• Align the circular flange carefully during mounting to prevent binding and uneven load distribution on the rolling elements.
• Apply the manufacturer-recommended external lubricant immediately after installation to protect the high-speed contact surfaces.

Initiating Your Technical Review

To ensure optimal performance and longevity, please provide your specific radial and axial load parameters, operating speeds, and ambient temperature ranges. Sharing the exact OEM equipment numbers or legacy part codes allows our engineering team to perform precise cross-reference verification and L10 life calculations. This technical data enables us to confirm the appropriate precision class and seal configuration for your unique linear motion application.

Frequently Asked Questions

Q: How do I verify the authenticity of these linear bearings?
A: We provide full batch traceability for every unit. You can scan the QR codes using the official brand applications to confirm the manufacturing origin, material specifications, and production date, ensuring you receive genuine bearing steel components rather than counterfeit substitutes with soft inner rings.

Q: What cross-reference checks are necessary beyond the base model number?
A: Base numbers often mask critical differences in internal design. We verify the exact seal variants, open or closed shapes, and precision classes to ensure the replacement matches your equipment's thermal and contamination requirements, preventing premature failure caused by incorrect internal clearance or retainer material.

Q: How should I select the right precision class for my CNC application?
A: Precision classes from P0 to P2 dictate the dimensional tolerances and straightness of the ball tracks. High-precision CNC spindles and automated optical inspection machines typically require P4 or P2 grades to minimize positioning errors, whereas general material handling systems can operate reliably with standard P0 or P6 tolerances.

Q: What are the maintenance requirements for high-speed nylon retainers?
A: Nylon retainers offer excellent low-voice and high-speed performance but require strict adherence to lubrication schedules. You must use compatible greases that do not chemically degrade the polymer and ensure adequate distribution to prevent friction heat buildup, which can lead to retainer deformation and eventual cage failure under continuous reciprocation.
