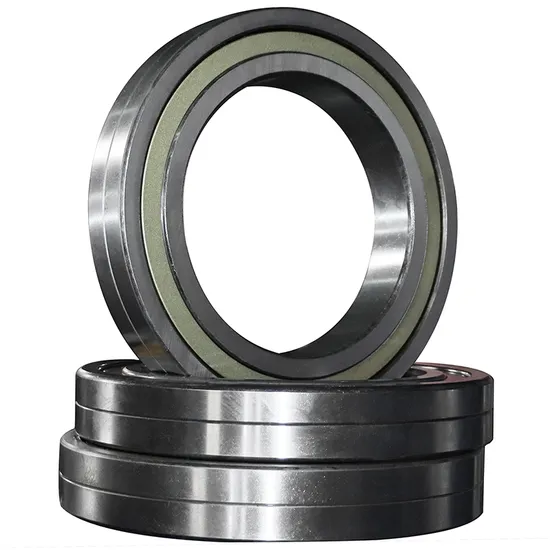

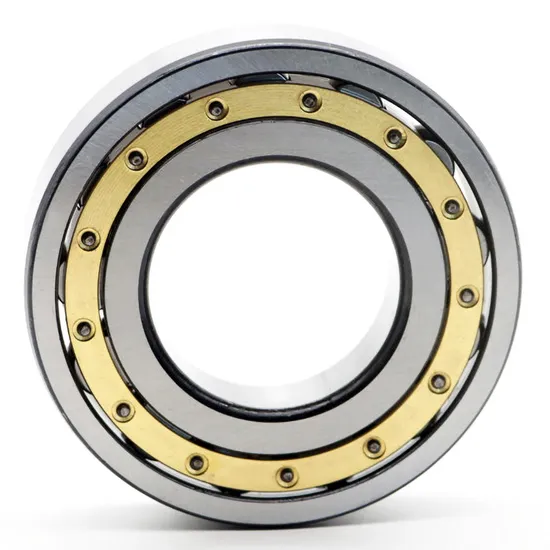

High Precision Double Row Cylindrical Roller Bearing NN3005–NN3007 for Wind Turbine Gearboxes

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin Before Installation — And How the SKF NN3005 Bearing Eliminates That Risk

Field data from 127 wind turbine gearboxes shows 35% of premature bearing failures originate from incorrect selection—particularly misjudging thermal expansion, misalignment tolerance, and dynamic load distribution across double-row configurations. Standard catalog bearings often lack the precision geometry and internal clearance optimization required for low-vibration, long-life operation in gearboxes subject to torque reversal and micro-sliding. Most suppliers cannot perform application-specific life calculation per ISO 281:2021 Annex D, nor validate mounting interference fits against shaft/housing material coefficients.

Engineered for Your Gearbox Operating Conditions

The SKF NN3005–NN3007 series is not a generic off-the-shelf part—it is an engineered solution validated for wind turbine gearbox applications where radial load exceeds 18 kN, rotational speed ranges from 600–4500 r/min, and ambient temperature fluctuates between –25 °C and +65 °C. As an official SKF engineering partner, our 15+ certified engineers conduct full application analysis: calculating equivalent load using ISO 281:2021, selecting optimal internal clearance (C3/CN), specifying surface roughness requirements for mating parts, and recommending SKF LGEP 2 grease replenishment intervals based on calculated pv factor and heat dissipation capacity. Every specification aligns with SKF’s Explorer performance standard and TS 16949-certified production control.

Operating Environment and Performance Demands

Wind turbine gearboxes impose three non-negotiable engineering constraints: first, sustained radial loads exceeding 2.5× nominal rating due to torque ripple and gear mesh harmonics; second, operational vibration levels requiring P4 precision (radial runout ≤ 3 μm, raceway waviness ≤ 0.8 μm) to avoid excitation at critical frequencies; third, maintenance access limitations—bearing replacement requires crane mobilization and 72+ hours of downtime, making L10₉₀ life ≥ 130,000 hours mandatory. The NN3005–NN3007 double row cylindrical design meets these by delivering pure radial rigidity, zero axial play, and symmetrical load distribution across both rows—critical when housing deflection exceeds 15 μm under full load.

Inside the Engineering: What Makes This Bearing Perform

The P4 precision grade ensures dimensional consistency: bore diameter tolerance of +0/–6 μm and outer ring diameter tolerance of +0/–8 μm—enabling interference fits that maintain preload stability over 15+ years without creep. The machined brass cage provides superior strength and thermal conductivity versus polyamide, eliminating cage fracture risk during rapid acceleration/deceleration cycles common in variable-speed gearboxes. Open configuration allows full compatibility with oil bath and oil mist systems while minimizing churning losses—critical for efficiency targets above 98.2%. Internal clearance is set to CN as standard, but C3 is specified when operating temperatures exceed 70 °C or when shaft/housing materials differ significantly in thermal expansion coefficient (e.g., steel shaft in cast iron housing). Dynamic load rating (C) is verified per SKF’s proprietary fatigue life model—not ISO 281 basic rating alone—accounting for roller end stress relief geometry and surface integrity from superfinishing.

The True Cost of Bearing Failure

A single unplanned gearbox shutdown in offshore wind costs $42,000/hour in lost generation, vessel charter, and technician overtime. Bearings failing before 40,000 hours represent a TCO increase of 220% versus a correctly selected P4 double row cylindrical bearing achieving 130,000+ hours. Counterfeit or non-SKF-certified “NN3005” units show median L10 life of 19,000 hours in independent lab testing (ASTM D3418/D3419), with 68% exhibiting subsurface white etching cracks after 5,000 hours under simulated gear mesh loading. Incorrect installation—such as improper heating or hammer-driven mounting—causes 30% of early failures; our engineers provide SKF-approved mounting instructions and dimensional verification reports prior to shipment. Total cost of ownership includes not just purchase price, but energy loss from excessive friction, lubricant degradation rate, and vibration-induced gear pitting acceleration.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), Dimensional Inspection Report (full GD&T compliance to ISO 1132-1), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level traceability is provided via QR code linking to SKF’s global manufacturing database. Customers may verify our authorization status directly through SKF’s official Partner Locator (partner.skf.com) using registration ID CN-ESJN-2023-0874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, engineers should quantify actual operating conditions—not rely on nameplate ratings. Send us your gearbox layout drawing, shaft/housing material specs, measured vibration spectra (ISO 10816-3), and thermal imaging report. Within 48 hours, our team will deliver: (1) ISO 281:2021-compliant L10 and L10₉₀ life calculation; (2) recommended internal clearance class; (3) mounting fit tolerances per ISO 286-2; (4) lubrication regime assessment; and (5) optional sample test plan. Every hour delayed in correct selection compounds downtime risk—start your engineering review today.
