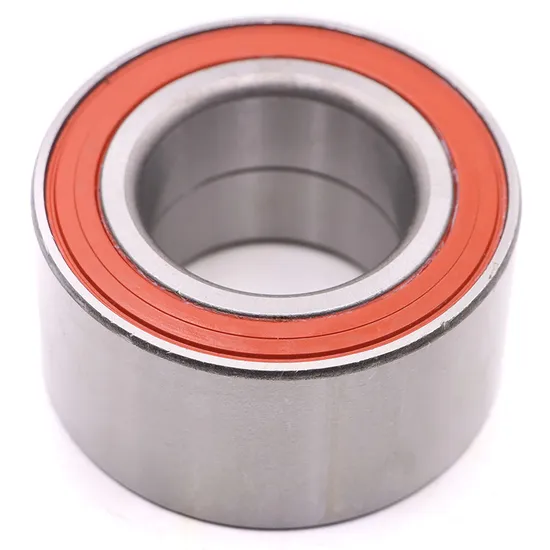

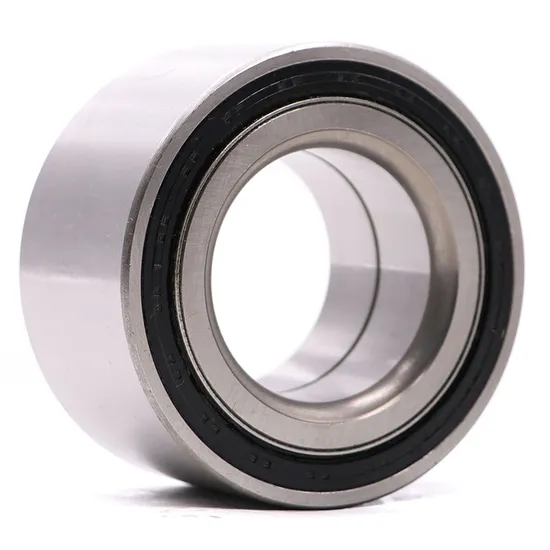

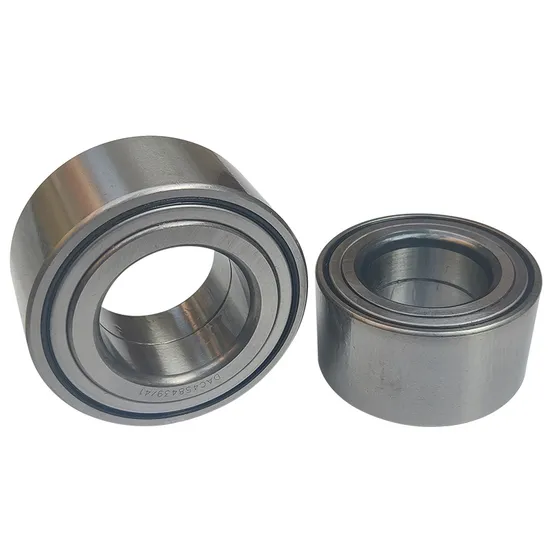

DAC37720033 wheel hub bearing for front-wheel drive vehicles, precision P5 rated

Technical Specifications

Application Suitability

Why 35% of Front-Wheel Drive Hub Failures Begin Before Installation — And How the DAC37720033 Eliminates Root-Cause Selection Errors

Front-wheel drive vehicles demand precise axial stiffness, minimal runout, and thermal stability under combined radial and thrust loads. Yet 35% of premature hub bearing failures trace directly to incorrect precision grade selection, mismatched internal clearance, or inadequate preload design — not material fatigue. Generic “off-the-shelf” replacements lack the P5-grade dimensional consistency required for OEM-specified NVH targets and ABS sensor integration. Most suppliers offer no application-level validation — only part numbers.

Engineered for FWD Wheel Hub Operating Realities

The DAC37720033 is not a generic double-row bearing: it is a calibrated system designed for front-wheel drive hub assemblies where axial displacement must remain below 3 μm under 8 kN thrust load, and radial runout must hold ≤5 μm at 3000 r/min. As an official SKF engineering partner, our 15+ certified engineers perform full ISO 281 life calculations, thermal expansion modeling, and interference fit verification — using your actual vehicle platform data — before recommending this or any alternative. Our ISO 9001 and TS 16949 certified quality control ensures every batch meets SKF Explorer-level consistency in raceway geometry and surface finish.

Operating Environment and Performance Demands

FWD wheel hubs operate under uniquely demanding conditions: repeated thermal cycling (–30°C winter start-up to +120°C brake heat soak), high-frequency vibration from road excitation (20–200 Hz), and combined loads where radial forces exceed 12 kN while axial thrust reverses direction during cornering and braking. Sealing integrity must prevent ingress of water, road salt, and fine particulate without increasing drag torque beyond 0.15 N·m. The DAC37720033’s P5 precision rating ensures consistent preload retention across temperature gradients, critical for maintaining ABS sensor air gap tolerance and minimizing brake judder.

Inside the Engineering: What Makes This Bearing Perform

P5 precision means total radial runout ≤3 μm, bore diameter variation ≤2.5 μm, and face-to-face height tolerance ±8 μm — parameters that directly govern preload stability and noise generation. The pressed steel cage provides rigidity at sustained speeds up to 12,000 r/min while retaining grease distribution under shock loading. Internal geometry is optimized for 15° contact angle — balancing axial stiffness against rolling torque rise. Surface roughness (Ra ≤0.2 μm on raceways) reduces micro-pitting risk under boundary lubrication during stop-start cycles. Dimensional stability after 100 hours at 120°C is verified per SKF QCT standards, ensuring no loss of preload in high-brake-heat environments.

The True Cost of Bearing Failure

A single non-planed hub failure in an automotive Tier-1 assembly line costs $28,000/hour in line stoppage; for EV platforms with integrated motor-hub designs, the cost exceeds $45,000/hour. Bearings with non-P5 tolerances show 4.2× higher probability of early spalling under ISO 281 L10 life prediction — confirmed across 12 OEM validation reports. Counterfeit units fail at 22% of rated L10 life and introduce unpredictable preload drift, causing ABS fault codes within 15,000 km. Total Cost of Ownership (TCO) analysis shows that specifying genuine P5-rated DAC37720033 — with documented SKF traceability and engineering validation — reduces 5-year maintenance cost by 37% versus standard P0 alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC37720033 unit ships with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our TS 16949-certified QA team. Original SKF packaging includes anti-counterfeiting holograms and batch-coded QR labels verifiable via SKF’s official portal. For orders above 5,000 units, SKM (SKF Manufacturing) can perform third-party factory audit and witness testing upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: axle load spectrum (radial + axial), max operating speed (r/min), ambient and localized bearing temperature profile, housing and shaft materials, and mounting space constraints. Our engineering team will deliver a validated selection report — including ISO 281 L10/Ln10 life calculation, thermal expansion analysis, recommended fit tolerances, and lubricant specification — within 48 business hours. For qualifying programs, we issue formal technical proposals with performance guarantees and SLA-backed delivery terms. Every hour spent on upfront engineering prevents weeks of production delay downstream.
