6309 Deep Groove Ball Bearing ZZ 2RS P4 P5 P6 Open Sealed Automotive Parts [WARN] draft identifier mismatch

Multi-brand authorized sourcing — Procure genuine 6309 deep groove ball bearings across SKF, FAG, and NSK in a single consolidated order with complete batch traceability.

Technical Specifications

Note: Precision classes P4, P5, and P6 listed in commercial titles require manufacturer catalog confirmation for specific SKU availability.

Application Suitability

Why Base Number Matches Still Cause Motor Burnouts

Matching the base 6309 deep groove ball bearing designation without verifying clearance and seal suffixes leads to catastrophic thermal binding.

I have seen procurement teams source standard clearance variants for high-temperature motor applications, only to watch the inner ring expand and seize the shaft during operation. A significant share of premature failures stems from overlooking how internal geometry and sealing friction interact with the actual operating environment . When cross-referencing, ignoring the suffix string turns a precision component into a liability.

Aligning Suffixes with Motor and Gearbox Demands

Selecting the correct 6309 deep groove ball bearing requires looking past the base number to match the exact operational profile. Our engineering review cross-references your OEM equipment specifications against the required internal clearance, cage design, and sealing arrangement. This prevents the common trap of installing a standard variant where a thermally compensated or heavily sealed version is mandatory for reliable continuous duty.

Navigating Thermal Expansion and Contamination Risks

Electric motors and gearboxes subject components to rapid temperature spikes and varying contamination levels. Radial loads combined with high rotational speeds generate internal heat, making the choice between standard and expanded clearance critical to prevent preload loss. Furthermore, the sealing interface must balance friction heat against ingress protection; contact seals keep out moisture but generate drag, while non-contact shields handle higher speeds but allow fine dust penetration .

Decoding the 6309 Configuration Options

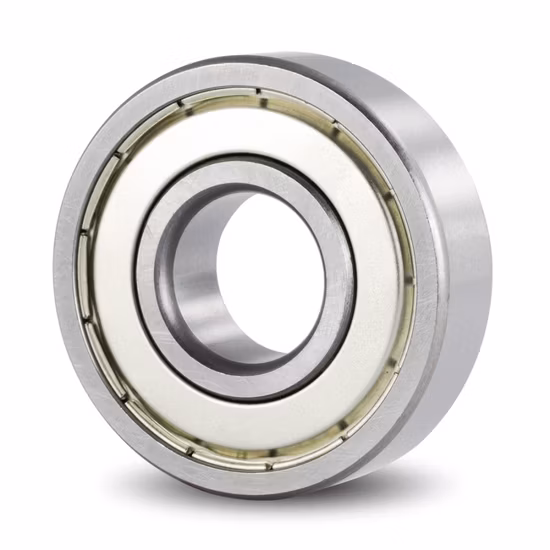

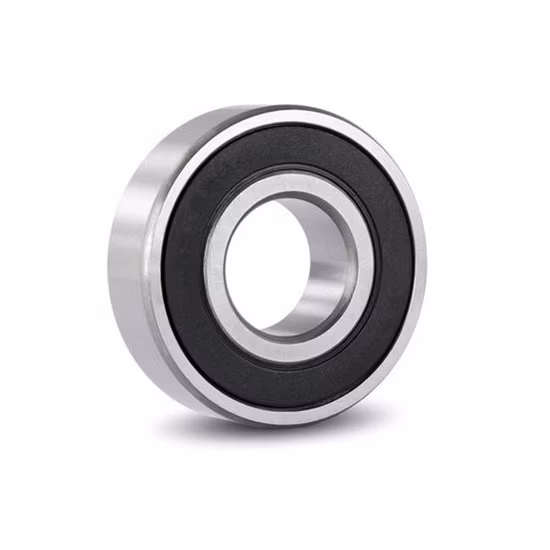

The Chrome Steel construction provides the necessary raceway hardness for high-speed durability, but the peripheral specifications dictate field survival. The ZZ double steel shields offer low-friction protection ideal for clean, high-RPM motor environments, whereas the 2RS double rubber seals provide superior exclusion of moisture and particulates for harsher gearbox conditions. Noise and vibration grades ranging from Z1V1 to Z4V4 allow buyers to specify the exact acoustic smoothness required, ensuring that precision spindle or quiet motor applications receive the appropriately sorted internal components.

The Hidden Toll of Incorrect Clearance Selection

Installing a standard clearance bearing in an application demanding thermal expansion compensation results in unplanned downtime and catastrophic damage to the shaft and housing. According to ISO 281 life calculation frameworks, operating with negative internal clearance drastically accelerates fatigue and generates excessive heat. This oversight voids equipment warranties and forces expensive emergency replacements, turning a minor procurement saving into a massive operational deficit .

Why Our Technical Verification Prevents Field Failures

We enforce a strict three-point cross-reference alignment covering base designation, internal clearance, and seal type to eliminate catalog mismatches. Our authorization across major international brands means you receive authentic components with verifiable lineage, avoiding the soft inner rings common in counterfeit batches. Every shipment includes comprehensive documentation, ensuring that the exact noise grade and sealing configuration you requested is what arrives at your dock. We focus on application-based selection rather than just pushing box quantities.

Documentation & Authenticity

• Certificate of Conformity validating the specific 6309 batch origin and manufacturer.
• QR verification via official brand apps to confirm authenticity upon delivery.
• Dimensional and running accuracy inspection reports confirming Z-grade noise tolerances.
• Material test reports verifying Chrome Steel composition and heat treatment hardness.
• Country-of-origin documentation for customs and compliance requirements.

Storage, Handling & Mounting Protocols

• Retain original factory packaging until installation to protect 2RS rubber seals from ozone degradation.
• Use induction heaters for cylindrical bore mounting to avoid damaging ZZ steel shields with mechanical force.
• Store Z4V4 low-noise variants in climate-controlled environments to prevent condensation inside open bearings.
• Apply clean gloves when handling open variants to prevent skin acidity from etting the Chrome Steel raceways.
• Verify internal clearance with feeler gauges before pressing to ensure thermal expansion allowances are maintained.

Engineering Review and Selection Support

To ensure optimal performance, provide your radial and axial load profiles, operating speeds, and ambient temperature ranges for a comprehensive L10 life recalculation. Sharing the specific OEM equipment number allows our technical team to execute a precise cross-reference verification, confirming the exact clearance and sealing suffix required. This collaborative review guarantees the selected configuration withstands your unique operational stresses.

Frequently Asked Questions

Q: Why does a 6309 deep groove ball bearing fail if the base number matches the OEM manual?
A: Base number matching ignores critical suffixes like internal clearance and seal type. Installing standard clearance in high-heat motors causes thermal expansion to eliminate internal play, leading to seizure. Cross-referencing must align the base number, clearance class, and sealing arrangement simultaneously to prevent premature field failure.

Q: Should I choose ZZ shields or 2RS rubber seals for my industrial gearbox application?
A: ZZ steel shields provide low-friction protection suitable for high-speed, relatively clean environments, minimizing heat generation. Conversely, 2RS rubber seals offer superior exclusion of moisture and heavy particulates, making them essential for gearboxes exposed to harsh contamination, despite introducing slightly higher rotational friction.

Q: How do Z1V1 through Z4V4 noise grades impact electric motor performance?
A: These grades classify the acoustic and vibration output of the bearing. Z1V1 represents standard commercial quietness, while Z4V4 denotes ultra-precision sorting for minimal vibration. Selecting the correct grade ensures smooth rotor operation and prevents resonant noise issues in sensitive servo or precision motor applications.

Q: How can I verify the authenticity of the 6309 bearings to avoid counterfeit soft inner rings?
A: We supply authorized stock with batch traceability. You can verify authenticity by scanning the packaging QR codes through the respective manufacturer's official mobile application. Additionally, we provide material test reports and dimensional inspection documents to confirm the Chrome Steel hardness and precise tolerances before shipment.
