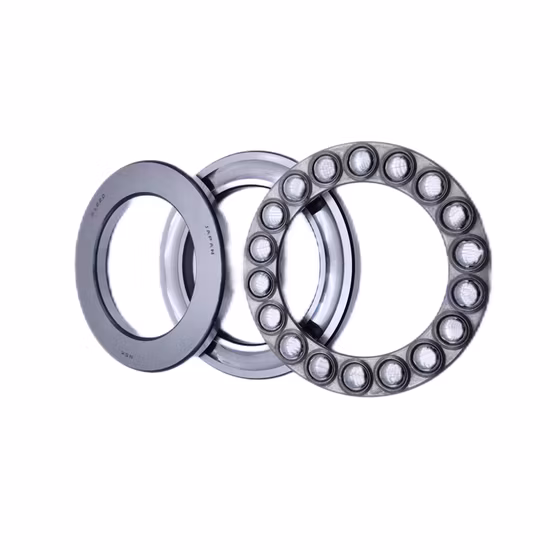

51115 Thrust Ball Bearing 75x100x19 NSK NTN Koyo OEM ODM Single Direction

Traceable Batch Origins — Every 51115 thrust ball bearing ships with verifiable manufacturer lot documentation to prevent counterfeit installation in heavy axial load applications.

Technical Specifications

Application Suitability

Why Suffix Omissions Cause Catastrophic Failures in the 51115 Thrust Ball Bearing

Matching the base designation is only the first step; ignoring internal design variations guarantees field failure under heavy axial stress.

Procurement engineers frequently source the 51115 thrust ball bearing based solely on the 75x100x19 envelope dimensions, overlooking critical internal suffixes. I once inspected a batch of failed thrust bearings in Dubai where the procurement team matched the base number but accepted a standard pressed steel cage instead of the machined brass variant required for the specific vertical pump application. The resulting cage fragmentation at elevated operating temperatures caused severe shaft scoring and unplanned downtime. Misaligned cross-references that ignore cage material, clearance class, and precision grade lead to thermal binding, especially when standard CN clearance is forced into applications demanding C3 for thermal expansion .

Matching Single Direction Axial Loads to Equipment Geometry

The 51115 thrust ball bearing is engineered exclusively to accommodate heavy axial loads in one direction, making it the precise choice for crane hooks and vertical pump shafts where radial forces are managed by separate radial bearings. Sourcing this component requires strict verification of the shaft and housing seating dimensions to ensure the tight-fitting shaft washer and loose-fitting housing washer are installed correctly. Our technical review process cross-checks your OEM equipment numbers against the 8115 equivalent to confirm that the internal contact geometry aligns perfectly with your machine's load profile.

Operating Challenges in Vertical and Lifting Environments

Vertical water pumps and crane slewing mechanisms subject thrust bearings to continuous axial pressure, often combined with shock loads during startup or load swinging. Because these bearings cannot support radial loads, any misalignment or radial displacement accelerates raceway wear. Operating temperatures in enclosed pump housings can degrade standard greases, necessitating high-temperature lubricants and potentially wider internal clearances to prevent preload buildup. Furthermore, contamination from abrasive slurries in pump environments or dust in lifting yards demands strict attention to external sealing arrangements, as the open design of standard thrust bearings relies entirely on the housing seals for protection .

Decoding the 51115 Internal Engineering Variables

While the base 51115 designation defines the physical envelope, the operational lifespan depends entirely on the unlisted suffix combinations selected at the point of manufacture. A standard pressed steel cage is suitable for moderate speeds and steady loads, but machined brass cages are mandatory for applications involving severe vibrations or higher rotational speeds to prevent cage fatigue. Precision classes dictate the running accuracy; while P0 suffices for general hoists, machine tool spindle thrust supports demand P6 or tighter tolerances to eliminate axial runout. Selecting the appropriate internal clearance is equally critical, as thermal expansion from the shaft can eliminate standard CN clearance, causing the balls to skid rather than roll.

The Hidden Costs of Incorrect Thrust Bearing Selection

Installing a thrust bearing with the wrong cage material or insufficient clearance does not just reduce lifespan; it triggers cascading mechanical failures. When a standard cage fractures under high-speed vibration, the loose fragments score the raceways, leading to sudden shaft seizure and catastrophic damage to the surrounding housing. Procurement decisions based purely on unit price rather than application-specific suffix alignment routinely result in voided equipment warranties and massive secondary repair costs. Adhering to the load rating and fatigue life calculation frameworks outlined in ISO 281 ensures that the selected variant can withstand the specific dynamic axial loads of the application .

Why Engineering Verification Matters for Thrust Components

Our procurement model eliminates the guesswork inherent in mixed-brand sourcing by providing authorized coverage across all major manufacturers under a single order. We prevent the common cross-reference error where a base number matches but the internal cage design differs from the OEM requirement. Every shipment includes batch traceability verified through official brand applications, ensuring the steel metallurgy meets original specifications. We conduct application-based selection reviews focusing on your specific axial load and speed parameters to recommend the exact clearance and cage combination. Finally, our pre-shipment dimensional inspections guarantee that the 75 mm bore and 100 mm outside diameter strictly adhere to the required precision class tolerances.

Documentation & Authenticity

• Certificate of Conformity validating the specific 51115 production batch and manufacturer origin.
• Official brand app QR verification to confirm authenticity and rule out cloned packaging.
• Material test reports confirming the metallurgical grade of the thrust washers and rolling elements.
• Dimensional and running accuracy inspection reports verifying bore, OD, and width tolerances prior to dispatch.
• Country-of-origin documentation required for customs clearance in heavy machinery import regions.

Storage, Handling & Mounting Protocols

• Retain the original vapor-phase inhibitor packaging until mounting to protect the precision-ground 75 mm shaft washer from ambient humidity.
• Use induction heaters with strict temperature limits when mounting the tight-fitting shaft washer to prevent annealing the bearing steel.
• Ensure the loose housing washer has adequate radial clearance in the housing bore to prevent radial binding during operation.
• Apply clean, lint-free gloves during handling to avoid transferring acidic moisture to the exposed raceways of this open-design bearing.
• Verify the axial alignment of the shaft and housing seating surfaces to prevent uneven load distribution across the 19 mm width.

Requesting Technical Verification and Cross-Referencing

To ensure the selected 51115 variant perfectly matches your operational demands, please provide the specific axial load magnitude, rotational speed, and operating temperature range. Supplying the exact OEM equipment model number or the original manufacturer's part number allows our engineering team to perform a precise cross-reference check against the 8115 equivalent. Detail any exposure to corrosive fluids or heavy particulate contamination so we can recommend the appropriate external sealing and lubrication strategy. This technical data enables us to confirm the optimal cage material, clearance class, and precision grade for your specific application.

Frequently Asked Questions

Q: How can I verify the authenticity of the 51115 thrust ball bearing upon delivery?
A: Authenticity is confirmed by scanning the QR code on the packaging using the manufacturer's official mobile application. This verifies the production batch and origin. We also provide a Certificate of Conformity and batch traceability documents that match the physical markings on the bearing washers, ensuring complete supply chain transparency.

Q: What internal parameters must align when cross-referencing the 51115 with the 8115?
A: Beyond matching the 75x100x19 base dimensions, you must verify the cage material, precision class, and internal clearance. A standard 8115 might feature a pressed steel cage, whereas your specific vertical pump application might require a machined brass cage for vibration resistance. We review these internal suffixes to prevent operational mismatch.

Q: Why is cage material selection critical for single direction thrust bearings in vertical pumps?
A: Vertical pumps often generate continuous vibration and operate at higher speeds, which can fatigue standard pressed steel cages. Machined brass cages offer superior structural integrity and damping characteristics under these conditions. Selecting the correct cage prevents fragmentation, which is a primary cause of sudden thrust bearing seizure in fluid machinery.

Q: What are the mounting rules for the shaft and housing washers of this thrust bearing?
A: The shaft washer, which has the 75 mm bore, must be mounted with a tight interference fit on the rotating shaft to prevent creep. Conversely, the housing washer must have a slight clearance fit within the housing bore to allow for minor misalignments. Incorrect mounting reverses these fits, leading to rapid raceway wear and premature failure.
