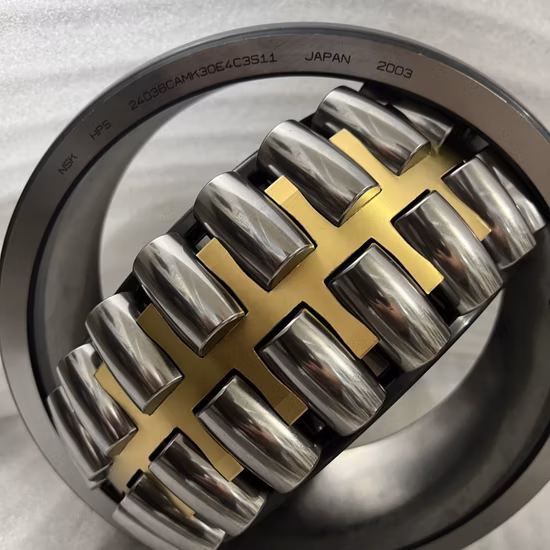

24096ecak30/W33 Spherical Roller Bearing with Outstanding Axial Load Capacity

Cross-Reference Triad Alignment — Every interchange for the 24096ecak30/W33 spherical roller bearing verifies base number, clearance, and cage suffix simultaneously.

Technical Specifications

Note: The 'c' and 'a' suffixes in this specific designation string remain unverified and require manufacturer catalog confirmation before finalizing cross-references.

Application Suitability

When Base Numbers Match But Field Loads Do Not

Matching the bore and outer diameter is only the beginning of survival in heavy extraction environments.

Procurement teams often approve interchange lists based solely on the dimensional envelope, ignoring the critical internal geometry and clearance class. In high-heat crushing zones, installing a standard clearance unit where thermal expansion demands a C3 or C4 equivalent inevitably leads to internal binding. . When the internal clearance vanishes under thermal growth, the rolling elements skid rather than roll, destroying the raceways long before the calculated fatigue life is reached. Securing the correct 24096ecak30/W33 spherical roller bearing requires looking past the basic envelope dimensions.

Navigating Extreme Axial Thrust in Mineral Processing

The 24096ecak30/W33 spherical roller bearing delivers outstanding axial load capacity specifically engineered for the severe misalignment and heavy thrust loads found in mineral processing. By ensuring the internal geometry aligns with the actual operational forces, we prevent the premature spalling that plagues generic replacements. Our technical review guarantees the selected unit handles the specific axial demands of your vibrating screens and crushers.

Thermal Growth and Lubrication Starvation in Harsh Zones

Heavy extraction equipment operates under intense radial loads combined with significant axial thrust, often in environments where ambient and friction heat drastically alter internal clearances. Without adequate thermal expansion allowance, the rolling elements bind within the raceway. Furthermore, continuous operation in dusty conditions demands reliable lubrication pathways to flush out contaminants and maintain the hydrodynamic film. . Managing these intersecting thermal and tribological challenges is essential for continuous operation.

Decoding the Suffix Architecture for Heavy Loads

The specific suffix combination dictates field survival. The k30 designation confirms a 1:30 tapered bore, requiring precise drive-up measurements during adapter sleeve mounting to achieve the correct residual internal clearance. The W33 feature provides an outer ring lubrication groove and three holes, ensuring fresh grease reaches the rolling elements directly to purge abrasive dust. The 'e' suffix denotes an enhanced internal design, optimizing load distribution across the rollers for maximum radial capacity. Understanding these exact design features prevents catastrophic installation errors.

The Hidden Cost of Suffix Neglect

Overlooking a single suffix character routinely results in unplanned downtime and catastrophic damage to the surrounding housing and shaft assemblies. A mismatched bore taper leads to improper clamping force, causing the inner ring to spin on the sleeve and ruin the shaft journal. Ignoring the required clearance class for high-temperature applications triggers thermal seizure, voiding equipment warranties and halting entire production lines. . These failures are entirely preventable through rigorous specification matching.

Why Our Technical Verification Protects Your Assets

We refuse to execute粗放 cross-references that only match the basic bore and diameter. For this specific designation, we rigorously verify the k30 taper ratio and W33 lubrication pathway against the original equipment manufacturer's exact requirements. Our authorized distribution network provides complete batch traceability across all major international brands, eliminating the risk of counterfeit components with soft inner rings. We conduct an application-based selection review covering your specific load, speed, and temperature parameters to ensure absolute compatibility. Every shipment is backed by comprehensive documentation, giving your maintenance team total confidence in the hardware.

Documentation & Authenticity

• Certificate of Conformity validating the exact enhanced internal design specifications.
• Manufacturer batch and lot traceability linked directly to the production facility.
• Official brand app QR verification confirming material authenticity upon delivery.
• Dimensional and running accuracy inspection report verifying the 1:30 tapered bore geometry.
• Country-of-origin documentation supporting your specific import compliance requirements.

Storage, Handling & Mounting Protocols

• Store the unit in its original moisture-barrier packaging until the exact moment of installation to protect the precision-machined k30 tapered bore from corrosion.
• Use clean, lint-free gloves when handling the exposed rolling elements to prevent acidic skin moisture from initiating micro-pitting.
• Follow strict drive-up measurement procedures when mounting the 1:30 tapered bore onto the adapter sleeve to guarantee the correct residual internal clearance.
• Utilize the W33 outer ring groove and holes immediately after installation to purge any mounting contaminants with fresh, high-viscosity grease.
• Employ appropriate lifting equipment for this large-diameter unit to prevent dropping, which could dent the enhanced internal raceways and cause early fatigue.

Initiating Your Technical Procurement Review

Provide your precise operational parameters, including radial and axial load profiles, operating speeds, and thermal conditions, so our engineering team can validate the clearance class and L10 life calculations. Share the original equipment manufacturer part numbers or existing housing dimensions to facilitate an exact cross-reference verification. Supplying these technical details ensures the proposed solution perfectly matches your specific heavy-duty application requirements.

Frequently Asked Questions

Q: How do I verify the authenticity of the 24096ecak30/W33 spherical roller bearing upon delivery?
A: Every unit we supply includes batch and lot traceability documentation linked to the manufacturer. You can verify the material authenticity and production origin by scanning the designated codes using the official brand application on your mobile device, ensuring the component is entirely genuine and free from cloned markings.

Q: Why is matching the exact clearance and cage suffix critical during cross-referencing?
A: Base dimensional numbers often match across different internal designs, but installing a standard clearance unit in a high-heat environment causes thermal binding. We strictly align the base number with the exact clearance, cage material, and precision suffixes to prevent internal skidding and ensure the replacement survives the actual field conditions.

Q: What is the practical difference between a standard cylindrical bore and the k30 tapered bore?
A: The k30 designation indicates a 1:30 tapered inner ring bore, which requires mounting with an adapter sleeve and lock nut on a cylindrical shaft. This design allows maintenance crews to precisely adjust the internal radial clearance during installation by measuring the drive-up distance, ensuring optimal performance under heavy loads.

Q: How should I select the correct clearance class for applications involving significant thermal expansion?
A: Standard clearance is insufficient when equipment operates at elevated temperatures, as thermal growth reduces the internal gap and causes binding. We evaluate your specific operating temperature and shaft interference fit to recommend a C3 or C4 equivalent clearance class, ensuring the bearing maintains a positive operational gap under full thermal load.

Q: What are the best practices for mounting bearings featuring a tapered bore and adapter sleeve?
A: Mounting requires calculating the exact drive-up distance to achieve the specified residual internal clearance. Technicians must use feeler gauges or dial indicators to measure the clearance reduction while tightening the lock nut, ensuring the inner ring expands sufficiently to grip the shaft without eliminating the necessary operational gap.
