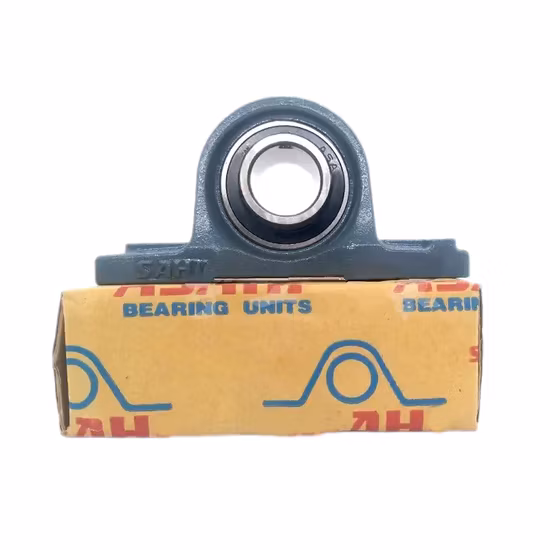

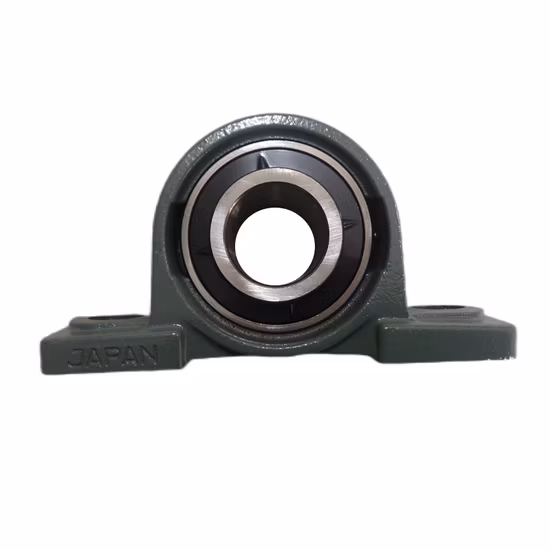

UCP320 Pillow Block Bearing P320 Agricultural Machinery Cast Iron Housing

Verified Authenticity — Every UCP320 pillow block bearing ships with scannable QR codes linked directly to the manufacturer's official verification app, eliminating cloned label risks.

Technical Specifications

Note: The '320' dimension series and bore code suffix requires manufacturer catalog confirmation for exact internal geometry.

Application Suitability

Why Soft Inner Rings Destroy Harvesters During Peak Season

Genuine metallurgy prevents catastrophic shaft scoring when dust and heat collide.

Counterfeit insert bearings often feature soft inner rings that pass casual visual inspections but fail rapidly under field loads. When the inner ring hardness falls below specification, the set screws tear through the raceway during high-torque startup, causing the shaft to spin inside the bore. This leads to severe shaft scoring, unplanned downtime right during the harvest window, and costly equipment rebuilds . Sourcing a verified UCP320 pillow block bearing ensures the inner ring maintains the necessary hardness to grip the shaft securely.

Matching the Unit to Field Contamination

Agricultural and material handling environments demand more than just a basic bearing block. The UCP320 pillow block bearing utilizes a deep groove raceway optimized for single-row load distribution, handling the combined radial and axial forces typical in conveyor drives. We review your specific mounting arrangement to ensure the housing fit and internal clearance align with your equipment's operational profile, preventing premature wear from misalignment.

Thermal Expansion and Clearance Selection

In high-temperature applications like grain dryers or outdoor conveyors exposed to direct sunlight, thermal expansion drastically alters internal geometry. If a standard clearance is installed where a C3 or C4 was required, the thermal growth eliminates the internal play, causing the rolling elements to skid and the bearing to seize. Proper seal selection is equally critical; contact seals keep out abrasive crop dust but generate friction heat, while non-contact shields reduce friction but allow fine particulate ingress .

Decoding the Housing and Insert Combination

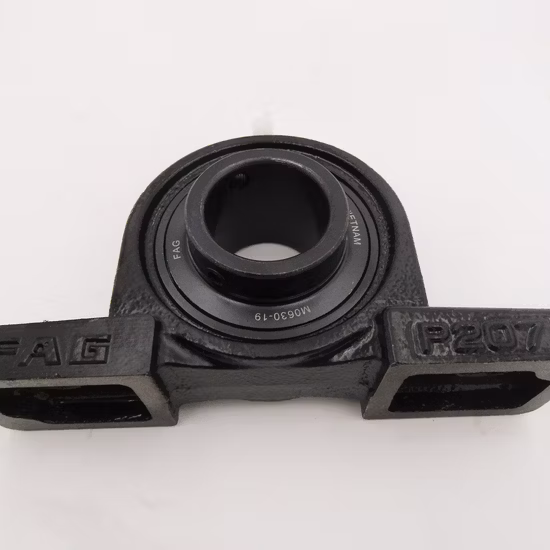

The UCP designation identifies this as a pillow block unit featuring a cast iron housing (Model P) paired with a wide inner ring insert. The cast iron construction provides the necessary damping and structural support for high-speed and high-temperature environments. While the base number matches standard dimensional outlines, verifying the exact internal design, seal type, and relubrication capability is essential. A mismatched seal type can lead to rapid grease degradation in dusty conditions, starving the deep groove raceway of lubrication.

The Hidden Costs of Ignored Suffixes

Overlooking internal clearance and seal suffixes during replacement leads to rapid thermal binding and cage failure. When a unit seizes in a critical conveyor drive, the resulting shaft damage often requires complete assembly replacement rather than a simple bearing swap. According to ISO 281 life calculation frameworks, operating a bearing without the correct clearance for the ambient temperature drastically reduces its fatigue life, leading to catastrophic damage and voided equipment warranties .

Sourcing With Technical Oversight

We supply authorized multi-brand coverage, meaning your mixed-brand MRO orders are handled through a single, verified channel. Cross-brand interchange for the P320 equivalent is matched on clearance, cage material, and precision, not just the base designation. Our application-based selection review covers load, speed, and temperature to prevent the exact CN clearance failures I have witnessed in agricultural machinery. Batch traceability is provided for every unit, ensuring you know exactly which manufacturer produced your specific lot.

Documentation & Authenticity

• Certificate of Conformity confirming the exact UCP320 designation and manufacturing origin.
• Batch and lot traceability documents linking the physical unit to the factory production run.

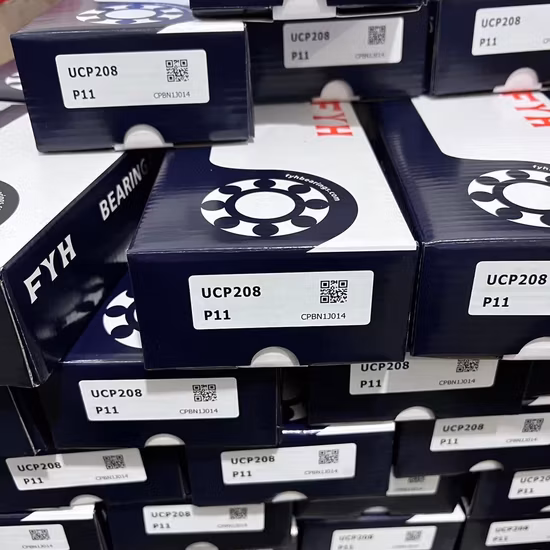

• Official brand app QR verification to instantly reject cloned labels and soft-ring counterfeits.
• Material test report validating the cast iron housing grade and insert ring metallurgy.
• Dimensional and running accuracy inspection report verifying bore tolerances before dispatch.

Storage, Handling & Mounting

• Store the UCP320 in its original packaging to protect the cast iron housing from ambient humidity and corrosion.
• Inspect the wide inner ring set screws for thread integrity before applying the specified tightening torque.
• Ensure the shaft surface is clean and within tolerance to prevent the inner ring from spinning under load.
• Follow the manufacturer's relubrication intervals if the unit features a grease fitting, using compatible high-temperature grease.
• Align the pillow block base carefully during mounting to avoid inducing extra radial loads on the deep groove raceway.

Preparing Your Technical Inquiry

To ensure precise selection and L10 life复核, please share your operational parameters including radial and axial loads, operating speeds, and ambient temperature ranges. If you are replacing an existing unit, providing the OEM equipment number or the exact suffix configuration from the old nameplate allows our engineering team to perform a comprehensive cross-reference check and confirm the optimal clearance class for your application.

Frequently Asked Questions

Q: How do I verify the authenticity of the UCP320 using official apps?
A: Scan the QR code on the box or bearing label using the specific manufacturer's official mobile application. The app will confirm the batch number, production date, and origin. This step is critical to identify cloned labels placed on counterfeit units with soft inner rings that fail prematurely in heavy-duty agricultural applications.

Q: What cross-reference checks are needed when replacing this pillow block?
A: Beyond matching the P320 base housing dimensions, you must verify the internal clearance class, seal type, and insert width. Installing a standard clearance unit in a high-temperature conveyor application will cause thermal binding. We cross-reference these specific suffixes to ensure the replacement matches the original equipment manufacturer's exact engineering requirements.

Q: How do I choose the right housing material for corrosive farm environments?
A: While this model features a standard cast iron housing suitable for most general material handling and agricultural loads, highly corrosive environments involving chemical fertilizers or washdowns may require alternative materials. We can review your specific exposure conditions to determine if stainless steel or specialized coated housing variants are necessary to prevent structural degradation.

Q: What are the recommended mounting practices for P-model blocks?
A: Ensure the shaft is clean, straight, and machined to the correct tolerance before sliding the insert into place. Tighten the set screws evenly to the specified torque to secure the wide inner ring without distorting the bore. Finally, check the cast iron housing alignment to prevent binding the deep groove raceway during rotation, which accelerates wear and increases operating temperatures.
