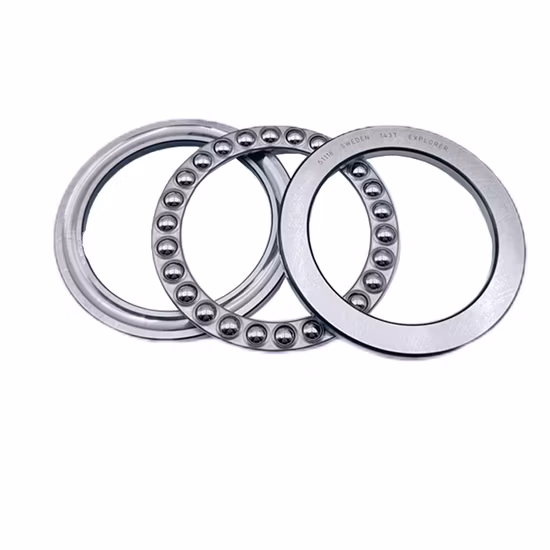

51130 51132 51134 51136 51138 Thrust Ball Bearing NSK NTN Koyo OEM ODM

Traceable 51130 batches — Every single direction thrust unit we dispatch carries a verifiable lot code linked directly to the manufacturer production run, ensuring full material and dimensional accountability.

Technical Specifications

Application Suitability

Why Base Numbers Fail the 51130 Thrust Ball Bearing in Vertical Pumps

Matching the base designation without verifying internal clearances is the fastest route to thermal binding in vertical shafts.

During my years handling aftermarket drivetrain and heavy equipment repairs across Latin America, I dismantled numerous gearboxes where a standard clearance thrust washer was installed in a high-temperature vertical application. The raceways were severely discolored from thermal expansion locking the rolling elements. When sourcing a 51130 thrust ball bearing, assuming the base number covers your operational needs ignores the critical clearance and precision requirements . A basic number match often results in standard CN clearance being installed where thermal expansion demands C3, leading to catastrophic field failures.

Aligning Single Direction Thrust Units with Vertical Loads

Selecting the correct 51130 thrust ball bearing requires looking beyond the catalog number to evaluate the actual axial load profile and mounting orientation. Because this single direction design handles axial loads exclusively in one direction, it is highly effective for crane hooks and vertical pumps where the load vector is constant and gravity-assisted. Our technical review process verifies that the internal geometry and washer seating dimensions align precisely with your housing tolerances, preventing uneven load distribution across the ball complement.

Vertical Shaft Challenges and Thermal Demands

Vertical shaft applications subject thrust washers to continuous axial compression, making the lubrication film thickness critical for preventing metal-to-metal contact. In vertical water pumps or crane hoists, ambient temperature fluctuations and operational heat can cause the shaft and housing to expand at different rates. If the internal clearance is too tight, this thermal growth eliminates the operational gap, causing the rolling elements to skid rather than roll. Proper lubrication selection, combined with the correct initial clearance class, ensures the bearing accommodates these thermal shifts without generating excessive friction or premature cage wear .

Decoding the Base Designation and Hidden Variables

The 51130 identifier represents the fundamental dimensions—150 mm bore, 190 mm outside diameter, and 31 mm width—but it contains no suffixes to define clearance, precision, or cage material. In thrust applications, this absence of suffixes is a major procurement risk. Without explicitly specifying a C3 clearance for high-temperature vertical pump shafts, suppliers will default to standard CN clearance, which lacks the thermal expansion buffer required for continuous duty. Similarly, standard pressed steel cages may suffice for slow-moving crane hooks, but high-speed rotary tables demand machined brass cages to withstand increased centrifugal forces and vibration.

The Hidden Costs of Incorrect Thrust Washer Selection

Installing a thrust washer with inadequate internal clearance or the wrong cage material inevitably leads to unplanned downtime and severe equipment damage. When thermal binding occurs, the resulting friction can weld the rolling elements to the raceways, destroying the shaft seating and requiring extensive machining repairs. According to ISO 281 life calculation frameworks, operating a bearing outside its designed clearance envelope drastically reduces the fatigue life, voiding equipment warranties and inflating maintenance budgets .

Securing Reliable Interchange and Authenticity

Sourcing heavy-duty thrust components requires strict adherence to dimensional and internal accuracy, which is why our cross-reference process evaluates more than just the base number. We verify that alternative brand equivalents match the exact internal geometry and load ratings required for your specific crane or pump application. Every unit is sourced through authorized channels, eliminating the risk of counterfeit washers with soft inner rings that deform under heavy axial loads. We provide comprehensive application-based selection reviews to ensure the chosen configuration handles your specific speed and temperature parameters.

Documentation & Authenticity

• Certificate of Conformity validating the exact 150x190x31 mm dimensional specifications.
• Batch and lot traceability linking the thrust washers to the original production run.
• Official brand app QR verification confirming the authenticity of the NSK, NTN, or KOYO packaging.
• Dimensional and running accuracy inspection reports verifying washer flatness and bore tolerances.
• Country-of-origin documentation supporting customs compliance for international heavy machinery shipments.

Storage, Handling & Mounting

• Store the 150 mm bore thrust washers flat in original packaging to prevent warping of the thin raceway rings.
• Use clean lint-free gloves when handling the exposed rolling elements to prevent moisture-induced corrosion on the steel surfaces.
• Ensure the shaft and housing seating surfaces are perfectly perpendicular to avoid edge loading on the single direction thrust assembly.
• Apply the specified grease or oil lubricant evenly across the ball complement before closing the housing to prevent dry starts.
• Verify the axial preload and seating alignment during installation to guarantee stable single direction load transfer.

Engineering Review and Selection Support

To ensure optimal performance in your vertical shaft or hoisting application, please provide the specific axial load values, operating speeds, and expected temperature ranges. Sharing the exact OEM equipment number or housing dimensions allows our engineering team to perform a precise cross-reference check and verify the required internal clearance class. This technical data enables us to confirm the correct cage material and lubrication strategy for your operating environment.

Frequently Asked Questions

Q: How do I verify the authenticity of 51130 thrust bearings using official brand apps?
A: Scan the QR code printed on the product packaging using the official NSK, NTN, or KOYO mobile application. This verifies the batch number and confirms the bearing was manufactured in their authorized facilities, protecting your vertical pump equipment from counterfeit washers with substandard metallurgy that fail under heavy axial loads.

Q: What are the critical cross-reference checks when interchanging 51130 across brands?
A: Beyond matching the 150x190x31 mm base dimensions, you must verify the internal clearance class, cage material, and precision grade. A direct number match might overlook a required C3 clearance or a machined brass cage, leading to thermal binding or cage failure when the thrust washer is installed in high-temperature crane or pump applications.

Q: Which cage materials are available for 51130 bearings in heavy-duty crane environments?
A: These thrust washers are typically available with pressed steel cages for standard low-speed crane hook applications, or machined brass cages for operations involving higher speeds, heavy vibrations, or marginal lubrication conditions. Selecting the correct cage ensures structural stability and reliable ball guidance under continuous axial compression.

Q: What mounting practices prevent damage to thrust bearing washers during installation?
A: Thrust washers are highly sensitive to misalignment. Ensure the shaft shoulder and housing seating surfaces are perfectly square to the axis before installation. Applying force directly to the correct washer ring during pressing, and verifying perpendicularity, prevents brinelling and ensures the single direction load is distributed evenly across all rolling elements.
