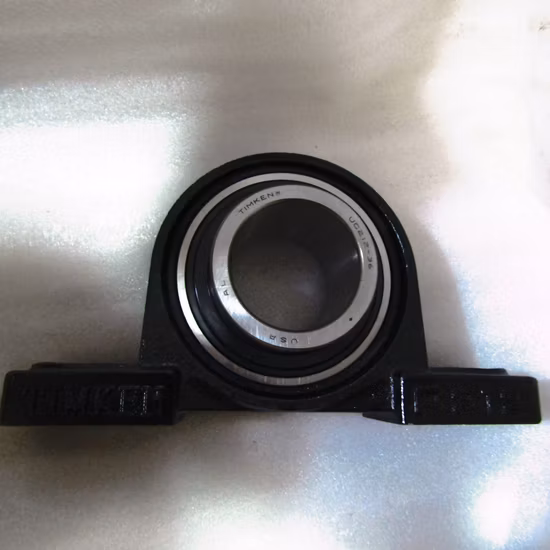

UCPA212-36 Pillow Block Bearing UCPA212-37 38 39 UCPA213-40 41 Supplier [WARN] draft identifier mismatch

Multi-Brand Authorized Coverage — Sourcing the Ucpa212-36 alongside mixed SKF, FAG, or NSK requirements in a single purchase order eliminates multi-vendor coordination delays.

Technical Specifications

Note: The 'A' suffix in the Ucpa212-36 designation remains unverified and requires specific manufacturer catalog confirmation prior to final procurement.

Application Suitability

Why Conveyor Tail Pulleys Fail When Suffix Details Are Ignored

A base number match does not guarantee operational survival in high-moisture environments.

Procurement teams frequently approve pillow block units based solely on the primary dimension code, overlooking critical seal variants and internal clearance configurations. In agricultural and material handling sectors, this oversight leads to rapid moisture ingress or thermal binding when standard CN clearance is forced into high-temperature drying equipment. Field technicians then face unplanned downtime replacing units that failed prematurely due to mismatched internal geometry rather than material fatigue . Securing a reliable Ucpa212-36 pillow block bearing supplier ensures these microscopic specification gaps are closed before the equipment ever ships.

Matching the Ucpa212-36 to Heavy-Duty Conveyor Loads

The deep groove raceway and single-row configuration effectively manage the combined radial and moderate axial loads typical in belt conveyor tail pulleys. As an authorized Ucpa212-36 pillow block bearing supplier, we verify that the cast iron housing mass provides the necessary rigidity to dampen vibration from uneven material flow. This alignment prevents the housing from cracking under continuous shock loading, ensuring the insert bearing maintains its concentricity within the block.

Environmental Contamination and Thermal Expansion Risks

Agricultural and material handling environments expose bearing blocks to abrasive dust, crop residue, and significant temperature fluctuations. Standard contact seals may generate excessive friction heat if the shaft speed increases, while non-contact shields might allow fine particulate ingress. Furthermore, if the equipment operates near heat sources, thermal expansion of the shaft can eliminate internal clearance, causing the rolling elements to skid and the cage to fail . Selecting the correct seal suffix and clearance class is non-negotiable for these specific operational profiles.

Decoding the Inch-Series Bore and Housing Geometry

The "-36" suffix strictly defines the 2-1/4 inch imperial bore diameter, which dictates the shaft machining tolerances required for a secure fit. The "UC" prefix confirms the set screw locking mechanism, which relies on precise tightening torque to prevent inner ring fretting without crushing the shaft surface. The "P" housing designation indicates a vertical base with specific bolt-hole spacing that must align perfectly with the conveyor frame mounting pads to avoid inducing preload stress on the cast iron structure during installation.

The Hidden Costs of Interchange Errors

Substituting a metric bore equivalent or ignoring the specific housing footprint dimensions often results in catastrophic misalignment. When the bearing block is forced into position to match mismatched bolt holes, the outer ring binds inside the housing, destroying the self-aligning capability and accelerating raceway spalling. This leads to warranty voidance and severe collateral damage to the driven shaft and adjacent seals, far exceeding the initial cost savings of an incorrect cross-reference.

Why Our Technical Review Prevents Field Failures

We do not just ship boxes; our engineering team reviews the cross-reference matrix to ensure the replacement Ucpa212-37 or Ucpa212-38 units match the exact seal friction and clearance parameters of your OEM setup. We verify that the cast iron housing casting quality meets the rigidity demands of your specific vibrating screens or augers. By validating the set screw torque specifications and providing batch-traceable documentation, we eliminate the guesswork that typically causes early-life failures in inch-series pillow block applications.

Documentation & Authenticity

• Certificate of Conformity verifying the cast iron housing material grade and structural integrity.
• Batch and lot traceability linking the specific Ucpa212-36 production run to the manufacturer.
• Official brand app QR verification to instantly rule out cloned codes and soft inner rings.
• Dimensional inspection report confirming the 2-1/4 inch bore tolerance and housing bolt-hole spacing.
• Running accuracy inspection ensuring the deep groove raceway meets vibration limits before dispatch.
• Country-of-origin documentation for seamless customs clearance across international borders.

Storage, Handling & Mounting

• Store the Ucpa212-36 in original packaging to protect the cast iron housing from ambient humidity corrosion.
• Use calibrated torque wrenches for the UC set screws to prevent inner ring cracking on the 2-1/4 inch shaft.
• Align the P-type vertical base bolt holes precisely to avoid binding the outer ring in the housing.
• Verify the unverified 'A' suffix clearance before mounting in high-temperature drying conveyors.
• Keep the unit sealed until installation to prevent agricultural dust from contaminating the factory grease.

Engineering Support for Your Next Procurement

To ensure the Ucpa212-36 or its cross-references like the Ucpa213-40 perfectly match your machinery, please provide the exact radial and axial load profiles, operating speeds, and ambient temperature ranges. Supplying the OEM equipment serial numbers allows our technical team to validate the housing footprint and sealing requirements against the original factory specifications, ensuring you receive a dimensionally and functionally exact replacement.

Frequently Asked Questions

Q: What does the imperial "-36" suffix mean for shaft preparation?
A: The "-36" indicates a precise 2-1/4 inch bore diameter. The shaft must be machined to this exact imperial dimension with appropriate h6 or j7 tolerances to ensure the set screw locking mechanism grips securely without causing localized stress concentrations or shaft deformation during heavy-load conveyor operations.

Q: How do we choose the right seal for dusty agricultural environments?
A: For high-dust agricultural machinery, triple-lip contact seals are preferred to block fine particulate ingress, though they generate slightly more friction. If the shaft speed is high, non-contact shields or specialized labyrinth seals might be necessary to prevent overheating, requiring a detailed review of the specific RPM and contamination levels.

Q: Can we interchange the Ucpa212-36 with a metric bore equivalent?
A: Directly swapping an inch-series bearing with a metric equivalent is highly discouraged. The 2-1/4 inch bore and specific housing bolt-hole spacing dictate the mounting geometry. Using a metric adapter sleeve alters the axial positioning and can compromise the set screw locking effectiveness, leading to premature shaft fretting.

Q: What causes the inner ring to crack during installation?
A: Inner ring cracking typically occurs when technicians over-torque the set screws or use impact tools to drive the bearing onto an oversized shaft. The UC locking mechanism requires precise, calibrated torque applied evenly to both screws to secure the 2-1/4 inch bore without inducing hoop stress fractures in the inner ring.
