HK2210 HK2212 HK2216 HK2220 HK2230 Needle Roller Bearing [WARN] draft identifier mismatch

Verified Via Official Apps — Every HK2210 HK2212 HK2216 HK2220 HK2230 needle roller bearing we dispatch features packaging QR codes fully scannable through the manufacturer's official application for immediate authenticity confirmation.

Technical Specifications

Note: The HK prefix and subsequent numerical codes represent unverified suffixes requiring manufacturer catalog confirmation for exact dimension series and bore indicators.

Application Suitability

Why Base Number Matches Still Cause Drawn Cup Bearing Failures

Matching the base designation is never enough when internal cage designs and clearance tolerances dictate field survival.

Procurement teams frequently source components based solely on the stamped base number, overlooking critical internal variations. I have seen assembly lines grind to a halt because a standard drawn cup unit was installed in a high-speed gearbox without verifying the cage material or radial internal clearance. When the thermal expansion of the shaft exceeds the installed clearance, the rollers skew, generating immense friction heat that destroys the thin outer shell . Sourcing the correct HK2210 HK2212 HK2216 HK2220 HK2230 needle roller bearing requires looking past the basic stamp to ensure the internal geometry perfectly matches the operational thermal and dynamic loads.

Aligning Drawn Cup Geometry with Operational Demands

Selecting the right configuration from the HK2210 HK2212 HK2216 HK2220 HK2230 needle roller bearing range depends entirely on the shaft hardness and housing bore conditions of your equipment. If the shaft is hardened and ground, a without-inner-ring variant saves space and weight, while softer shafts mandate an inner ring to prevent rapid wear. Our technical team reviews your exact housing tolerances to recommend the precise structural style, ensuring the thin-walled outer shell seats correctly without collapsing during press-fitting.

Navigating Thermal and Lubrication Boundaries

Open-type radial designs demand meticulous attention to the external lubrication supply and housing contamination seals. In gearboxes experiencing high rotational speeds, oil splash or directed jet lubrication must flow freely through the open cage to carry away friction heat. Conversely, in agricultural machinery exposed to heavy particulate matter, the lack of integrated seals means the housing itself must provide robust labyrinth or lip seal protection. Failing to account for these environmental factors leads to lubricant starvation and accelerated surface fatigue .

Decoding the Thin-Walled Outer Shell Mechanics

The defining characteristic of these units is the deep-drawn, thin-walled outer shell, which serves as both the raceway and the structural housing. This design maximizes the radial load capacity within an extremely compact cross-section, making it ideal for space-constrained gearboxes and automotive transmissions. Because the outer shell is relatively thin, it relies entirely on the rigidity of the surrounding housing bore for support; any housing distortion directly transfers to the raceway, causing edge loading on the rollers. The open design facilitates direct heat transfer to the housing, but it also requires the application engineer to carefully calculate the interference fit to avoid crushing the shell during installation.

The Hidden Downtime Cost of Incorrect Fits

Treating a precision drawn cup component like a generic stamped metal part inevitably leads to catastrophic equipment failure. If the housing bore is out of round or the interference fit is too aggressive, the thin outer shell deforms, restricting roller movement and causing immediate thermal binding. Such premature failures trigger unplanned downtime, void equipment warranties, and often cause secondary damage to adjacent gears and shafts. Adhering strictly to mounting tolerances and verifying the exact internal clearance class prevents these costly operational disruptions .

Securing Traceability in a Market Flooded with Clones

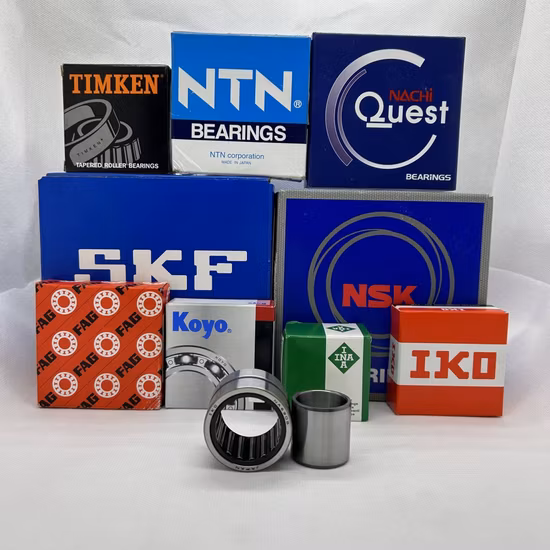

The market is saturated with counterfeit drawn cup units featuring soft inner rings and cloned packaging that easily pass casual visual checks. We counter this by providing authorized distribution coverage across all major international brands, allowing you to consolidate mixed-brand requirements into a single, fully traceable order. Our cross-reference process aligns not just the base number, but the exact cage material and clearance suffix, preventing the thermal binding issues that plague generic substitutions. Every batch we supply includes verifiable documentation linking directly back to the manufacturer's production facilities, ensuring your assembly line never inherits someone else's quality control failure.

Documentation & Authenticity

• Certificate of Conformity validating the specific HK series designation and origin country.
• Batch and lot traceability records linking directly to the original manufacturer's production run.
• Official brand app QR verification support for instant packaging and product marking authentication.
• Material test reports confirming the metallurgical composition of the bearing steel components.
• Dimensional and running accuracy inspection reports verifying shell thickness and bore tolerances before dispatch.

Storage, Handling & Mounting

• Retain original factory packaging until pressing to prevent humidity from corroding the open bearing steel raceways.
• Use calibrated arbor presses for installation; hammering will instantly collapse the thin drawn cup outer shell.
• Verify housing bore roundness and surface finish before pressing, as the thin shell copies any housing defects.
• Apply clean, lint-free gloves when handling open variants to prevent skin acids from etching the exposed roller paths.
• Ensure shaft hardness meets specification if utilizing the without-inner-ring style to prevent rapid raceway wear.

Preparing Your Technical Inquiry

To ensure precise selection and cross-reference alignment, please provide the exact radial loads, operating speeds, and continuous temperature ranges of your application. Sharing the specific OEM equipment numbers or existing housing bore dimensions allows our engineering team to verify the required structural style and clearance class. This technical data enables us to conduct a thorough application-based selection review, guaranteeing the proposed solution matches your operational realities.

Frequently Asked Questions

Q: How do we verify the authenticity of the supplied drawn cup units?
A: We provide full batch traceability and certificates of conformity for every shipment. You can verify authenticity by scanning the QR codes on the packaging and product markings using the manufacturer's official mobile application, ensuring the components match the original production records and are not cloned counterfeits.

Q: Why is cross-referencing more than just matching the base designation?
A: Matching only the base number often overlooks critical internal differences like cage material or radial clearance. If a standard clearance unit is installed where thermal expansion requires a larger clearance, the rollers will bind and fail. We align all suffixes and internal geometries to prevent these field failures.

Q: How do we decide between open, sealed, or shielded needle roller designs?
A: Open designs require the housing to provide sealing and allow external lubrication to flow through the cage, ideal for enclosed gearboxes. Sealed or shielded variants retain grease and block contaminants but generate higher friction. The choice depends on your housing design, maintenance intervals, and environmental exposure.

Q: When is an inner ring required for these drawn cup bearings?
A: An inner ring is mandatory if the shaft acting as the inner raceway is not hardened to the required specification or lacks the proper surface finish. Running rollers directly on a soft or rough shaft will cause rapid wear and premature failure, making the inner ring a critical protective component.

Q: What are the correct mounting practices to avoid damaging the thin outer shell?
A: Never hammer the bearing into place, as the thin drawn cup shell will easily deform or collapse. Use a specialized mounting sleeve or arbor press that applies force only to the outer ring's end face. Ensure the housing bore is clean, properly sized, and free of burrs to prevent shell distortion during the press fit.
