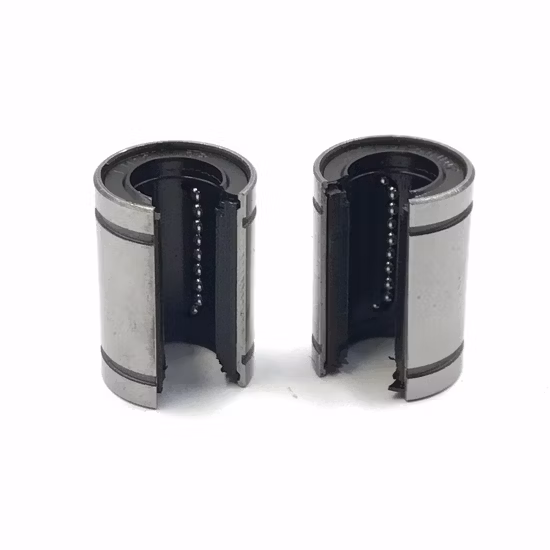

LM6-AJ LM8-AJ LM10-AJ Open Type Linear Bearing Authorized Supplier

Verified via official apps — Every Lm6-Aj open type linear bearing shipped includes batch traceability scannable through the manufacturer's official authentication application.

Technical Specifications

Note: The 'Aj' suffix is an unverified designation requiring manufacturer catalog confirmation, as standard open-type linear bearings typically use 'OP'.

Application Suitability

Why Base Numbers Deceive in Linear Motion Systems

Matching the basic designation while ignoring housing tolerances causes premature binding in high-speed traverse axes.

Procurement teams often source replacements based solely on the inner diameter and basic series, assuming dimensional interchangeability guarantees functional success. In automated gantries and precision grinding tables, this oversight leads to catastrophic rail binding or nylon cage fragmentation within weeks of installation. The reality of linear motion is that microscopic deviations in rail parallelism or housing bore geometry demand specific clearance adjustments that standard closed bearings cannot accommodate . When an open-style bearing is forced into a misaligned housing without the ability to adjust the wrap-around clearance, the resulting edge loading destroys the rolling elements and scars the shaft. Sourcing the correct configurable design is the only way to prevent unplanned downtime on critical CNC machinery.

Engineering the Lm6-Aj open type linear bearing for Parallelism Deviations

The primary advantage of this configurable design lies in its ability to compensate for inevitable machining imperfections in the support housing. By utilizing an open profile, the bearing can be pressed into a slotted housing where a clamping screw actively adjusts the internal clearance against the shaft. This mechanical tuning neutralizes the effects of rail parallelism deviations that would otherwise induce severe internal stress. Our technical team reviews the housing clamping mechanism and shaft deflection characteristics to ensure the selected precision class actually functions as intended in the assembled state.

Navigating Thermal Expansion and Lubrication Starvation

High-speed traverse axes generate substantial friction heat, which alters the internal geometry and demands careful clearance management. If the housing clamping force is excessive, thermal expansion of the shaft leaves no room for the bearing to glide, resulting in immediate seizure. Conversely, insufficient clamping allows the bearing to rotate within the housing, causing severe fretting corrosion. Lubrication presents another hurdle; while nylon cages reduce weight and noise, they require consistent relubrication intervals to prevent dry running in high-cycle applications . Contaminant ingress from coolant or metallic dust further complicates the environment, making external wiper seals on the carriage mandatory to protect the rolling contact zones.

Decoding the Open Profile and Precision Tiers

The open shape is not merely a manufacturing shortcut; it is a critical engineering feature designed for adjustable preload in precision linear stages. When paired with a slotted pillow block, the housing can be tightened to eliminate play, achieving the rigidity required for heavy cutting loads on machine tool spindles. The nylon cage construction significantly reduces moving mass, allowing for rapid acceleration and deceleration without generating excessive acoustic noise. Material selection plays a vital role here; components are available in bearing steel or stainless steel variants to address specific environmental demands. Furthermore, the wide range of precision ratings allows engineers to balance cost against the strict geometric tolerances required for semiconductor wafer transfer mechanisms, ensuring the straightness error remains within acceptable micrometers over the full stroke length.

The Hidden Financial Drain of Incorrect Linear Guides

Installing a closed bearing in a housing that requires clearance adjustment inevitably leads to premature failure and voided equipment warranties. The resulting edge loading accelerates fatigue spalling on the shaft and the bearing raceway, turning a minor maintenance task into a complete axis rebuild. Beyond the direct replacement costs, the unplanned downtime on a multi-axis CNC router or an automated assembly line disrupts the entire production schedule . Utilizing the correct adjustable profile prevents these compounding losses by ensuring the linear guide operates within its designed kinematic envelope.

Securing Your Supply Chain Against Counterfeit Linear Components

The market is saturated with cloned linear bearings featuring soft inner rings that pass casual visual inspections but fail under dynamic loads. We mitigate this risk by providing authorized multi-brand coverage, ensuring every batch is fully traceable to the original manufacturer's production facilities. Cross-referencing is not just about matching the bore size; our engineers verify the exact cage material, shape, and precision suffixes to prevent thermal binding in your specific application. We reject the practice of substituting standard closed bearings when an adjustable profile is specified, protecting your equipment from the devastating effects of internal misalignment and premature cage fracture.

Documentation & Authenticity

• Certificate of Conformity validating the specific precision rating from P0 up to P2.
• Batch and lot traceability linking the Lm6-Aj open type linear bearing to the original factory run.
• QR verification codes scannable via brand official apps to confirm genuine origin.
• Material test reports confirming the metallurgical composition of the bearing steel or stainless variants.
• Dimensional and running accuracy inspection reports verifying straightness and bore tolerances pre-shipment.
• Country-of-origin documentation required for international customs and compliance clearance.

Storage, Handling & Mounting

• Keep the adjustable housing slotted and unclamped during storage to prevent permanent deformation of the open profile.
• Use clean lint-free gloves when handling P4 or P2 precision linear bearings to avoid acidic skin corrosion on the raceway.
• Apply the specified linear guide grease immediately before mounting, as open bearings lack internal sealed lubricant reservoirs.
• Align the open slit of the bearing with the housing clamp screw to ensure uniform clearance adjustment across the shaft.
• Avoid using carbon steel tools on stainless steel linear variants to prevent cross-contamination and subsequent localized rusting.

Initiating the Technical Selection Process

To ensure the selected linear guide meets your exact kinematic requirements, please provide the maximum radial and axial loads, traverse speed, and operating temperature range. Sharing the specific OEM equipment number or the detailed housing drawing allows our engineering team to verify the clamping mechanism and confirm the necessary precision class. This technical review guarantees that the adjustable clearance and material options are perfectly aligned with your application's environmental and dynamic demands.
