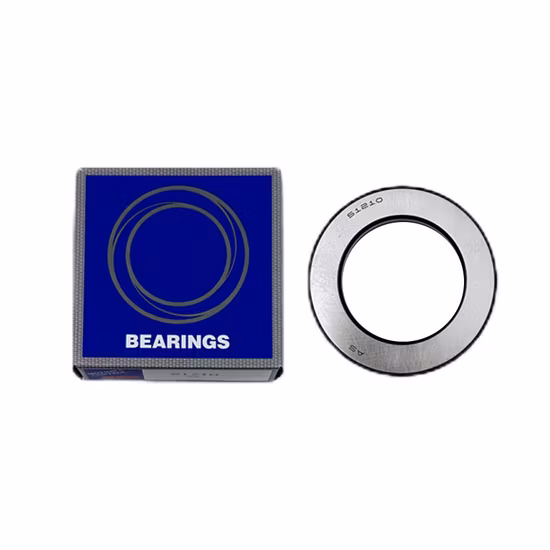

51110 8110 Thrust Ball Bearing 50x70x14mm Single Direction NSK NTN Koyo

Traceable Batch Origins — Every 51110 thrust ball bearing ships with manufacturer lot documentation for complete supply chain visibility.

Technical Specifications

Application Suitability

Why Base Number Matching Fails the 51110 Thrust Ball Bearing

Cross-referencing solely by the base designation often ignores internal design variations that dictate field survival.

Sourcing teams frequently approve replacements based on basic dimensional matches, overlooking critical cage material and internal geometry differences. When a standard stamped steel cage is inadvertently installed in a high-vibration crane hook application instead of a machined brass alternative, the resulting fatigue leads to rapid cage fragmentation. We have witnessed vertical pump shafts seize entirely because the cross-reference matched the outer dimensions but failed to account for the specific thrust washer profiling required for adequate lubrication flow .

Aligning the 51110 Thrust Ball Bearing with Axial Load Demands

This specific configuration excels in managing heavy, unidirectional axial loads while strictly prohibiting radial force transfer. Procuring the correct 51110 thrust ball bearing requires verifying that the mating shaft and housing washers match the exact contact geometry of your equipment. Our technical review process ensures that cross-brand substitutions maintain identical load distribution profiles, preventing localized stress concentrations on the thrust collar during continuous vertical operation.

Managing Vertical Shaft Dynamics

Vertical orientations introduce unique lubrication challenges, as gravity naturally pulls oil away from the upper contact zones of the rolling elements. In crane hook assemblies, the slow oscillation combined with massive axial tension demands lubricants with high film strength and extreme pressure additives to prevent boundary friction. Furthermore, the absence of radial support means any misalignment in the housing seating translates directly into uneven load sharing across the ball complement, accelerating localized wear and compromising the structural integrity of the entire lifting mechanism .

Deconstructing the Single Direction Architecture

The single direction design comprises two precision-ground washers and a ball-and-cage assembly, engineered specifically to absorb thrust from one primary vector. The 50x70x14 mm footprint provides a compact solution for tight vertical clearances, but the internal contact angle and raceway curvature must perfectly mirror the original equipment manufacturer's specifications. Selecting the appropriate cage material—whether pressed steel for standard speeds or machined brass for higher vibration environments—is critical, as the cage must withstand the gyroscopic forces of the balls without deforming under peak axial compression.

The Hidden Toll of Incorrect Thrust Washer Substitution

Installing an improperly matched thrust bearing in a vertical pump or crane assembly inevitably leads to unplanned downtime and catastrophic collateral damage. When the internal geometry fails to support the operational load, the washers can spall or crack, sending metallic debris into the gearbox or pump casing. This secondary damage often voids equipment warranties and necessitates complete assembly rebuilds rather than simple bearing replacements. Adhering to strict dimensional and material verification protocols prevents these compounding mechanical failures .

Securing Precision Through Authorized Channels

Our distribution network covers all major international brands, allowing you to consolidate mixed-brand requirements into a single, verified shipment. We execute cross-brand interchange matching based on internal geometry and cage design, not just the base 51110 or 8110 designation. Each unit undergoes an application-based selection review to confirm it suits your specific load and speed parameters. Furthermore, we provide complete batch traceability to the manufacturer, ensuring every component is verifiable through official brand applications, effectively eliminating the risk of counterfeit parts with soft inner rings entering your critical machinery.

Documentation & Authenticity

• Certificate of Conformity confirming the exact 51110 designation and origin country.
• Manufacturer batch and lot traceability records linked to the specific shipment.
• QR verification codes scannable via official brand apps for instant authenticity checks.
• Material test reports validating the metallurgical composition of the shaft and housing washers.
• Dimensional and running accuracy inspection reports verifying the 50x70x14 mm tolerances.

Storage, Handling & Mounting

• Retain original moisture-barrier packaging until installation to protect the precision-ground 50mm bore washer from corrosion.
• Handle the separated shaft and housing washers with clean gloves to prevent acidic skin oils from etching the raceways.
• Ensure the shaft washer is press-fitted tightly while the housing washer maintains a slight clearance to accommodate 70mm housing tolerances.
• Apply the specified grease directly to the ball-and-cage assembly before closing the housing, as single direction designs lack built-in lubrication reservoirs.
• Verify perpendicularity of the mounting surfaces to prevent uneven axial loading across the 14mm width during crane hook operation.

Initiating Technical Verification

To ensure the selected thrust bearing perfectly matches your operational requirements, please provide the specific axial load values, rotational speed, and continuous operating temperature. Sharing the original equipment manufacturer part numbers allows our engineering team to perform a comprehensive cross-reference check, verifying that internal design nuances align with your machinery. This technical validation guarantees the proposed solution delivers optimal service life and reliable performance in your specific vertical application.

Frequently Asked Questions

Q: How does the 51110 cross-reference to the older 8110 designation?
A: The 8110 is an older dimensional designation that corresponds to the modern 51110 nomenclature. While the basic 50x70x14 mm dimensions remain identical, internal geometries, cage materials, and precision grades may differ between eras and manufacturers. We verify these internal specifications during cross-referencing to ensure the replacement matches your equipment's exact operational demands.

Q: What are the critical mounting considerations for crane hook applications?
A: In crane hook swivels, the shaft washer must be tightly fitted to the rotating shaft, while the housing washer should have a slight clearance in the housing bore. This prevents the bearing from creeping under heavy axial loads. Ensuring the mounting surfaces are perfectly perpendicular is also vital to distribute the massive lifting forces evenly across all rolling elements.

Q: How can I identify counterfeit thrust bearings with cloned QR codes?
A: Counterfeiters often clone QR codes that redirect to fake verification websites. Genuine bearings feature unique, encrypted codes that must be scanned using the specific manufacturer's official mobile application. We supply only authorized inventory, providing direct access to these official verification channels and supporting documentation to guarantee absolute authenticity.

Q: When should I consider a double direction thrust bearing instead?
A: A single direction design like this one is engineered to handle axial loads from only one vector. If your vertical pump or machinery experiences reversing axial thrust or significant bidirectional loading during operation, a double direction bearing with a central shaft washer and two outer housings is required to maintain stability and prevent catastrophic internal separation.
