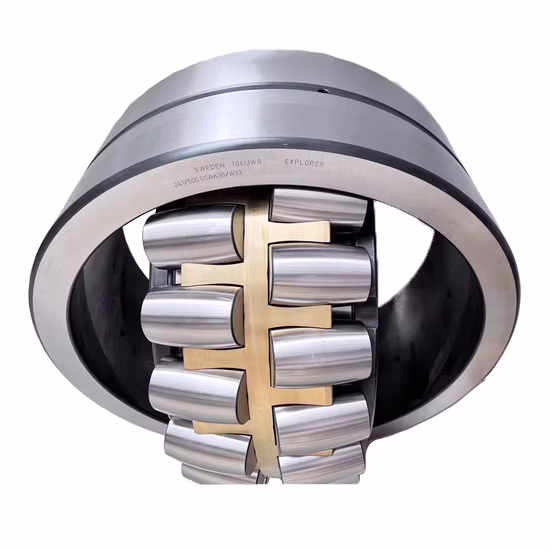

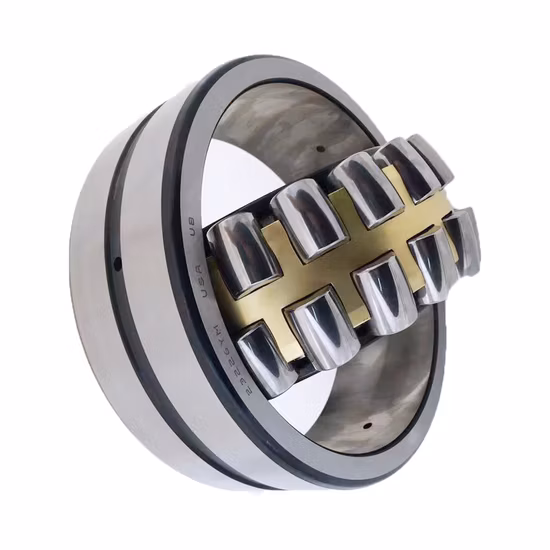

22316-E1-XL Spherical Roller Bearing C3 W33 mA K Wholesale

Multi-brand authorized coverage — Consolidate mixed-brand requirements for heavy-duty vibrating screens into a single traceable shipment without juggling multiple vendors.

Technical Specifications

Note: Suffixes E1 and XL denote optimized internal geometry and premium capacity series in specific manufacturer catalogs; always verify exact brand definitions during cross-referencing.

Application Suitability

Why Overlooking Suffixes Destroys Spherical Roller Bearings

A missing clearance or cage suffix turns a premium component into a catastrophic liability.

I have dismantled spherical roller bearings in desert mining sites where the inner ring turned blue from thermal binding. The root cause was rarely the base number; it was a cross-reference error that supplied a standard CN clearance instead of the required C3, or a pressed steel cage instead of machined brass. When procurement teams focus solely on the base designation, they ignore the thermal expansion and shock load realities of the site. A 22316-E1-XL spherical roller bearing must be matched precisely to the operating environment to prevent unplanned downtime .

Aligning the 22316-E1-XL spherical roller bearing with Site Realities

Matching this component to your equipment requires looking beyond the catalog number. We review the specific radial loads, axial thrust from vibrating mechanisms, and ambient dust levels to confirm if the machined brass cage and C3 clearance are truly optimal. This application-based selection review ensures the 22316-E1-XL spherical roller bearing survives the harsh realities of your specific site, rather than just fitting the housing dimensions.

Navigating Thermal and Shock Load Extremes

Vibrating screens and crushers subject components to severe shock loads and rapid temperature fluctuations. Standard clearance bearings cannot accommodate the thermal expansion of the shaft when operating continuously in high-ambient environments, leading to internal preload and eventual cage failure. Furthermore, the intense vibration demands a cage design that resists fatigue cracking, while heavy dust ingress requires reliable outer ring lubrication pathways to flush out contaminants and maintain a protective oil film .

Decoding the Critical Suffix Architecture

The C3 clearance class is non-negotiable for vibrating equipment, providing the necessary internal gap to absorb thermal expansion without binding. The W33 lubrication feature ensures that relubrication grease reaches the rolling elements directly through the outer ring groove, extending maintenance intervals in dusty environments. For high-vibration applications, the machined brass cage (mA) offers superior resistance to shock loads and cage fatigue compared to pressed steel alternatives. Finally, the tapered bore (K) variant allows for precise radial internal clearance adjustment during mounting on adapter sleeves, ensuring optimal preload.

The Hidden Costs of Cross-Reference Errors

Installing a bearing with incorrect internal geometry or clearance leads to premature failure and catastrophic damage to surrounding shafts and housings. When a standard clearance bearing is forced into a high-temperature application, the resulting thermal binding destroys the raceway and voids the equipment warranty. These failures are rarely isolated; they trigger cascading mechanical breakdowns that halt entire production lines, turning a minor procurement saving into massive financial losses .

Why Our Technical Verification Matters

We do not just match base numbers; we verify that the clearance, cage material, and bore type align perfectly with your OEM specifications. Our cross-reference expertise ensures that a request for a 22316-E1-XL spherical roller bearing is fulfilled with the exact suffix combination required for your thermal and load conditions. By providing batch traceability and official app verification, we eliminate the risk of counterfeit products with soft inner rings that plague the heavy machinery aftermarket.

Documentation & Authenticity

• Certificate of Conformity confirming the exact C3 clearance and brass cage specifications.
• Batch and lot traceability linking the specific unit to the manufacturer's production facilities.
• Official brand app QR verification to instantly confirm authenticity on the mining site.
• Dimensional and running accuracy inspection report verifying tolerance before dispatch.
• Country-of-origin documentation for smooth customs clearance in restricted regions.

Storage, Handling & Mounting Protocols

• Store the W33 variant in its original packaging to prevent dust from clogging the outer ring oil holes before installation.
• Use induction heating for cylindrical bore mounting, strictly monitoring temperature to preserve the C3 internal clearance.
• For the K tapered bore variant, measure the drive-in distance precisely to achieve the correct residual radial internal clearance.
• Keep the machined brass cage protected from impacts during handling to avoid deformation that causes vibration.
• Flush the housing thoroughly before mounting to ensure no abrasive mining dust contaminates the initial lubricant charge.

Engineering Support for Your Next Inquiry

To ensure precise technical alignment, please provide the specific radial and axial loads, operating speeds, and ambient temperatures of your application. Sharing the OEM equipment number allows our engineering team to perform a thorough cross-reference review and L10 life calculation. This data enables us to confirm the exact suffix configuration required for your machinery, ensuring optimal performance and longevity.

Frequently Asked Questions

Q: How do I verify the authenticity of the received components?
A: Every unit we supply features a unique QR code that can be scanned using the manufacturer's official mobile application. This provides instant verification of the batch, production date, and origin, ensuring you receive genuine products and eliminating the risk of counterfeit bearings with compromised metallurgy.

Q: Why is the C3 clearance critical for vibrating screen applications?
A: Vibrating screens generate significant friction and heat during operation. The C3 clearance provides a larger internal gap than standard CN, accommodating the thermal expansion of the inner ring and shaft. Without this allowance, the bearing experiences thermal binding, leading to rapid temperature spikes and premature cage failure.

Q: What is the advantage of a machined brass cage over pressed steel?
A: Machined brass cages offer superior structural integrity and resistance to shock loads, which are prevalent in crushing and screening equipment. They also provide better guidance for the rolling elements under high-vibration conditions, significantly reducing the risk of cage fatigue and catastrophic breakdown compared to standard pressed steel alternatives.

Q: How does the W33 suffix improve maintenance in dusty environments?
A: The W33 designation indicates an oil groove and three lubrication holes in the outer ring. This allows fresh grease to be injected directly into the center of the bearing, effectively flushing out abrasive dust and moisture while ensuring the rolling elements receive immediate lubrication, thereby extending service intervals in harsh mining conditions.
