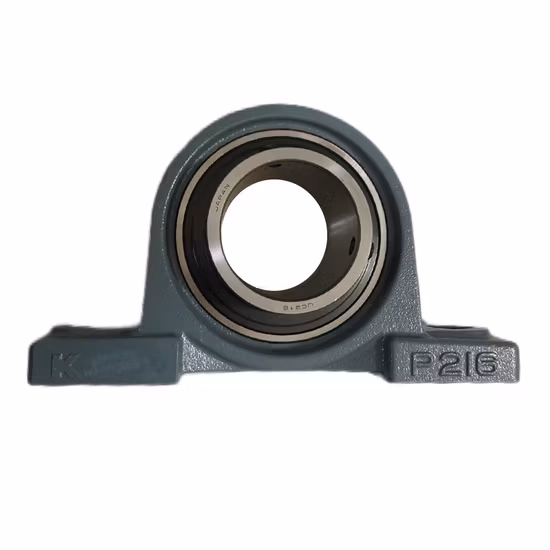

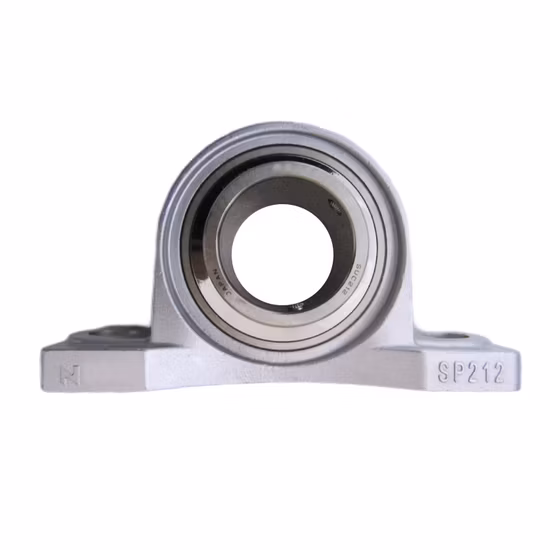

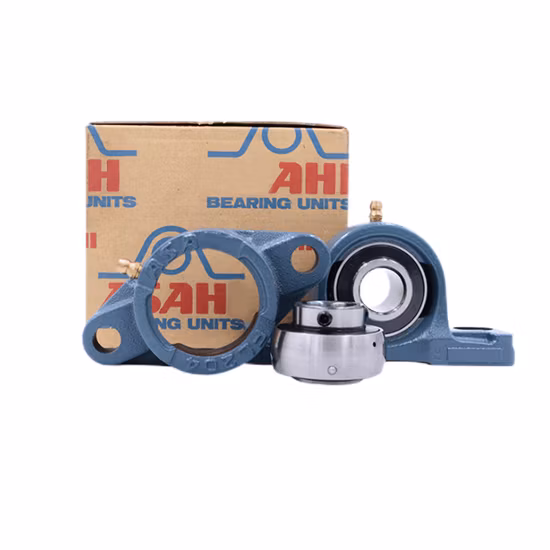

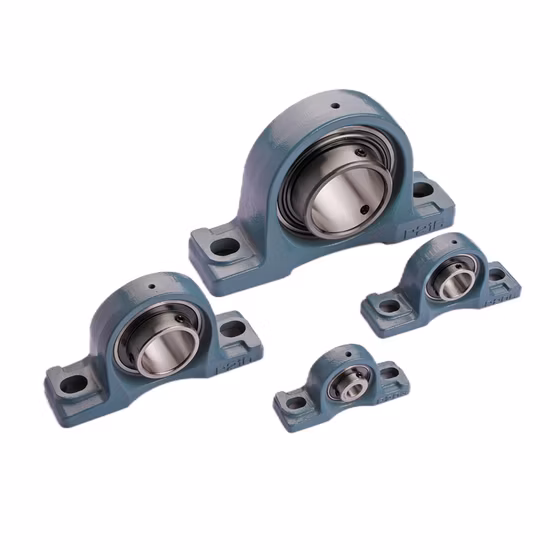

UCP310 Pillow Block Bearing for Agricultural Machine

Verified Origin Guarantee — Scan the manufacturer's official app QR code on every UCP310 carton to confirm batch authenticity before installation.

Technical Specifications

Application Suitability

Why Base Numbers Hide Critical Mismatches in UCP310 Pillow Block Bearing Sourcing

A matching designation does not guarantee a matching internal geometry or housing fit.

Sourcing teams often assume that any unit stamped with the correct basic number will drop into the existing mounts and handle the operational loads. In reality, substituting a light-duty housing or an incorrect internal clearance class under the same basic designation leads to rapid thermal binding when the shaft expands under continuous agricultural or conveyor operation . We review the exact housing dimensions and internal design parameters to ensure the replacement unit survives the actual field conditions, not just the catalog listing.

Matching the UCP310 pillow block bearing to Agricultural Loads

The heavy-duty series designation indicates a thicker housing wall and a larger insert outer diameter, providing the structural rigidity needed for shock loads encountered in harvesting and tilling equipment. When sourcing this UCP310 pillow block bearing, we verify that the cross-referenced equivalent maintains the same heavy-duty footprint rather than defaulting to a medium-duty alternative that shares the same bore size. This prevents housing fracture at the base during sudden equipment jamming.

Field Contamination and Thermal Cycling Challenges

Agricultural environments expose these units to abrasive crop dust, high moisture, and significant temperature swings between daytime operation and nighttime cooling. The deep groove raceway handles the primary radial loads from belt tension or rotor weight, but the housing must resist corrosion and prevent contaminant ingress. Proper lubrication intervals and seal integrity are critical, as fine particulate matter accelerates raceway wear and increases operating friction .

Decoding the Heavy-Duty Series and Bore Code

The "3" in the designation confirms this is a heavy-duty series housing, offering greater load capacity and mounting rigidity compared to standard medium-duty blocks. The "10" defines the specific bore diameter code, which must be matched precisely to the shaft dimension to prevent fretting corrosion or inner ring slippage. Understanding these suffix elements ensures the selected unit provides the necessary structural support for high-vibration applications without premature housing deformation.

The Hidden Cost of Interchange Errors

Installing a unit with incorrect internal clearance or a substandard housing material often results in unplanned downtime and catastrophic shaft damage. If the internal clearance is too tight for the operating temperature, the rolling elements will skid and generate excessive heat, leading to premature failure classified under ISO 15243 . This forces emergency maintenance, voids equipment warranties, and halts production lines far beyond the cost of the component itself.

Why Procurement Engineers Rely on Our Verification

We reject rough cross-references that only match the basic number, ensuring the heavy-duty housing dimensions and internal geometry align with your OEM specifications. Our batch traceability confirms the exact manufacturing lot, eliminating the risk of soft inner rings that plague the aftermarket. We provide cross-brand interchange expertise that accounts for housing footprint and load ratings, not just the bore size. Every shipment includes dimensional inspection reports to verify mounting tolerances before the units reach your facility.

Documentation & Authenticity

• Certificate of Conformity verifying the heavy-duty housing material grade.
• Batch and lot traceability linking the UCP310 to the original production run.
• QR verification via brand official apps to confirm insert and housing authenticity.
• Dimensional and running accuracy inspection report confirming bore and OD tolerances.
• Country-of-origin documentation for customs and compliance requirements.

Storage, Handling & Mounting

• Store the cast iron housing in a dry environment to prevent surface oxidation before installation.
• Keep the unit in its original packaging until mounting to protect the deep groove raceway from dust.
• Use induction heating for the inner ring if an interference fit is required on the shaft.
• Align the pillow block base carefully to avoid inducing external moments on the heavy-duty housing.
• Apply the recommended grease fill through the housing fitting to protect against agricultural contamination.

Preparing Your Technical Inquiry

To ensure precise selection and L10 life calculation, please provide the specific radial and axial loads, operating speeds, and ambient temperature ranges. Sharing the OEM equipment number allows our engineering team to perform a comprehensive cross-reference check, verifying that the housing footprint and internal geometry match your existing mounts. Detailing the environmental exposure helps us confirm the optimal material and sealing configuration for your application.

Frequently Asked Questions

Q: How can I verify the authenticity of the UCP series pillow block units upon delivery?
A: Every unit we supply features a traceable batch code and a scannable QR label. You can verify the authenticity directly through the manufacturer's official mobile application, which confirms the production facility, material grade, and original specifications, protecting your operation from counterfeit inserts with substandard hardness.

Q: Why do cross-reference errors occur when matching base UCP designations across brands?
A: Different manufacturers may use the same base designation but vary the internal clearance, housing footprint, or seal design. A rough interchange might match the bore size but fail to account for the heavy-duty housing dimensions or thermal expansion requirements, leading to mounting misalignment or premature thermal binding in the field.

Q: What are the boundary conditions for selecting cast iron versus alternative housing materials?
A: Cast iron provides excellent vibration damping and structural rigidity for standard heavy-duty applications. However, if the equipment operates in highly corrosive environments, such as fertilizer processing or washdown areas, we can source stainless steel or specialized coated housing variants to prevent structural degradation and extend service life.

Q: How should I handle mounting and alignment for these pillow block units?
A: Proper mounting requires cleaning the shaft and checking the dimensional tolerances before installation. The heavy-duty cast iron base must be aligned precisely with the mating structure to prevent binding. We recommend using calibrated torque wrenches for the mounting bolts and verifying the shaft alignment to minimize external loads on the bearing insert.
