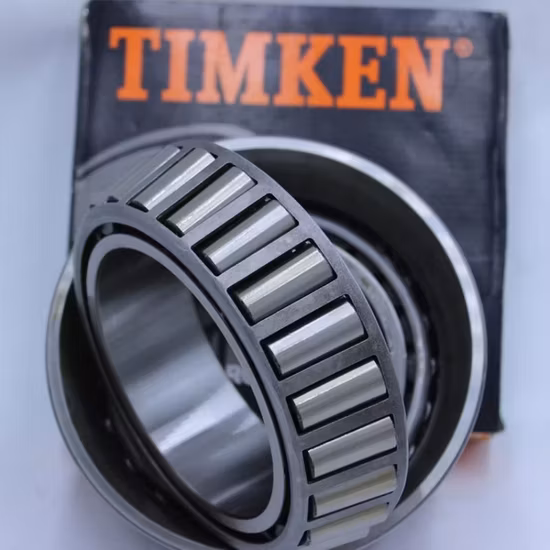

U399A/U365L Inch Taper Roller Bearing Single Row P4 Precision [WARN] draft identifier mismatch

Mixed-Brand Sourcing — Consolidate your SKF, FAG, and Timken requirements into a single shipment with full batch traceability for every U399A/U365L unit.

Technical Specifications

Note: U399A and U365L represent specific inch-series component designations; exact dimensional boundary data requires verification against the specific manufacturer's current catalog.

Application Suitability

When Base Number Matches Still Destroy Crusher Shafts

Sourcing the correct U399A/U365L inch tapered roller bearing requires looking far beyond the primary designation string.

During field deployments across Latin American mining sites, I have repeatedly witnessed catastrophic inner ring slippage on heavy crushers. The maintenance crews had successfully matched the base part number during cross-referencing, yet completely overlooked the specific inch taper angle and internal geometry variants. When a standard clearance or incorrect internal design is forced into a high-impact crushing environment, the inner ring loses its interference fit under thermal expansion, leading to severe fretting corrosion and unplanned downtime . True reliability demands strict verification of every suffix and dimensional tolerance.

Matching the U399A/U365L to High-Impact Environments

Selecting the right U399A/U365L inch tapered roller bearing for heavy machinery involves balancing radial loads with significant axial thrust. Our technical team reviews your specific load profiles and mounting arrangements to ensure the selected P4 precision variant maintains optimal contact stress distribution. This prevents localized spalling that frequently occurs when standard precision bearings are pushed beyond their geometric limits in rugged industrial gearboxes.

Navigating Thermal and Lubrication Extremes

In high-temperature processing or continuous heavy-load applications, thermal expansion drastically alters the internal clearance of single-row tapered designs. If the operational heat generation is not factored into the initial mounting preload, the rollers can skew, causing rapid cage wear and lubricant breakdown . Selecting the appropriate cage material—whether nylon for lower friction or brass for high-vibration stability—ensures the lubricant film remains intact under severe shock loading.

Decoding P4 Precision and Inch Geometry

The P4 precision classification dictates exceptionally tight tolerances for both dimensional accuracy and running precision, which is critical for minimizing vibration in high-speed pinion shafts. Unlike metric counterparts, the inch-series geometry of this designation relies on specific cup and cone angles to manage combined loads. The GCr15 bearing steel construction provides the necessary core toughness and surface hardness to resist brinelling under static shock loads, while the available cage options allow customization based on the specific speed and vibration profile of the host equipment.

The Hidden Toll of Incorrect Cross-Referencing

Relying solely on basic dimension matching without verifying internal design suffixes inevitably leads to premature failure. A mismatched taper angle or incorrect precision grade causes uneven load distribution across the roller ends, accelerating fatigue and resulting in catastrophic cage disintegration. According to failure analysis frameworks like ISO 15243, these installation and selection errors void equipment warranties and trigger extensive secondary damage to adjacent shafts and housings .

Why Procurement Engineers Trust Our Verification Process

We eliminate the risk of receiving counterfeit units with soft inner rings by sourcing exclusively through authorized channels. Our cross-referencing protocol strictly aligns the base number, the P4 precision suffix, and the exact inch taper geometry, preventing the field failures we have seen plague competing suppliers. Every shipment includes batch traceability that links directly back to the manufacturer's production facilities, ensuring the metallurgical integrity matches the demanding specifications of heavy-duty mining and material handling equipment.

Documentation & Authenticity

• Certificate of Conformity confirming P4 tolerance grades for the specific U399A/U365L batch.
• Original manufacturer batch and lot traceability linking directly to production records.
• Official brand app QR verification for immediate on-site authenticity validation.
• Material test reports verifying GCr15 steel composition and heat treatment integrity.
• Dimensional and running accuracy inspection reports confirming inch-series boundary limits.
• Country-of-origin documentation for customs clearance and supply chain transparency.

Storage, Handling & Mounting Protocols

• Retain original moisture-barrier packaging until installation to protect the GCr15 steel from ambient humidity.
• Use clean cotton gloves when handling P4 precision surfaces to prevent corrosive sweat transfer.
• Apply induction heating strictly controlled below the thermal limit of standard bearing steel for inner ring mounting.
• Verify the specific inch taper angle and shaft seating dimensions before applying the final mounting preload.
• Ensure compatible lubricants are used, matching the selected nylon or brass cage material requirements.

Initiating Your Technical Review

To ensure the selected variant perfectly matches your operational demands, please provide the exact radial and axial load calculations, operational speeds, and expected thermal profiles. Supplying the original OEM equipment numbers allows our engineering team to perform a rigorous cross-reference check, verifying that the internal geometry and precision suffixes align precisely with your machinery's original design intent.

Frequently Asked Questions

Q: Why is base number matching insufficient for cross-referencing this inch tapered design?
A: Matching only the base number ignores critical internal geometry, taper angles, and precision suffixes. In heavy-duty applications, installing a variant with incorrect internal clearances or mismatched cup angles leads to uneven load distribution, rapid thermal binding, and catastrophic inner ring slippage under operational stress.

Q: How does P4 precision impact the performance of single-row tapered roller bearings?
A: P4 precision ensures exceptionally tight control over dimensional and running accuracy. This minimizes vibration and uneven stress concentrations on the roller ends, which is crucial for maintaining lubricant film integrity and extending service life in high-speed or heavily loaded industrial gearboxes.

Q: What factors dictate the choice between nylon, brass, or iron cages?
A: The selection depends on the specific operational environment. Nylon cages offer lower friction and noise for moderate temperatures, brass cages provide superior durability and guidance under high vibration and shock loads, while pressed iron cages are suited for standard, cost-effective general machinery applications.

Q: How can we verify the authenticity and origin of the delivered bearings?
A: Every unit is supplied with batch traceability documentation and a unique QR code. Procurement and maintenance teams can scan this code using the official manufacturer application to instantly verify the production origin, material batch, and authenticity, completely eliminating the risk of cloned counterfeit components.
