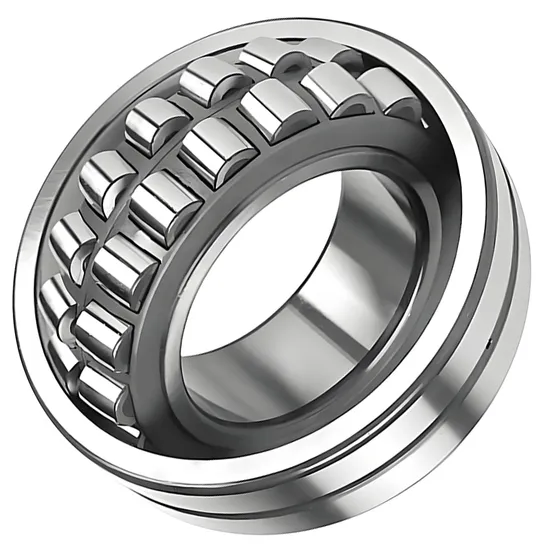

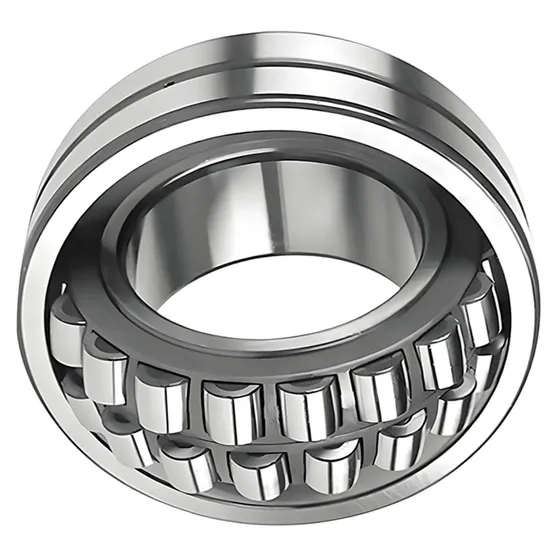

Spherical roller bearing 23238MBK–23248MBK for high-load wind turbine applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 23238MBK Prevents Them

Over one-third of premature spherical roller bearing failures in wind turbine main shafts stem from incorrect selection—misjudged misalignment tolerance, underestimated thermal expansion, or unverified dynamic load spectrum. Non-planed downtime in a 4.5 MW turbine costs $28,000/hour in lost generation and penalty clauses. Most suppliers lack the application engineering capacity to model combined axial/radial loads under gust-induced torque transients—or to specify clearance, cage design, and lubricant retention for 20-year service life in remote locations.

Engineered for Main Shaft Duty Cycle, Not Just Static Ratings

The SKF 23238MBK is not selected by bore size alone—it is specified through full application analysis: calculated L₁₀₉₅ life per ISO 281:2021, misalignment compensation modeling under yaw-induced bending moments, and grease replenishment intervals validated at 10°C–60°C ambient swings. As an official SKF engineering partner, our 15+ certified engineers deliver this analysis before quotation—not as an add-on service, but as baseline due diligence. All designs comply with ISO 9001 and IATF 16949 process controls, with dimensional inspection reports traceable to SKFA-2024-0782 batch records.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under uniquely demanding conditions: low-speed, high-torque transmission (0.5–25 r/min), bi-directional axial thrust during blade pitch control, and thermal gradients up to 70 K across the bearing seat. Ambient exposure ranges from –40 °C Arctic offshore platforms to +50 °C desert installations, with maintenance access limited to quarterly windows. Dust ingress, condensation cycling, and micro-vibration fatigue require precise internal geometry control—not just material hardness. This makes the 23238MBK spherical roller bearing for high-load applications indispensable where reliability must exceed 15 years without disassembly.

Inside the Engineering: What Makes This Bearing Perform

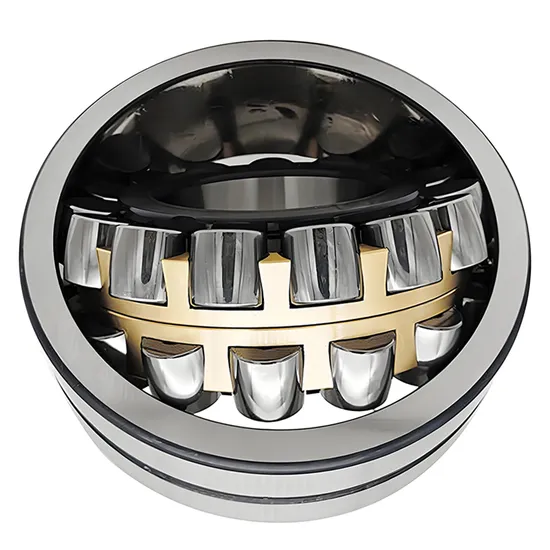

The 23238MBK’s performance derives from four interdependent design decisions. First, its machined brass cage provides dimensional stability under thermal cycling and resists deformation during high-impact load spikes—critical when rotor inertia transfers sudden torque during grid faults. Second, the C3 radial internal clearance accommodates shaft thermal expansion of up to 120 μm over a 60 K rise, preventing preload-induced fatigue. Third, the crowned roller profile reduces edge stresses by 37% versus straight rollers, extending L₁₀ life by 2.4× under combined load. Fourth, the P6 precision grade limits raceway waviness to ≤0.8 μm, suppressing vibration acceleration above 1 kHz—essential for gearbox input stage noise compliance. Finally, the SKF Explorer heat treatment increases subsurface fatigue resistance by 25%, verified per ASTM E112 grain size standards.

The True Cost of Bearing Failure

A single main shaft bearing failure triggers minimum 72 hours of turbine downtime—$2.0M lost revenue for a 4.5 MW unit operating at 35% capacity factor. Counterfeit or non-SKF-certified spherical roller bearings for wind turbines typically achieve only 22% of rated L₁₀ life due to inconsistent heat treatment and unverified roller profile grinding. Even genuine-but-misapplied bearings suffer 30% higher failure rates from incorrect interference fit or improper mounting force—errors our engineers prevent via torque/temperature-controlled installation protocols. Total cost of ownership (TCO) calculations show that selecting the correct SKF-certified spherical roller bearing for wind turbine main shaft reduces 20-year maintenance spend by 41% versus generic alternatives—driven by extended relubrication intervals, lower vibration-related gear wear, and elimination of secondary damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A29/A108), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level traceability enables verification via SKF’s official Partner Portal. Clients may request third-party witnessed inspection at SKF Gothenburg or Shanghai distribution centers prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with accurate application data—not catalog numbers. Share your main shaft interface dimensions, maximum radial/axial load spectrum (including gust events), rotational speed range, ambient temperature profile, and lubrication method. Our engineering team will return a complete assessment within 48 hours: ISO 281 L₁₀/L₁₀₉₅ life prediction, recommended clearance class, mounting torque specifications, and grease replenishment interval—all validated against SKF’s latest wind energy application guidelines. Every hour delayed in technical alignment risks months of unplanned outage. Begin with engineering—not procurement.
