Snl3144 Snl3148 Snl3152 Split Plummer Block Housings Pillow Blocking Bearing [WARN] draft identifier mismatch

Cross-Reference Triad Alignment — verifying Snl3144 split plummer block housing interchangeability requires matching bore tolerance, seal configuration, and center height simultaneously.

Technical Specifications

Application Suitability

Why Base Dimensions Alone Cannot Save a Snl3144 Split Plummer Block Housing

A matching base number is useless if the internal bore tolerance or seal geometry deviates from the OEM requirement.

During my years running quality inspections in Qingdao, I saw countless heavy-duty housings fail catastrophically not because the cast iron cracked, but because the internal clearances were mismatched. A slight deviation in the housing bore diameter or an incorrect seal lip design causes the internal bearing to overheat and seize under heavy radial loads . When procurement teams focus solely on the external footprint, they ignore the critical interface where the shaft meets the housing, leading to unplanned downtime in the harshest environments.

Matching the Housing to Extreme Industrial Loads

Selecting the right Snl3144 split plummer block housing goes far beyond checking the mounting bolt pattern. The true challenge lies in ensuring the housing can maintain its geometric stability when subjected to massive shock loads and continuous vibration. Our engineering review process verifies that the selected housing variant aligns perfectly with the internal bearing's outer ring profile, preventing localized stress concentrations that typically lead to premature raceway spalling.

Navigating Thermal Expansion and Contamination Risks

In environments like cement kilns or ore crushing plants, the equipment faces severe thermal gradients and heavy particulate contamination. The cast iron construction must accommodate the thermal expansion of the shaft without restricting the internal bearing's ability to float axially. Furthermore, the labyrinth seal interfaces must be precisely machined to keep abrasive dust out while retaining heavy-duty grease . If the seal geometry is even slightly off, the lubricant degrades rapidly, accelerating wear on the rolling elements.

Decoding the Cast Iron Housing Specifications

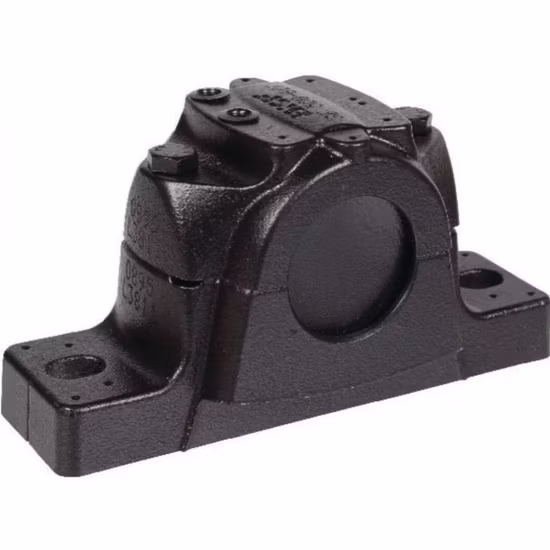

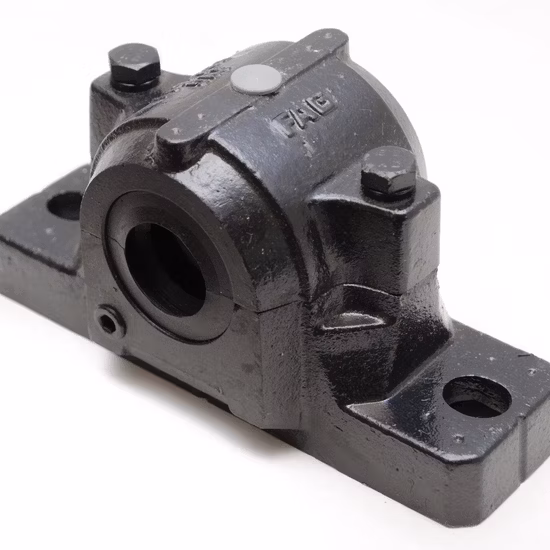

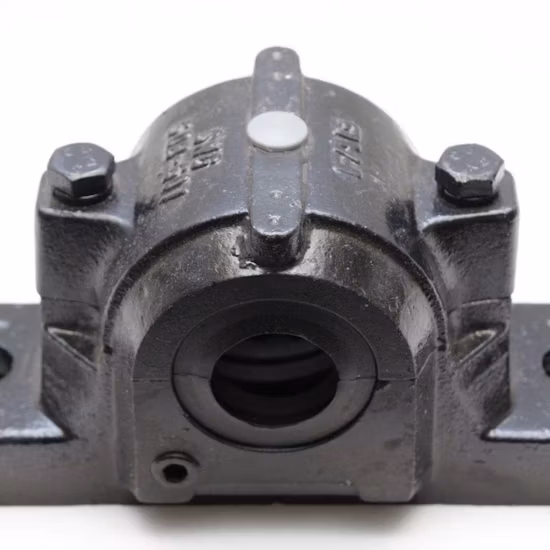

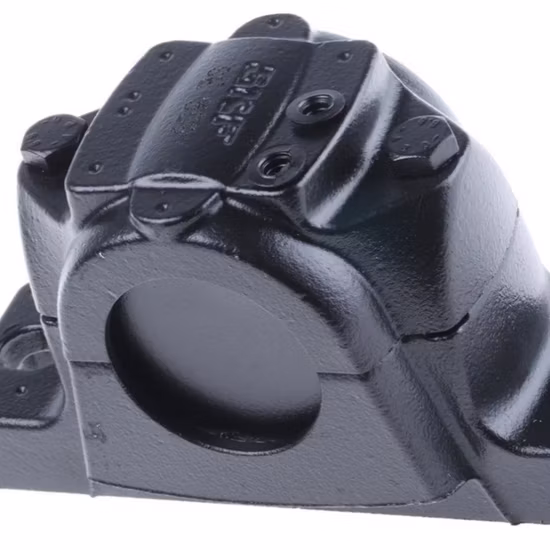

The designation Snl3144 identifies a specific size and split configuration within the plummer block series, designed to accommodate large spherical or cylindrical roller bearings. The cast iron material provides the necessary damping characteristics to absorb vibration from heavy machinery, reducing the transmission of shock loads to the foundation. The split design itself is a critical feature, allowing maintenance crews to inspect, lubricate, or replace the internal bearing and seals without having to dismantle the entire shaft or disconnect adjacent drive components. This modularity drastically reduces maintenance windows during scheduled outages.

The Hidden Costs of Incorrect Housing Selection

Installing a housing with improper center height or mismatched cap tolerances introduces misalignment that the internal bearing cannot compensate for indefinitely. According to ISO 281 guidelines, even minor misalignments drastically reduce the calculated fatigue life of the bearing system . This leads to catastrophic shaft damage, voided equipment warranties, and extended production halts that cost significantly more than the price of a correctly specified, fully traceable housing assembly.

Why Our Technical Verification Matters

We do not just ship boxes; we verify the internal geometry. Because cross-referencing plummer blocks often overlooks the seal type and internal clearance accommodations, our team manually checks these parameters against your application data. We source Snl3144 units through authorized channels, ensuring the cast iron metallurgy meets original equipment standards. When you need to interchange with equivalents like Snl3148 or Snl3152, we confirm that the center height and base dimensions are perfectly compatible, eliminating the risk of field modifications.

Documentation & Authenticity

• Certificate of Conformity validating the cast iron grade and structural integrity of the Snl3144 housing.
• Batch traceability linking the specific housing serial number to the original foundry production run.
• QR verification via official brand apps to confirm the authenticity of the split plummer block.
• Dimensional inspection reports confirming center height and bore tolerances prior to dispatch.
• Country-of-origin documentation ensuring compliance with international procurement standards.

Storage, Handling & Mounting

• Store the Snl3144 housing indoors to prevent surface corrosion on the machined split cap mating surfaces.
• Keep the original packaging intact until installation to protect the precision-machined labyrinth seal grooves.
• Use calibrated torque wrenches when tightening the cap bolts to ensure uniform clamping force on the cast iron.
• Apply the recommended anti-seize compound on the housing base to facilitate future removal during heavy-duty conveyor maintenance.
• Verify the shaft diameter and tolerance before mounting to ensure the correct fit for the internal bearing assembly.

Preparing Your Technical Inquiry

To ensure the selected housing meets your exact operational demands, please provide the specific shaft diameter, expected radial and axial loads, and the operating temperature range. If you are replacing an existing unit, sharing the OEM equipment number or the internal bearing designation allows our engineering team to verify the exact seal and clearance requirements. This data enables us to confirm the optimal configuration and provide an accurate lead time for your project.

Frequently Asked Questions

Q: What is the boundary between choosing a split plummer block versus a solid housing?
A: Split designs like the Snl3144 are preferred when maintenance access is restricted or when the shaft cannot be removed from the machinery. They allow for easier bearing inspection and replacement. Solid housings are typically chosen for extreme shock loads where the structural rigidity of a single-piece cast body is required to prevent cap shift under peak stress.

Q: How do you ensure cross-reference accuracy for these housings?
A: When substituting or upgrading, we do not just match the base designation. We verify the center height, the internal bore tolerance, and the specific seal configuration. This triad alignment ensures the replacement housing fits the existing foundation and correctly supports the internal bearing without introducing misalignment or contamination risks.

Q: What material upgrades are available for high-temperature or corrosive environments?
A: While standard cast iron handles most heavy-duty applications, environments with extreme heat or chemical exposure may require specialized coatings or alternative housing materials. We evaluate the specific thermal limits and corrosive agents present in your facility to recommend surface treatments or material variants that prevent structural degradation and seal failure.

Q: What are the critical alignment checks during installation?
A: Proper installation requires verifying the flatness of the mounting base and using precision levels to align the housing bore with the adjacent shaft supports. The cap bolts must be tightened in a specific sequence to the manufacturer's torque specifications, ensuring the split halves mate perfectly without distorting the internal bore and pinching the bearing outer ring.
