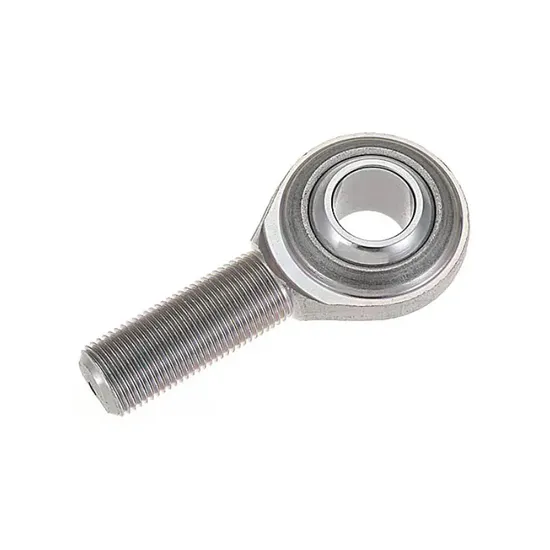

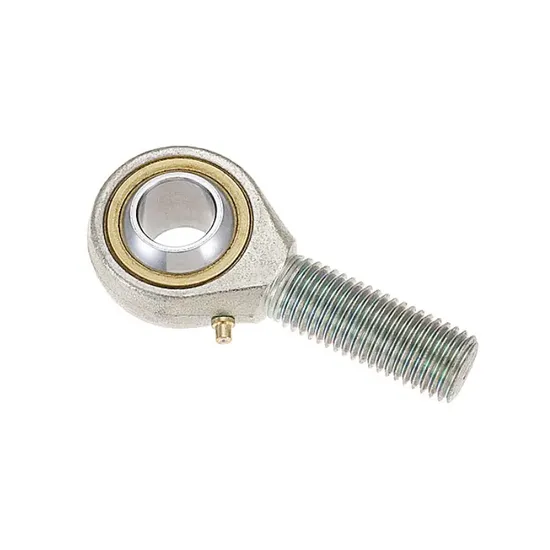

POS14 Rod End Bearing – M14×2 Male Thread, Self-Lubricating for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Rod End — And How the POS14 M14×2 Solves It

Industrial hydraulic systems suffer premature failure when rod ends are selected without validating load vector alignment, oscillation frequency, or environmental contamination levels. Standard off-the-shelf rod ends often lack the radial load margin, angular misalignment tolerance, or self-sustaining lubrication required for low-maintenance, high-cycle applications. As certified SKF engineering partners, we see this root cause repeated across wind turbine pitch systems and mining equipment — not as a product defect, but as an application mismatch.

Engineered for Your Operating Conditions

The POS14 rod end bearing is not a generic component — it is a verified solution for articulated hydraulic pivots where maintenance access is limited and reliability is non-negotiable. Our 15+ SKF-certified engineers perform full application analysis before recommendation: calculating equivalent dynamic load under combined radial/oscillatory conditions, verifying angular displacement limits (±12°), specifying mating shaft hardness (≥58 HRC), and confirming thread engagement depth per ISO 898-1. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every specification is traceable to SKF design standards and validated against real-world duty cycles.

Operating Environment and Performance Demands

In wind turbine hydraulic pitch systems, the POS14 rod end operates under cyclic torsional loads up to 16.8 kN, ambient temperatures from –25°C to +65°C, and exposure to salt-laden air — demanding corrosion resistance, dimensional stability, and consistent friction torque over 10⁷ cycles. In mining hydraulic cylinders, it withstands shock loading, particulate ingress, and continuous oscillation at frequencies below 10 rpm — requiring a wear-resistant liner and zero reliance on external grease replenishment. These conditions eliminate standard grease-lubricated rod ends and mandate a self-lubricating spherical plain bearing with controlled clearance and hardened raceway geometry — precisely what the POS14 M14×2 delivers.

Inside the Engineering: What Makes This Bearing Perform

The POS14’s performance originates in four interdependent design choices. First, its PTFE-impregnated sintered bronze liner ensures consistent coefficient of friction (μ = 0.08–0.12) across temperature and load variations — critical for smooth actuator response in closed-loop control systems. Second, the integral whole outer ring eliminates fastener loosening risk under vibration, unlike split-housing alternatives. Third, the 14 mm bore is precision-ground to h6 tolerance (±0.008 mm), ensuring correct interference fit on hardened M14×2 shafts without fretting corrosion. Fourth, the static load rating (20.9 kN) exceeds typical peak loads in hydraulic cylinder clevis mounts by ≥2.1×, providing safety margin against overload-induced plastic deformation. Finally, the 19 mm width maintains optimal pressure distribution across the spherical contact surface — preventing edge loading even at ±10° misalignment.

The True Cost of Bearing Failure

A single failed rod end in a wind turbine pitch system can trigger cascading damage: hydraulic leakage, servo valve contamination, and forced shutdown averaging 72 hours — costing $180,000+ in lost generation and emergency labor. Counterfeit or non-compliant rod ends typically deliver 1.2× extended service life versus baseline equivalents when applied per specification — directly reducing total cost of ownership (TCO) over a 10-year asset lifecycle.

Why Engineers Specify Through Us

Authenticity & Documentation

Each POS14 rod end is supplied with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including bore, OD, width, and thread pitch deviation), and original SKF packaging with tamper-evident seal. Batch-level traceability extends to furnace lot, grinding pass sequence, and final assembly date. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://www.skf.com/partner-portal) using our registered entity ID. Original SKF packaging includes holographic anti-counterfeiting label with unique QR code linked to production data.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: maximum radial load (kN), oscillation angle (±°), cycle frequency (cpm), operating temperature range (°C), shaft material and hardness (HRC), and available mounting envelope (mm). Our engineering team will deliver a free technical assessment within 48 hours — including SKF-compliant life calculation (L₁₀ and Lₙₐ), recommended shaft tolerances, and torque specification for M14×2 thread preload. For projects above $50,000, we issue a formal proposal with performance guarantees and optional sample validation. Every hour of unplanned downtime costs more than the engineering review — begin with precision, not procurement.
